ATE Originele 2-delige remtrommel (24022030421) voor Nissan

€ 134,31 (incl. btw)

€ 111,00 belastingexcl.

Onderdeelnummer:

ATE 24.0220-3042.1
(240220-30421)

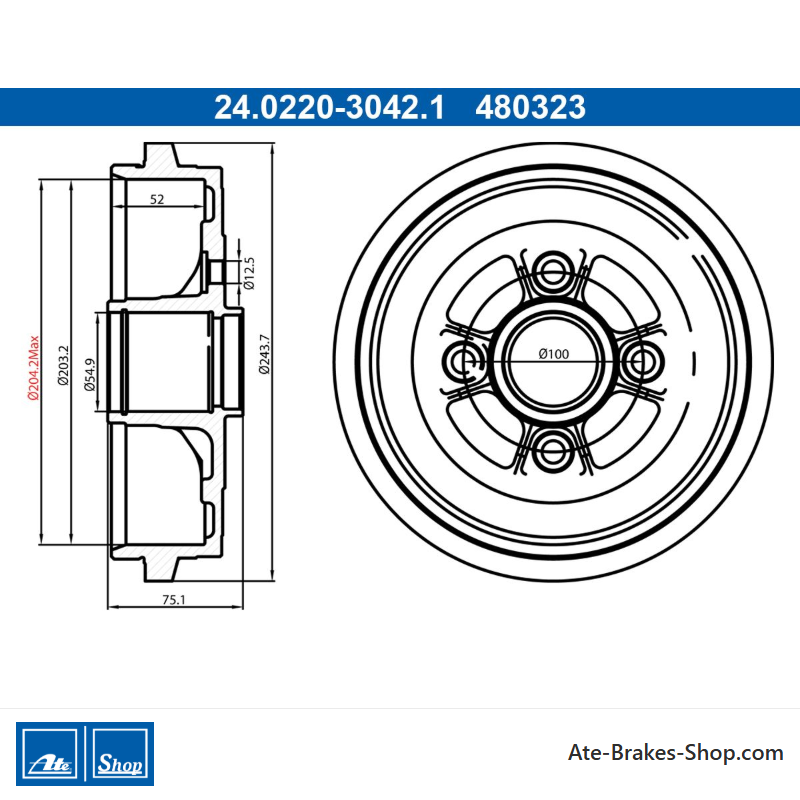

  • Buitendiameter [mm]: 243,7
  • Binnendiameter [mm]: 203,2
  • Draagplaat diameter [mm]: 54,9
  • Aantal boutgaten: 4
  • 2 Stukken Remtrommel
  • Handelsnummer: 480323
  • Ean Code: 4006633469876
  • Gewicht: 12.52kg
Aantal

Specification of ATE 24.0220-3042.1 / 240220-30421 / 24022030421:

OE NumberReference info
NISSAN 43206-1HA0APlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
NISSAN 43206-3VU0APlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
NISSAN MICRA IV (K13K, K13KK)

Fitting Position Rear Axle		2010-05 - 2015-0959801198Hatchback
NISSAN MICRA IV (K13K, K13KK)

Construction Year from 201104

Fitting Position Rear Axle		2011-03 - 2015-1072981198Hatchback
NISSAN NOTE (E12)

Fitting Position Rear Axle		2015-03 - 2016-1256761198MPV
NISSAN NOTE (E12)

Fitting Position Rear Axle		2012-08 - 2016-1259801198MPV
NISSAN NOTE (E12)

Fitting Position Rear Axle		2012-08 -72981198MPV
NISSAN NOTE (E12)

Fitting Position Rear Axle		2013-06 - 2016-1266901461MPV
24.0220-3042.1

Datasheet

Artikelstatus
Bestelbaar
Automerk
Nissan
Handelsnummer
480323
Land van Herkomst
China
Aanvullende informatie
zonder ABS-sensorring
zonder wiellager
zonder wielstijlen
Hoogte
75,1
Buitendiameter [mm]
243,7
Aantal boltgaten
4
Diameter van het schroefgat [mm]
100,0
Diameter van de ondersteuningsplaat [mm]
54,9
Binnendiameter [mm]
203,2
Bordiameter [mm]
12,5
Max. Afborende Dimensie [mm]
204,2
Binnenhoogte van de remtrommel [mm]
52,0

Specifieke referenties

ean13
4006633469876
MPN
2402203042102
