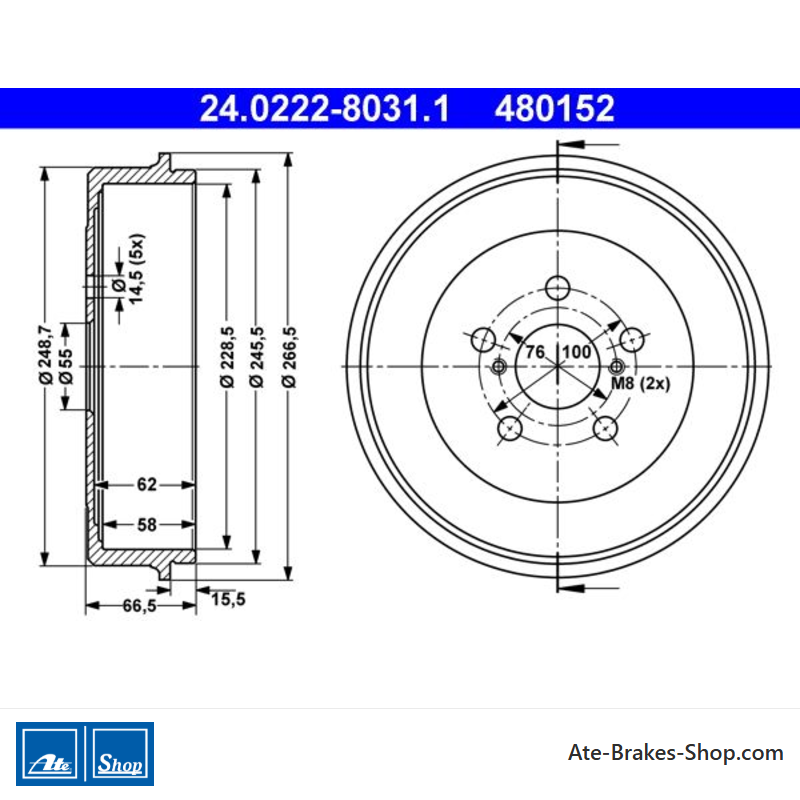

ATE Originele 2-delige remtrommel (24022280311) voor Toyota
€ 166,98
(incl. btw)
€ 138,00 belastingexcl.
Onderdeelnummer:
ATE 24.0222-8031.1
(240222-80311)
- Buitendiameter [mm]: 266,5
- Binnendiameter [mm]: 229
- Draagplaatdiameter [mm]: 55,0
- Aantal bolt holes: 5
- 2 Stukken Remtrommel
- Handelsnummer: 480152
- Ean Code: 4006633082167
- Gewicht: 10.92kg
Specification of ATE 24.0222-8031.1 / 240222-80311 / 24022280311:
| OE Number | Reference info |
| TOYOTA 42431-05020 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 42431-20440 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA AVENSIS (_T22_) Construction Year to 200009 Fitting Position Rear Axle | 1997-09 - 2000-10 | 74 | 101 | 1587 | Saloon |
| TOYOTA AVENSIS (_T22_) Fitting Position Rear Axle | 1997-10 - 2000-06 | 81 | 110 | 1587 | Saloon |
| TOYOTA AVENSIS (_T22_) Construction Year to 200009 Fitting Position Rear Axle | 1997-09 - 2000-10 | 81 | 110 | 1762 | Saloon |
| TOYOTA AVENSIS (_T22_) Construction Year to 200009 Fitting Position Rear Axle | 1997-09 - 2000-10 | 94 | 128 | 1998 | Saloon |
| TOYOTA AVENSIS (_T22_) Fitting Position Rear Axle | 1997-09 - 2003-02 | 66 | 90 | 1974 | Saloon |
| TOYOTA AVENSIS (_T22_) Fitting Position Rear Axle | 1999-10 - 2003-02 | 81 | 110 | 1995 | Saloon |
| TOYOTA AVENSIS (_T22_) Fitting Position Rear Axle | 2002-09 - 2003-02 | 85 | 116 | 1995 | Saloon |
| TOYOTA AVENSIS Liftback (_T22_) Construction Year to 200009 Fitting Position Rear Axle | 1997-09 - 2000-10 | 74 | 101 | 1587 | Hatchback |
| TOYOTA AVENSIS Liftback (_T22_) Construction Year to 200009 Fitting Position Rear Axle | 1997-09 - 2000-10 | 81 | 110 | 1587 | Hatchback |
| TOYOTA AVENSIS Liftback (_T22_) Construction Year to 200009 Fitting Position Rear Axle | 1997-09 - 2000-10 | 81 | 110 | 1762 | Hatchback |
| TOYOTA AVENSIS Liftback (_T22_) Construction Year to 200009 Fitting Position Rear Axle | 1997-09 - 2000-10 | 94 | 128 | 1998 | Hatchback |
| TOYOTA AVENSIS Liftback (_T22_) Fitting Position Rear Axle | 1997-09 - 2003-02 | 66 | 90 | 1974 | Hatchback |
| TOYOTA AVENSIS Liftback (_T22_) Fitting Position Rear Axle | 1999-10 - 2003-02 | 81 | 110 | 1995 | Hatchback |
| TOYOTA AVENSIS Estate (_T22_) Construction Year to 200009 Fitting Position Rear Axle | 1997-09 - 2000-10 | 74 | 101 | 1587 | Estate |
| TOYOTA AVENSIS Estate (_T22_) Construction Year to 200009 Fitting Position Rear Axle | 1997-09 - 2000-10 | 81 | 110 | 1587 | Estate |
| TOYOTA AVENSIS Estate (_T22_) Construction Year to 200009 Fitting Position Rear Axle | 1997-09 - 2000-10 | 81 | 110 | 1762 | Estate |
| TOYOTA AVENSIS Estate (_T22_) Construction Year to 200009 Fitting Position Rear Axle | 1997-09 - 2000-10 | 94 | 128 | 1998 | Estate |
| TOYOTA AVENSIS Estate (_T22_) Fitting Position Rear Axle | 1997-09 - 2003-02 | 66 | 90 | 1974 | Estate |
| TOYOTA AVENSIS Estate (_T22_) Fitting Position Rear Axle | 1999-10 - 2003-02 | 81 | 110 | 1995 | Estate |
24.0222-8031.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Toyota
- Handelsnummer
- 480152
- Land van Herkomst
- Italië
- Hoogte
- 66,5
- Buitendiameter [mm]
- 266,5
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 100,0
- Diameter van de ondersteuningsplaat [mm]
- 55,0
- Binnendiameter [mm]
- 229
- Bordiameter [mm]
- 14,5
- Max. Afborende Dimensie [mm]
- 229,6
- Binnenhoogte van de remtrommel [mm]
- 58,0
Specifieke referenties
- ean13
- 4006633082167
- MPN
- 2402228031102
ATE 24.0222-8031.1
(240222-80311)
- Buitendiameter [mm]: 266,5
- Binnendiameter [mm]: 229
- Draagplaatdiameter [mm]: 55,0
- Aantal bolt holes: 5
- 2 Stukken Remtrommel
- Handelsnummer: 480152
