ATE Originele 2-delige remtrommel (24022280481) voor Audi, Seat, Skoda, Volkswagen (VW)
€ 123,42
(incl. btw)
€ 102,00 belastingexcl.
Onderdeelnummer:
ATE 24.0222-8048.1
(240222-80481)

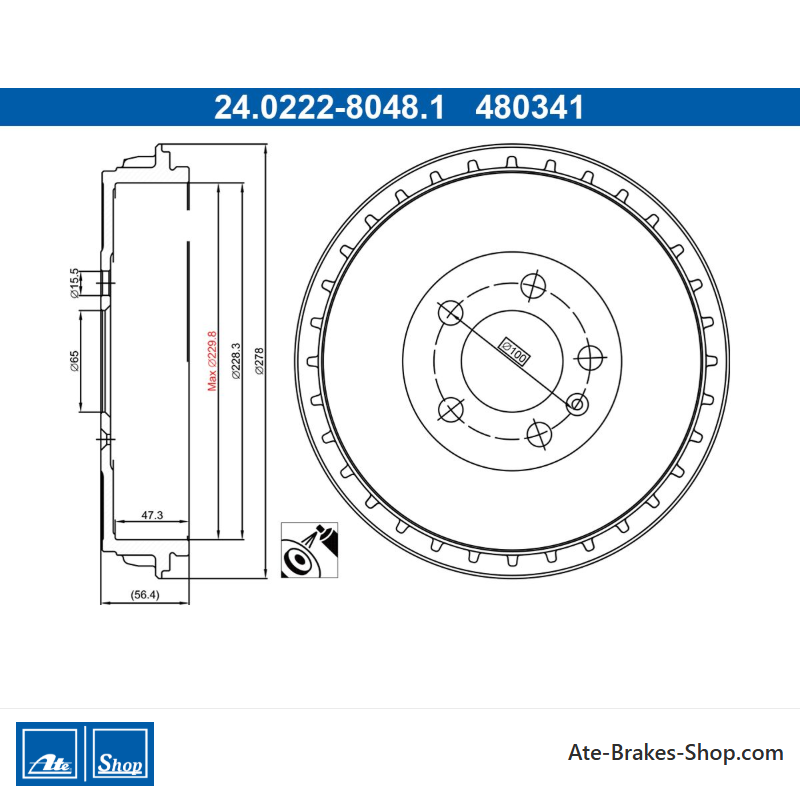

- Buitendiameter [mm]: 278,0
- Binnendiameter [mm]: 228,3
- Draagplaatdiameter [mm]: 65,0
- Aantal bolt holes: 5
- 2 Stukken Remtrommel
- Handelsnummer: 480341
- Ean Code: 4006633507349
- Gewicht: 10.96kg
Specification of ATE 24.0222-8048.1 / 240222-80481 / 24022280481:
| OE Number | Reference info |
| SEAT 2Q0 609 617 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 2Q0609617A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SKODA 2Q0 609 617 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SKODA 2Q0609617A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 2Q0 609 617 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 2Q0609617A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| AUDI A1 Allstreet (GBH) Fitting Position Rear Axle for PR number 1KA | 2022-07 - | 70 | 95 | 999 | Hatchback |
| AUDI A1 Allstreet (GBH) Fitting Position Rear Axle for PR number 1KA | 2022-07 - | 81 | 110 | 999 | Hatchback |
| AUDI A1 Allstreet (GBH) Fitting Position Rear Axle for PR number 1KA | 2024-03 - | 85 | 116 | 999 | Hatchback |
| AUDI A1 Allstreet (GBH) Fitting Position Rear Axle for PR number 1KA | 2022-07 - | 110 | 150 | 1498 | Hatchback |
| AUDI A1 City Carver (GBH) Fitting Position Rear Axle for PR number 1KA | 2019-07 - 2022-06 | 70 | 95 | 999 | Hatchback |
| AUDI A1 City Carver (GBH) Fitting Position Rear Axle for PR number 1KA | 2020-09 - 2022-06 | 81 | 110 | 999 | Hatchback |
| AUDI A1 City Carver (GBH) Fitting Position Rear Axle for PR number 1KA | 2019-07 - 2022-06 | 85 | 116 | 999 | Hatchback |
| AUDI A1 City Carver (GBH) Fitting Position Rear Axle for PR number 1KA | 2019-07 - 2022-06 | 110 | 150 | 1498 | Hatchback |
| AUDI A1 Sportback (GBA) Fitting Position Rear Axle for PR number 1KA | 2018-11 - | 70 | 95 | 999 | Hatchback |
| AUDI A1 Sportback (GBA) Fitting Position Rear Axle for PR number 1KA | 2020-09 - | 81 | 110 | 999 | Hatchback |
| AUDI A1 Sportback (GBA) Fitting Position Rear Axle for PR number 1KA | 2018-07 - | 85 | 116 | 999 | Hatchback |
| AUDI A1 Sportback (GBA) Fitting Position Rear Axle for PR number 1KA | 2018-09 - | 110 | 150 | 1498 | Hatchback |
| AUDI A1 Sportback (GBA) Fitting Position Rear Axle for PR number 1KA | 2018-09 - | 147 | 200 | 1984 | Hatchback |
| AUDI A1 Sportback (GBA) Fitting Position Rear Axle for PR number 1KA | 2021-04 - | 152 | 207 | 1984 | Hatchback |
| SEAT ARONA (KJ7, KJP) Fitting Position Rear Axle for PR number 1KA | 2018-11 - | 66 | 90 | 999 | SUV |
| SEAT ARONA (KJ7, KJP) Fitting Position Rear Axle for PR number 1KA | 2017-07 - | 70 | 95 | 999 | SUV |
| SEAT ARONA (KJ7, KJP) Fitting Position Rear Axle for PR number 1KA | 2020-06 - | 81 | 110 | 999 | SUV |
| SEAT ARONA (KJ7, KJP) Fitting Position Rear Axle for PR number 1KA | 2017-07 - | 85 | 116 | 999 | SUV |
| SEAT ARONA (KJ7, KJP) Fitting Position Rear Axle for PR number 1KA | 2017-07 - | 110 | 150 | 1498 | SUV |
| SEAT ARONA (KJ7, KJP) Fitting Position Rear Axle for PR number 1KA | 2017-07 - | 81 | 110 | 1598 | SUV |
| SEAT ARONA (KJ7, KJP) Fitting Position Rear Axle for PR number 1KA | 2017-11 - | 70 | 95 | 1598 | SUV |
| SEAT ARONA (KJ7, KJP) Fitting Position Rear Axle for PR number 1KA | 2017-07 - | 85 | 115 | 1598 | SUV |
| SEAT IBIZA V (KJ1, KJG) Fitting Position Rear Axle for PR number 1KA | 2017-07 - | 48 | 65 | 999 | Hatchback |
| SEAT IBIZA V (KJ1, KJG) Fitting Position Rear Axle for PR number 1KA | 2017-01 - | 55 | 75 | 999 | Hatchback |
| SEAT IBIZA V (KJ1, KJG) Fitting Position Rear Axle for PR number 1KA | 2018-07 - | 59 | 80 | 999 | Hatchback |
| SEAT IBIZA V (KJ1, KJG) Fitting Position Rear Axle for PR number 1KA | 2017-11 - | 66 | 90 | 999 | Hatchback |
| SEAT IBIZA V (KJ1, KJG) Fitting Position Rear Axle for PR number 1KA | 2017-01 - | 70 | 95 | 999 | Hatchback |
| SEAT IBIZA V (KJ1, KJG) Fitting Position Rear Axle for PR number 1KA | 2020-06 - | 81 | 110 | 999 | Hatchback |
| SEAT IBIZA V (KJ1, KJG) Fitting Position Rear Axle for PR number 1KA | 2017-01 - | 85 | 116 | 999 | Hatchback |
| SEAT IBIZA V (KJ1, KJG) Fitting Position Rear Axle for PR number 1KA | 2017-07 - | 110 | 150 | 1498 | Hatchback |
| SEAT IBIZA V (KJ1, KJG) Fitting Position Rear Axle for PR number 1KA | 2017-05 - | 81 | 110 | 1598 | Hatchback |
| SEAT IBIZA V (KJ1, KJG) Fitting Position Rear Axle for PR number 1KA | 2017-11 - | 59 | 80 | 1598 | Hatchback |
| SEAT IBIZA V (KJ1, KJG) Fitting Position Rear Axle for PR number 1KA | 2017-09 - | 70 | 95 | 1598 | Hatchback |
| SEAT IBIZA V (KJ1, KJG) Fitting Position Rear Axle for PR number 1KA | 2017-12 - | 85 | 115 | 1598 | Hatchback |
| SKODA FABIA IV (PJ3) Fitting Position Rear Axle for PR number 1KA | 2021-08 - | 48 | 65 | 999 | Hatchback |
| SKODA FABIA IV (PJ3) Fitting Position Rear Axle for PR number 1KA | 2021-06 - | 59 | 80 | 999 | Hatchback |
| SKODA FABIA IV (PJ3) Fitting Position Rear Axle for PR number 1KA | 2021-06 - | 70 | 95 | 999 | Hatchback |
| SKODA FABIA IV (PJ3) Fitting Position Rear Axle for PR number 1KA | 2021-06 - | 81 | 110 | 999 | Hatchback |
| SKODA FABIA IV (PJ3) Fitting Position Rear Axle for PR number 1KA | 2024-01 - | 85 | 116 | 999 | Hatchback |
| SKODA FABIA IV (PJ3) Fitting Position Rear Axle for PR number 1KA | 2021-11 - | 110 | 150 | 1498 | Hatchback |
| SKODA KAMIQ (NW4) Fitting Position Rear Axle for PR number 1KA | 2019-11 - | 66 | 90 | 999 | SUV |
| SKODA KAMIQ (NW4) Fitting Position Rear Axle for PR number 1KA | 2019-07 - | 70 | 95 | 999 | SUV |
| SKODA KAMIQ (NW4) Fitting Position Rear Axle for PR number 1KA | 2020-08 - | 81 | 110 | 999 | SUV |
| SKODA KAMIQ (NW4) Fitting Position Rear Axle for PR number 1KA | 2019-07 - | 85 | 116 | 999 | SUV |
| SKODA KAMIQ (NW4) Fitting Position Rear Axle for PR number 1KA | 2019-07 - | 110 | 150 | 1498 | SUV |
| SKODA KAMIQ (NW4) Fitting Position Rear Axle for PR number 1KA | 2019-09 - | 70 | 95 | 1598 | SUV |
| SKODA KAMIQ (NW4) Fitting Position Rear Axle for PR number 1KA | 2019-07 - | 85 | 116 | 1598 | SUV |
| SKODA SCALA (NW1) Fitting Position Rear Axle for PR number 1KA | 2019-11 - | 66 | 90 | 999 | Hatchback |
| SKODA SCALA (NW1) Fitting Position Rear Axle for PR number 1KA | 2019-02 - | 70 | 95 | 999 | Hatchback |
| SKODA SCALA (NW1) Fitting Position Rear Axle for PR number 1KA | 2020-08 - | 81 | 110 | 999 | Hatchback |
| SKODA SCALA (NW1) Fitting Position Rear Axle for PR number 1KA | 2019-02 - | 85 | 116 | 999 | Hatchback |
| SKODA SCALA (NW1) Fitting Position Rear Axle for PR number 1KA | 2019-02 - | 110 | 150 | 1498 | Hatchback |
| SKODA SCALA (NW1) Fitting Position Rear Axle for PR number 1KA | 2019-02 - | 85 | 116 | 1598 | Hatchback |
| SKODA SCALA (NW1) Fitting Position Rear Axle for PR number 1KA | 2019-09 - | 70 | 95 | 1598 | Hatchback |
| VW POLO VI (AW1, BZ1, AE1, BZ3) Construction Year from 201709 for PR number 1KA Fitting Position Rear Axle | 2017-08 - 2020-02 | 48 | 65 | 999 | Hatchback |
| VW POLO VI (AW1, BZ1, AE1, BZ3) Construction Year from 201709 for PR number 1KA Fitting Position Rear Axle | 2017-06 - 2021-08 | 55 | 75 | 999 | Hatchback |
| VW POLO VI (AW1, BZ1, AE1, BZ3) for PR number 1KA Fitting Position Rear Axle | 2018-09 - | 59 | 80 | 999 | Hatchback |
| VW POLO VI (AW1, BZ1, AE1, BZ3) for PR number 1KA Fitting Position Rear Axle | 2017-09 - | 66 | 90 | 999 | Hatchback |
| VW POLO VI (AW1, BZ1, AE1, BZ3) Construction Year from 201709 for PR number 1KA Fitting Position Rear Axle | 2017-06 - | 70 | 95 | 999 | Hatchback |
| VW POLO VI (AW1, BZ1, AE1, BZ3) for PR number 1KA Fitting Position Rear Axle | 2020-07 - | 81 | 110 | 999 | Hatchback |
| VW POLO VI (AW1, BZ1, AE1, BZ3) for PR number 1KA Fitting Position Rear Axle | 2017-09 - | 85 | 116 | 999 | Hatchback |
| VW POLO VI (AW1, BZ1, AE1, BZ3) for PR number 1KA Fitting Position Rear Axle | 2018-10 - 2021-08 | 110 | 150 | 1498 | Hatchback |
| VW POLO VI (AW1, BZ1, AE1, BZ3) for PR number 1KA Fitting Position Rear Axle | 2017-11 - | 147 | 200 | 1984 | Hatchback |
| VW POLO VI (AW1, BZ1, AE1, BZ3) for PR number 1KA Fitting Position Rear Axle | 2017-11 - 2019-07 | 59 | 80 | 1598 | Hatchback |
| VW POLO VI (AW1, BZ1, AE1, BZ3) for PR number 1KA Fitting Position Rear Axle | 2017-11 - 2021-02 | 70 | 95 | 1598 | Hatchback |
| VW TAIGO (CS1) Fitting Position Rear Axle for PR number 1KA | 2021-09 - | 70 | 95 | 999 | SUV |
| VW TAIGO (CS1) Fitting Position Rear Axle for PR number 1KA | 2021-09 - 2024-03 | 81 | 110 | 999 | SUV |
| VW TAIGO (CS1) Fitting Position Rear Axle for PR number 1KA | 2021-11 - | 85 | 116 | 999 | SUV |
| VW TAIGO (CS1) Fitting Position Rear Axle for PR number 1KA | 2021-09 - | 110 | 150 | 1498 | SUV |
| VW T-CROSS (C11, D31) Fitting Position Rear Axle for PR number 1KA | 2018-12 - | 70 | 95 | 999 | SUV |
| VW T-CROSS (C11, D31) Fitting Position Rear Axle for PR number 1KA | 2020-06 - | 81 | 110 | 999 | SUV |
| VW T-CROSS (C11, D31) Fitting Position Rear Axle for PR number 1KA | 2018-12 - | 85 | 116 | 999 | SUV |
| VW T-CROSS (C11, D31) Fitting Position Rear Axle for PR number 1KA | 2020-01 - | 110 | 150 | 1498 | SUV |
| VW T-CROSS (C11, D31) Fitting Position Rear Axle for PR number 1KA | 2018-12 - | 70 | 95 | 1598 | SUV |
24.0222-8048.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Audi
Skoda
Volkswagen (VW)
Zetel - Handelsnummer
- 480341
- Land van Herkomst
- China
- Hoogte
- 56,4
- Buitendiameter [mm]
- 278,0
- Oppervlakte
- geschilderd
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 100,0
- Diameter van de ondersteuningsplaat [mm]
- 65,0
- Binnendiameter [mm]
- 228,3
- Bordiameter [mm]
- 15,6
- Max. Afborende Dimensie [mm]
- 229,8
- Binnenhoogte van de remtrommel [mm]
- 47,3
Specifieke referenties
- ean13
- 4006633507349
- MPN
- 2402228048102
ATE 24.0222-8048.1
(240222-80481)
- Buitendiameter [mm]: 278,0
- Binnendiameter [mm]: 228,3
- Draagplaatdiameter [mm]: 65,0
- Aantal bolt holes: 5
- 2 Stukken Remtrommel
- Handelsnummer: 480341
