ATE Originele 2-delige remtrommel (24022290061) voor Nissan
search
  • ATE Originele 2-delige remtrommel (24022290061) voor Nissan
  • ATE Originele 2-delige remtrommel (24022290061) voor Nissan

ATE Originele 2-delige remtrommel (24022290061) voor Nissan

€ 94,38 (incl. btw)

€ 78,00 belastingexcl.

Onderdeelnummer:

ATE 24.0222-9006.1
(240222-90061)

  • Buitendiameter [mm]: 265,0
  • Binnendiameter [mm]: 228,8
  • Draagplaat diameter [mm]: 68,0
  • Aantal boutgaten: 4
  • 2 Stukken Remtrommel
  • Handelsnummer: 480352
  • Ean Code: 4006633509879
  • Gewicht: 11.77kg
Aantal

Specification of ATE 24.0222-9006.1 / 240222-90061 / 24022290061:

OE Number Reference info
NISSAN 43206-JX00A Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
NISSAN 43206-3LG0A Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

Model Model Year kW HP CC Type
NISSAN NV200 / EVALIA Bus

Fitting Position Rear Axle		 2010-07 - 63 86 1461 Bus
NISSAN NV200 / EVALIA Bus

Fitting Position Rear Axle		 2011-04 - 66 90 1461 Bus
NISSAN NV200 / EVALIA Bus

Fitting Position Rear Axle		 2010-07 - 81 110 1598 Bus
NISSAN NV200 / EVALIA Bus

Fitting Position Rear Axle		 2011-04 - 81 110 1461 Bus
NISSAN NV200 Van

Fitting Position Rear Axle		 2010-02 - 81 110 1598 Van
NISSAN NV200 Van

Fitting Position Rear Axle		 2010-02 - 63 86 1461 Van
NISSAN NV200 Van

Fitting Position Rear Axle		 2011-04 - 66 90 1461 Van
NISSAN NV200 Van

Fitting Position Rear Axle		 2010-07 - 2013-10 78 106 1461 Van
NISSAN NV200 Van

Fitting Position Rear Axle		 2011-04 - 81 110 1461 Van

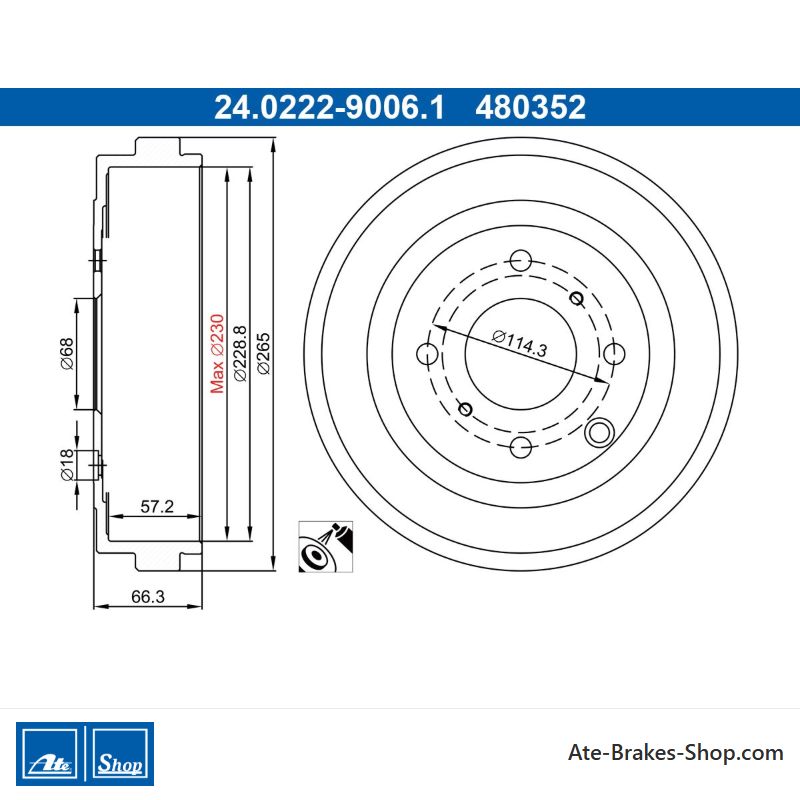

24.0222-9006.1

Datasheet

Artikelstatus
Bestelbaar
Automerk
Nissan
Handelsnummer
480352
Land van Herkomst
China
Hoogte
66,3
Buitendiameter [mm]
265,0
Oppervlakte
geschilderd
Aantal boltgaten
4
Diameter van het schroefgat [mm]
114,3
Diameter van de ondersteuningsplaat [mm]
68,0
Binnendiameter [mm]
228,8
Bordiameter [mm]
12,8
Max. Afborende Dimensie [mm]
230,0
Binnenhoogte van de remtrommel [mm]
57,2

Specifieke referenties

ean13
4006633509879
MPN
2402229006102
