ATE Originele 2-delige remtrommel (24022297012) voor Citroën, Peugeot
€ 254,10
(incl. btw)
€ 210,00 belastingexcl.
Onderdeelnummer:
ATE 24.0222-9701.2
(240222-97012)
- Buitendiameter [mm]: 273,0
- Binnendiameter [mm]: 228,6
- Draagplaat diameter [mm]: 62
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480219
- Ean Code: 4006633407557
- Gewicht: 16.52kg

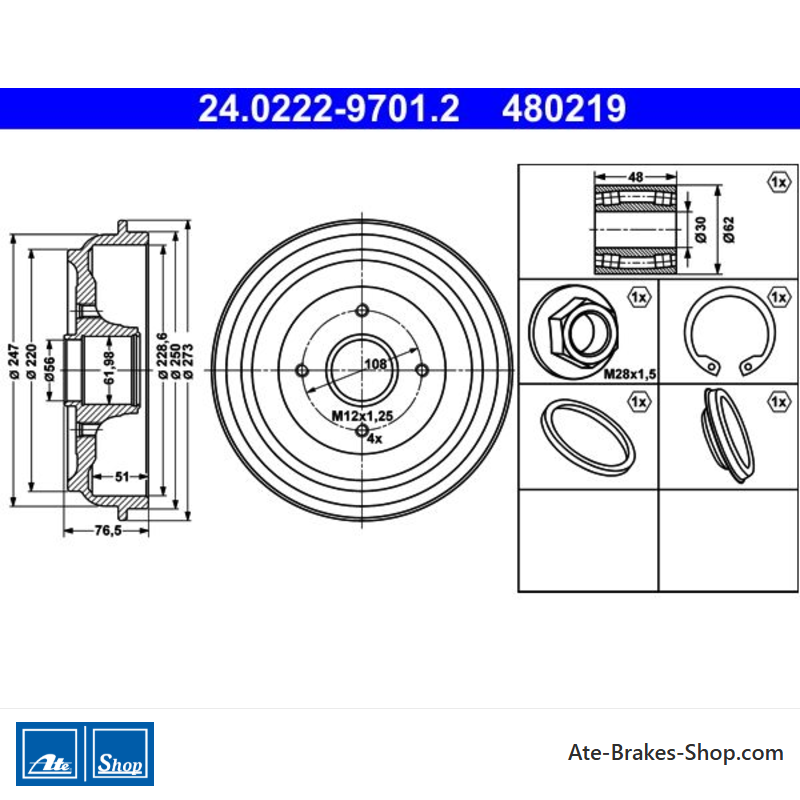

Specification of ATE 24.0222-9701.2 / 240222-97012 / 24022297012:
| OE Number | Reference info |
| CITROËN 4247 50 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 424750 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 4247 50 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| PEUGEOT 424750 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN C3 II (SC_) Fitting Position Rear Axle | 2014-10 - 2016-09 | 81 | 110 | 1199 | Hatchback |
| CITROËN C3 II (SC_) Fitting Position Rear Axle | 2009-11 - 2016-09 | 70 | 95 | 1397 | Hatchback |
| CITROËN C3 II (SC_) Fitting Position Rear Axle | 2013-06 - 2016-09 | 70 | 95 | 1397 | Hatchback |
| CITROËN C3 II (SC_) Fitting Position Rear Axle | 2009-11 - 2016-09 | 72 | 98 | 1397 | Hatchback |
| CITROËN C3 II (SC_) Fitting Position Rear Axle | 2015-04 - 2016-09 | 55 | 75 | 1560 | Hatchback |
| CITROËN C3 II (SC_) Fitting Position Rear Axle | 2014-07 - 2016-09 | 73 | 99 | 1560 | Hatchback |
| CITROËN C3 III (SX) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2016-07 - | 50 | 68 | 1199 | Hatchback |
| CITROËN C3 III (SX) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2016-07 - | 60 | 82 | 1199 | Hatchback |
| CITROËN C3 III (SX) Fitting Position Rear Axle Inner brake drum diameter [inch] 9 Inch | 2016-07 - | 60 | 82 | 1199 | Hatchback |
| CITROËN C3 III (SX) Fitting Position Rear Axle Inner brake drum diameter [inch] 9 Inch | 2018-05 - | 61 | 83 | 1199 | Hatchback |
| CITROËN C3 III (SX) Fitting Position Rear Axle Inner brake drum diameter [inch] 9 Inch | 2018-05 - | 61 | 83 | 1199 | Hatchback |
| CITROËN C3 III (SX) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2016-07 - | 81 | 110 | 1199 | Hatchback |
| CITROËN C3 III (SX) Fitting Position Rear Axle Inner brake drum diameter [inch] 9 Inch | 2017-02 - | 85 | 116 | 1587 | Hatchback |
| CITROËN C3 III (SX) Fitting Position Rear Axle Inner brake drum diameter [inch] 9 Inch | 2018-05 - | 75 | 102 | 1499 | Hatchback |
| CITROËN C3 III (SX) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2016-07 - 2018-05 | 55 | 75 | 1560 | Hatchback |
| CITROËN C3 III (SX) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2016-07 - 2018-05 | 73 | 99 | 1560 | Hatchback |
| CITROËN C-ELYSEE (DD_) Fitting Position Rear Axle Inner brake drum diameter [inch] 9 Inch | 2012-11 - 2017-01 | 53 | 72 | 1199 | Saloon |
| CITROËN C-ELYSEE (DD_) Fitting Position Rear Axle Inner brake drum diameter [inch] 9 Inch | 2014-12 - | 60 | 82 | 1199 | Saloon |
| CITROËN C-ELYSEE (DD_) Fitting Position Rear Axle Inner brake drum diameter [inch] 9 Inch | 2018-02 - | 61 | 83 | 1199 | Saloon |
| CITROËN C-ELYSEE (DD_) Fitting Position Rear Axle Inner brake drum diameter [inch] 9 Inch | 2012-11 - | 85 | 115 | 1587 | Saloon |
| CITROËN C-ELYSEE (DD_) Fitting Position Rear Axle Inner brake drum diameter [inch] 9 Inch | 2012-11 - | 68 | 92 | 1560 | Saloon |
| CITROËN C-ELYSEE (DD_) Fitting Position Rear Axle Inner brake drum diameter [inch] 9 Inch | 2018-05 - | 75 | 102 | 1499 | Saloon |
| CITROËN C-ELYSEE (DD_) Fitting Position Rear Axle Inner brake drum diameter [inch] 9 Inch | 2014-11 - 2016-12 | 73 | 99 | 1560 | Saloon |
| CITROËN DS3 (SA_) Fitting Position Rear Axle | 2014-10 - 2015-03 | 81 | 110 | 1199 | Hatchback |
| CITROËN DS3 (SA_) Fitting Position Rear Axle | 2010-04 - 2015-07 | 70 | 95 | 1397 | Hatchback |
| CITROËN DS3 (SA_) Fitting Position Rear Axle | 2012-08 - 2015-07 | 70 | 95 | 1397 | Hatchback |
| CITROËN DS3 (SA_) Construction Year from 201004 Fitting Position Rear Axle | 2009-11 - 2015-07 | 72 | 98 | 1397 | Hatchback |
| CITROËN DS3 (SA_) Fitting Position Rear Axle | 2015-03 - 2015-07 | 55 | 75 | 1560 | Hatchback |
| CITROËN DS3 (SA_) Fitting Position Rear Axle | 2009-11 - 2015-07 | 68 | 92 | 1560 | Hatchback |
| CITROËN DS3 Convertible Fitting Position Rear Axle | 2013-01 - 2015-07 | 68 | 92 | 1560 | Convertible |
| CITROËN DS3 Convertible Fitting Position Rear Axle | 2013-10 - 2015-07 | 85 | 115 | 1560 | Convertible |
| CITROËN C3 II Hatchback Van (SC_) Fitting Position Rear Axle | 2015-03 - 2016-09 | 55 | 75 | 1560 | Hatchback Van |
| CITROËN C3 III Van (SX_, SY_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2016-07 - | 60 | 82 | 1199 | Hatchback Van |
| CITROËN C3 III Van (SX_, SY_) Fitting Position Rear Axle Inner brake drum diameter [inch] 9 Inch | 2019-03 - | 61 | 83 | 1199 | Hatchback Van |
| CITROËN C3 III Van (SX_, SY_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2019-03 - | 81 | 110 | 1199 | Hatchback Van |
| CITROËN C3 III Van (SX_, SY_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2019-03 - | 73 | 99 | 1560 | Hatchback Van |
| CITROËN C3 III Van (SX_, SY_) Fitting Position Rear Axle Inner brake drum diameter [inch] 9 Inch | 2019-03 - | 75 | 102 | 1499 | Hatchback Van |
| CITROËN C3 III Van (SX_, SY_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2019-03 - | 55 | 75 | 1560 | Hatchback Van |
| DS DS 3 (SA_) Fitting Position Rear Axle | 2015-04 - 2019-07 | 60 | 82 | 1199 | Hatchback |
| DS DS 3 (SA_) Fitting Position Rear Axle | 2015-04 - 2019-07 | 81 | 110 | 1199 | Hatchback |
| DS DS 3 (SA_) Fitting Position Rear Axle | 2015-09 - 2019-07 | 96 | 130 | 1199 | Hatchback |
| DS DS 3 (SA_) Fitting Position Rear Axle | 2015-07 - 2019-07 | 120 | 163 | 1598 | Hatchback |
| DS DS 3 (SA_) Fitting Position Rear Axle | 2015-07 - 2019-07 | 121 | 165 | 1598 | Hatchback |
| DS DS 3 (SA_) Fitting Position Rear Axle | 2015-09 - 2019-07 | 153 | 208 | 1598 | Hatchback |
| DS DS 3 (SA_) Fitting Position Rear Axle | 2015-07 - 2016-12 | 50 | 68 | 1398 | Hatchback |
| DS DS 3 (SA_) Fitting Position Rear Axle | 2015-07 - 2019-07 | 55 | 75 | 1560 | Hatchback |
| DS DS 3 (SA_) Fitting Position Rear Axle | 2015-04 - 2019-07 | 73 | 99 | 1560 | Hatchback |
| DS DS 3 (SA_) Fitting Position Rear Axle | 2015-07 - 2019-07 | 88 | 120 | 1560 | Hatchback |
| DS DS 3 Convertible (SB_) Fitting Position Rear Axle | 2015-07 - 2019-07 | 60 | 82 | 1199 | Convertible |
| DS DS 3 Convertible (SB_) Fitting Position Rear Axle | 2015-07 - 2019-07 | 81 | 110 | 1199 | Convertible |
| DS DS 3 Convertible (SB_) Fitting Position Rear Axle | 2015-09 - 2019-07 | 96 | 130 | 1199 | Convertible |
| DS DS 3 Convertible (SB_) Fitting Position Rear Axle | 2015-07 - 2019-07 | 121 | 165 | 1598 | Convertible |
| DS DS 3 Convertible (SB_) Fitting Position Rear Axle | 2015-09 - 2019-07 | 153 | 208 | 1598 | Convertible |
| DS DS 3 Convertible (SB_) Fitting Position Rear Axle | 2015-07 - 2019-07 | 73 | 99 | 1560 | Convertible |
| DS DS 3 Convertible (SB_) Fitting Position Rear Axle | 2015-07 - 2019-07 | 88 | 120 | 1560 | Convertible |
| PEUGEOT 207 SW (WK_) Fitting Position Rear Axle | 2007-06 - 2012-12 | 54 | 73 | 1360 | Estate |
| PEUGEOT 207 SW (WK_) Fitting Position Rear Axle | 2007-08 - 2012-12 | 54 | 73 | 1360 | Estate |
| PEUGEOT 207 SW (WK_) Construction Year to 201307 Fitting Position Rear Axle | 2007-06 - 2013-10 | 70 | 95 | 1397 | Estate |
| PEUGEOT 207 SW (WK_) Fitting Position Rear Axle | 2009-11 - 2012-12 | 72 | 98 | 1397 | Estate |
| PEUGEOT 207 SW (WK_) Fitting Position Rear Axle | 2007-06 - 2012-12 | 66 | 90 | 1560 | Estate |
| PEUGEOT 207 SW (WK_) Fitting Position Rear Axle | 2009-11 - 2013-12 | 68 | 92 | 1560 | Estate |
| PEUGEOT 207/207+ (WA_, WC_) Construction Year to 201206 Fitting Position Rear Axle | 2006-04 - 2013-10 | 54 | 73 | 1360 | Hatchback |
| PEUGEOT 207/207+ (WA_, WC_) Fitting Position Rear Axle | 2007-08 - 2013-12 | 54 | 73 | 1360 | Hatchback |
| PEUGEOT 207/207+ (WA_, WC_) Construction Year to 201206 Fitting Position Rear Axle | 2008-08 - 2015-12 | 55 | 75 | 1360 | Hatchback |
| PEUGEOT 207/207+ (WA_, WC_) Construction Year to 201206 Fitting Position Rear Axle | 2006-02 - 2013-10 | 65 | 88 | 1360 | Hatchback |
| PEUGEOT 207/207+ (WA_, WC_) Construction Year from 200708 Construction Year to 201206 Fitting Position Rear Axle | 2007-06 - 2013-10 | 70 | 95 | 1397 | Hatchback |
| PEUGEOT 207/207+ (WA_, WC_) Construction Year to 201206 Fitting Position Rear Axle | 2009-10 - 2012-12 | 72 | 98 | 1397 | Hatchback |
| PEUGEOT 207/207+ (WA_, WC_) Construction Year to 201206 Fitting Position Rear Axle | 2006-02 - 2015-12 | 50 | 68 | 1398 | Hatchback |
| PEUGEOT 207/207+ (WA_, WC_) Construction Year to 201206 Fitting Position Rear Axle | 2006-02 - 2013-10 | 66 | 90 | 1560 | Hatchback |
| PEUGEOT 207/207+ (WA_, WC_) Construction Year to 201206 Fitting Position Rear Axle | 2009-11 - 2012-12 | 68 | 92 | 1560 | Hatchback |
| PEUGEOT 207 Saloon Construction Year to 201206 Fitting Position Rear Axle | 2007-12 - 2012-12 | 54 | 73 | 1360 | Saloon |
| PEUGEOT 208 I (CA_, CC_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2012-03 - 2019-12 | 50 | 68 | 999 | Hatchback |
| PEUGEOT 208 I (CA_, CC_) Fitting Position Rear Axle Inner brake drum diameter [inch] 9 Inch | 2016-08 - 2019-12 | 50 | 68 | 1199 | Hatchback |
| PEUGEOT 208 I (CA_, CC_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2012-03 - 2019-12 | 60 | 82 | 1199 | Hatchback |
| PEUGEOT 208 I (CA_, CC_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2015-06 - 2019-12 | 60 | 82 | 1199 | Hatchback |
| PEUGEOT 208 I (CA_, CC_) Fitting Position Rear Axle Inner brake drum diameter [inch] 9 Inch | 2018-03 - 2019-12 | 61 | 82 | 1199 | Hatchback |
| PEUGEOT 208 I (CA_, CC_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2013-01 - 2019-12 | 81 | 110 | 1199 | Hatchback |
| PEUGEOT 208 I (CA_, CC_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2012-03 - 2019-12 | 70 | 95 | 1397 | Hatchback |
| PEUGEOT 208 I (CA_, CC_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2013-10 - 2019-12 | 70 | 95 | 1397 | Hatchback |
| PEUGEOT 208 I (CA_, CC_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2012-03 - 2019-12 | 88 | 120 | 1598 | Hatchback |
| PEUGEOT 208 I (CA_, CC_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2012-03 - 2019-12 | 115 | 156 | 1598 | Hatchback |
| PEUGEOT 208 I (CA_, CC_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2015-03 - 2019-12 | 121 | 165 | 1598 | Hatchback |
| PEUGEOT 208 I (CA_, CC_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2012-03 - 2019-12 | 50 | 68 | 1398 | Hatchback |
| PEUGEOT 208 I (CA_, CC_) Fitting Position Rear Axle Inner brake drum diameter [inch] 9 Inch | 2018-05 - 2019-12 | 75 | 102 | 1499 | Hatchback |
| PEUGEOT 208 I (CA_, CC_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2013-01 - 2019-12 | 55 | 75 | 1560 | Hatchback |
| PEUGEOT 208 I (CA_, CC_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2012-03 - 2019-12 | 68 | 92 | 1560 | Hatchback |
| PEUGEOT 208 I (CA_, CC_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2015-01 - 2019-12 | 73 | 100 | 1560 | Hatchback |
| PEUGEOT 208 I (CA_, CC_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2015-07 - 2019-12 | 82 | 112 | 1560 | Hatchback |
| PEUGEOT 208 I (CA_, CC_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2012-03 - 2019-12 | 84 | 114 | 1560 | Hatchback |
| PEUGEOT 208 I (CA_, CC_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2015-01 - 2019-12 | 85 | 116 | 1560 | Hatchback |
| PEUGEOT 208 I (CA_, CC_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2015-01 - 2019-12 | 88 | 120 | 1560 | Hatchback |
| PEUGEOT 301 (DD_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2012-11 - | 53 | 72 | 1199 | Saloon |
| PEUGEOT 301 (DD_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2014-12 - | 60 | 82 | 1199 | Saloon |
| PEUGEOT 301 (DD_) Fitting Position Rear Axle Inner brake drum diameter [inch] 9 Inch | 2018-02 - | 61 | 83 | 1199 | Saloon |
| PEUGEOT 301 (DD_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2012-11 - | 85 | 115 | 1587 | Saloon |
| PEUGEOT 301 (DD_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2014-07 - | 85 | 116 | 1587 | Saloon |
| PEUGEOT 301 (DD_) Fitting Position Rear Axle Inner brake drum diameter [inch] 9 Inch | 2018-05 - | 75 | 102 | 1499 | Saloon |
| PEUGEOT 301 (DD_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2012-11 - | 68 | 92 | 1560 | Saloon |
| PEUGEOT 301 (DD_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2014-04 - | 73 | 99 | 1560 | Saloon |
| PEUGEOT 207 SW Estate Van (WK_) Fitting Position Rear Axle | 2007-08 - 2012-12 | 66 | 90 | 1560 | Estate Van |
| PEUGEOT 207 Hatchback Van (WA_, WC_) Construction Year to 201206 Fitting Position Rear Axle | 2007-04 - | 50 | 68 | 1398 | Hatchback Van |
| PEUGEOT 207 Hatchback Van (WA_, WC_) Construction Year to 201206 Fitting Position Rear Axle | 2007-04 - 2012-10 | 66 | 90 | 1560 | Hatchback Van |
| PEUGEOT 208 Hatchback Van (CR_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2013-02 - 2019-12 | 50 | 68 | 1398 | Hatchback Van |
| PEUGEOT 208 Hatchback Van (CR_) Fitting Position Rear Axle Inner brake drum diameter [inch] 9 Inch | 2018-05 - 2019-12 | 75 | 102 | 1499 | Hatchback Van |
| PEUGEOT 208 Hatchback Van (CR_) Inner brake drum diameter [inch] 9 Inch Fitting Position Rear Axle | 2015-04 - 2019-12 | 55 | 75 | 1560 | Hatchback Van |
24.0222-9701.2
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Citroën
Peugeot - Handelsnummer
- 480219
- Land van Herkomst
- Italië
- Aanvullende informatie
- met ABS-sensorring
met wiellager - Hoogte
- 76,5
- Buitendiameter [mm]
- 273,0
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 108,0
- Diameter van de ondersteuningsplaat [mm]
- 62
- Binnendiameter [mm]
- 228,6
- Draadmaat
- M12x1,25
- Max. Afborende Dimensie [mm]
- 230,1
- Binnenhoogte van de remtrommel [mm]
- 51,0
Specifieke referenties
- ean13
- 4006633407557
- MPN
- 2402229701202
ATE 24.0222-9701.2
(240222-97012)
- Buitendiameter [mm]: 273,0
- Binnendiameter [mm]: 228,6
- Draagplaat diameter [mm]: 62
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480219
