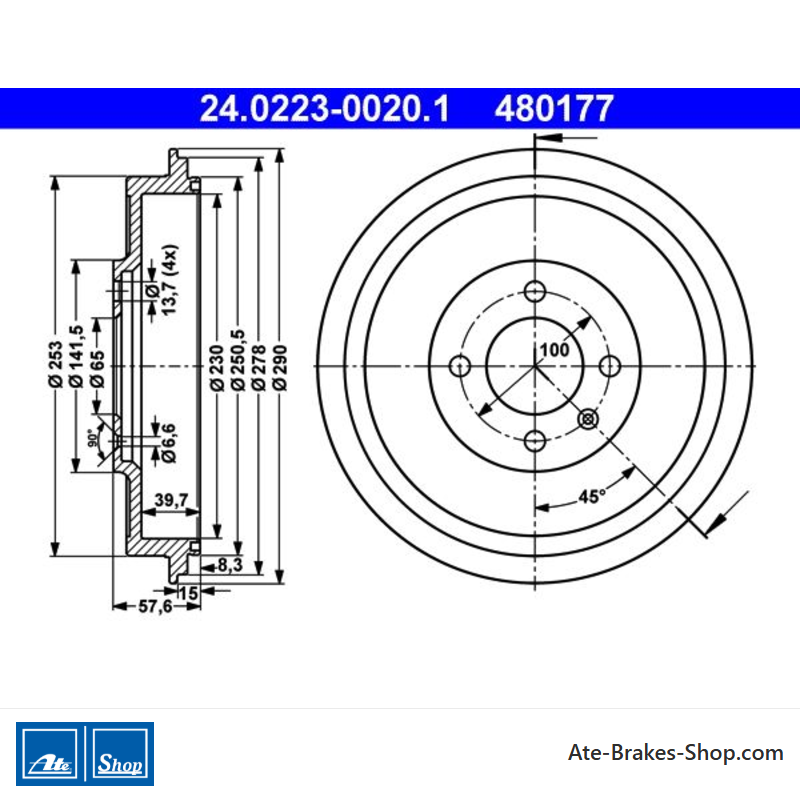

ATE Originele 2-delige remtrommel (24022300201) voor Seat, Volkswagen (VW)
€ 105,27
(incl. btw)
€ 87,00 belastingexcl.
Onderdeelnummer:
ATE 24.0223-0020.1
(240223-00201)
- Buitendiameter [mm]: 290,0
- Binnendiameter [mm]: 230,0
- Draagplaatdiameter [mm]: 65,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480177
- Ean Code: 4006633129862
- Gewicht: 13.04kg
Specification of ATE 24.0223-0020.1 / 240223-00201 / 24022300201:
| OE Number | Reference info |
| SEAT 6K9 609 617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 6K9609617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 6K9 609 617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 6K9609617 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SEAT INCA (6K9) Vehicle Identification Number (VIN) from 9K-X-023408 Fitting Position Rear Axle | 1995-11 - 2003-06 | 44 | 60 | 1389 | Estate Van |
| SEAT INCA (6K9) Fitting Position Rear Axle | 2000-04 - 2003-06 | 55 | 75 | 1390 | Estate Van |
| SEAT INCA (6K9) Vehicle Identification Number (VIN) from 9K-X-023408 Fitting Position Rear Axle | 1995-11 - 1998-05 | 55 | 75 | 1595 | Estate Van |
| SEAT INCA (6K9) Vehicle Identification Number (VIN) from 9K-X-023408 Fitting Position Rear Axle | 1997-06 - 2000-09 | 55 | 75 | 1598 | Estate Van |
| SEAT INCA (6K9) Vehicle Identification Number (VIN) from 9K-X-023408 Fitting Position Rear Axle | 1996-09 - 2003-06 | 42 | 57 | 1715 | Estate Van |
| SEAT INCA (6K9) Vehicle Identification Number (VIN) from 9K-X-023408 Fitting Position Rear Axle | 1995-11 - 2003-06 | 47 | 64 | 1896 | Estate Van |
| SEAT INCA (6K9) Vehicle Identification Number (VIN) from 9K-X-023408 Fitting Position Rear Axle | 1995-11 - 2003-06 | 47 | 64 | 1896 | Estate Van |
| SEAT INCA (6K9) Vehicle Identification Number (VIN) from 9K-X-023408 Fitting Position Rear Axle | 1996-09 - 2003-06 | 66 | 90 | 1896 | Estate Van |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) from 9K-Y-500748 Fitting Position Rear Axle | 1995-11 - 2003-06 | 44 | 60 | 1390 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) from 9K-Y-500748 Fitting Position Rear Axle | 2000-08 - 2004-01 | 55 | 75 | 1390 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) from 9K-Y-500748 Fitting Position Rear Axle | 1995-11 - 1997-05 | 55 | 75 | 1595 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) from 9K-Y-500748 Fitting Position Rear Axle | 1997-06 - 2000-09 | 55 | 75 | 1598 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) from 9K-Y-500748 Fitting Position Rear Axle | 1995-11 - 2004-01 | 47 | 64 | 1896 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) from 9K-Y-500748 Fitting Position Rear Axle | 1995-11 - 2004-01 | 47 | 64 | 1896 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) from 9K-Y-500748 Fitting Position Rear Axle | 1996-10 - 2004-01 | 66 | 90 | 1896 | MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) from 9K-Y-500748 Fitting Position Rear Axle | 1995-11 - 2004-01 | 44 | 60 | 1390 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) from 9K-Y-500748 Fitting Position Rear Axle | 2000-08 - 2004-01 | 55 | 75 | 1390 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) from 9K-Y-500748 Fitting Position Rear Axle | 1995-11 - 1997-05 | 55 | 75 | 1595 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) from 9K-Y-500748 Fitting Position Rear Axle | 1995-11 - 2000-09 | 55 | 75 | 1598 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) from 9K-Y-500748 Fitting Position Rear Axle | 1996-07 - 2000-09 | 42 | 57 | 1715 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) from 9K-Y-500748 Fitting Position Rear Axle | 1995-11 - 2004-01 | 47 | 64 | 1896 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) from 9K-Y-500748 Fitting Position Rear Axle | 1995-11 - 2004-01 | 47 | 64 | 1896 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) from 9K-Y-500748 Fitting Position Rear Axle | 1996-09 - 2004-01 | 66 | 90 | 1896 | Box Body/MPV |
24.0223-0020.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Volkswagen (VW)
Zetel - Handelsnummer
- 480177
- Land van Herkomst
- China
- Hoogte
- 57,6
- Buitendiameter [mm]
- 290,0
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Diameter van de ondersteuningsplaat [mm]
- 65,0
- Binnendiameter [mm]
- 230,0
- Bordiameter [mm]
- 13,7
- Max. Afborende Dimensie [mm]
- 231,5
- Binnenhoogte van de remtrommel [mm]
- 39,7
Specifieke referenties
- ean13
- 4006633129862
- MPN
- 2402230020102
ATE 24.0223-0020.1
(240223-00201)
- Buitendiameter [mm]: 290,0
- Binnendiameter [mm]: 230,0
- Draagplaatdiameter [mm]: 65,0
- Aantal boutgaten: 4
- 2 Stukken Remtrommel
- Handelsnummer: 480177
