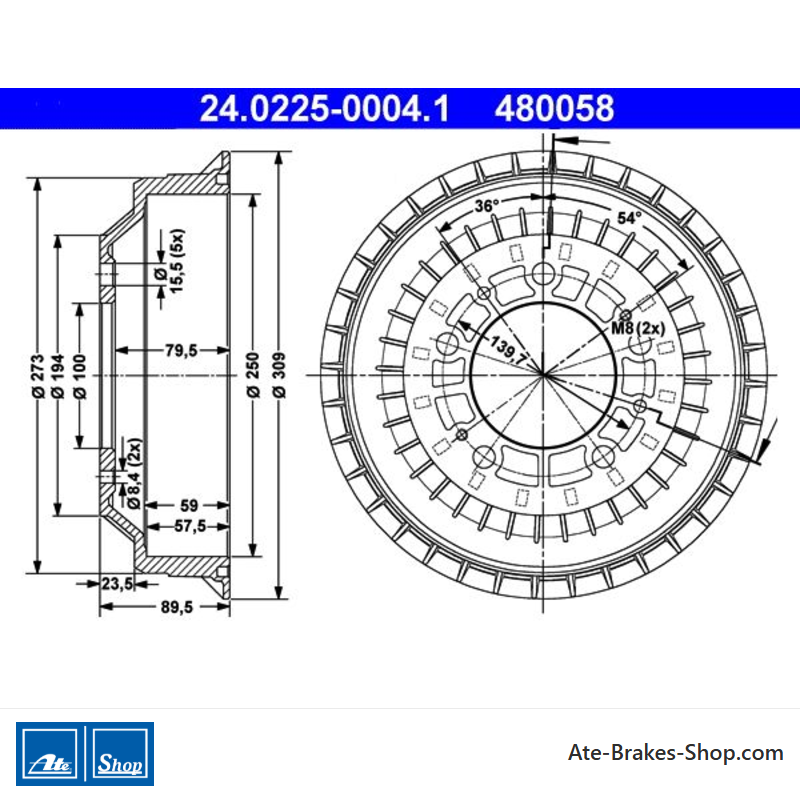

ATE Originele 2-delige remtrommel (24022500041) voor Lada
€ 185,13
(incl. btw)
€ 153,00 belastingexcl.
Onderdeelnummer:
ATE 24.0225-0004.1
(240225-00041)
- Buitendiameter [mm]: 309,0
- Binnendiameter [mm]: 250,0
- Draagplaat diameter [mm]: 100,0
- Aantal bolt holes: 5
- 2 Stukken Remtrommel
- Handelsnummer: 480058
- Ean Code: 4006633296021
- Gewicht: 16.64kg
Specification of ATE 24.0225-0004.1 / 240225-00041 / 24022500041:
| OE Number | Reference info |
| LADA 2121-3502070 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| LADA NIVA Closed Off-Road Vehicle (2121, 2131) Fitting Position Rear Axle | 1987-01 - 1995-03 | 54 | 73 | 1569 | Closed Off-Road Vehicle |
| LADA NIVA Closed Off-Road Vehicle (2121, 2131) Fitting Position Rear Axle | 1976-12 - 1993-12 | 56 | 76 | 1569 | Closed Off-Road Vehicle |
| LADA NIVA Closed Off-Road Vehicle (2121, 2131) Fitting Position Rear Axle | 2002-09 - 2015-12 | 57 | 78 | 1690 | Closed Off-Road Vehicle |
| LADA NIVA Closed Off-Road Vehicle (2121, 2131) Fitting Position Rear Axle | 1996-06 - 2006-12 | 59 | 80 | 1690 | Closed Off-Road Vehicle |
| LADA NIVA Closed Off-Road Vehicle (2121, 2131) Fitting Position Rear Axle | 2000-10 - 2015-12 | 60 | 82 | 1690 | Closed Off-Road Vehicle |
| LADA NIVA Closed Off-Road Vehicle (2121, 2131) Fitting Position Rear Axle | 2004-05 - | 61 | 83 | 1690 | Closed Off-Road Vehicle |
| LADA NIVA Closed Off-Road Vehicle (2121, 2131) Construction Year from 199303 Fitting Position Rear Axle | 1993-01 - 1999-08 | 48 | 65 | 1905 | Closed Off-Road Vehicle |
| LADA NIVA Closed Off-Road Vehicle (2121, 2131) Fitting Position Rear Axle | 1999-01 - 2006-12 | 55 | 75 | 1905 | Closed Off-Road Vehicle |
24.0225-0004.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Lada
- Handelsnummer
- 480058
- Land van Herkomst
- China
- Hoogte
- 89,5
- Buitendiameter [mm]
- 309,0
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 139,7
- Diameter van de ondersteuningsplaat [mm]
- 100,0
- Binnendiameter [mm]
- 250,0
- Bordiameter [mm]
- 15,2
- Max. Afborende Dimensie [mm]
- 251,5
- Binnenhoogte van de remtrommel [mm]
- 57,5
Specifieke referenties
- ean13
- 4006633296021
- MPN
- 2402250004102
