ATE Originele 2-delige remtrommel (24022540171) voor Land Rover
€ 196,02
(incl. btw)
€ 162,00 belastingexcl.
Onderdeelnummer:
ATE 24.0225-4017.1
(240225-40171)
- Buitendiameter [mm]: 290,0
- Binnendiameter [mm]: 254,0
- Draagplaat diameter [mm]: 66,2
- Aantal bolt holes: 5
- 2 Stukken Remtrommel
- Handelsnummer: 480182
- Ean Code: 4006633163132
- Gewicht: 13.98kg
Specification of ATE 24.0225-4017.1 / 240225-40171 / 24022540171:
| OE Number | Reference info |
| LAND ROVER SDC100110 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| LAND ROVER SDC100130 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| LAND ROVER FREELANDER I (L314) Vehicle Identification Number (VIN) to YA999999 Fitting Position Rear Axle | 1998-04 - 2006-10 | 86 | 117 | 1796 | Closed Off-Road Vehicle |
| LAND ROVER FREELANDER I (L314) Fitting Position Rear Axle | 1998-02 - 2000-11 | 88 | 120 | 1796 | Closed Off-Road Vehicle |
| LAND ROVER FREELANDER I (L314) Vehicle Identification Number (VIN) to YA999999 Fitting Position Rear Axle | 2000-11 - 2006-10 | 130 | 177 | 2497 | Closed Off-Road Vehicle |
| LAND ROVER FREELANDER I (L314) Fitting Position Rear Axle | 1998-02 - 2000-11 | 72 | 98 | 1994 | Closed Off-Road Vehicle |
| LAND ROVER FREELANDER I (L314) Construction Year from 200111 Vehicle Identification Number (VIN) to YA999999 Fitting Position Rear Axle | 2001-03 - 2006-10 | 80 | 109 | 1951 | Closed Off-Road Vehicle |
| LAND ROVER FREELANDER I (L314) Vehicle Identification Number (VIN) to YA999999 Fitting Position Rear Axle | 2000-11 - 2006-10 | 82 | 112 | 1951 | Closed Off-Road Vehicle |
| LAND ROVER FREELANDER I Soft Top (L314) Construction Year from 200011 Vehicle Identification Number (VIN) to YA999999 Fitting Position Rear Axle | 2000-10 - 2006-10 | 86 | 117 | 1796 | Open Off-Road Vehicle |
| LAND ROVER FREELANDER I Soft Top (L314) Construction Year to 200011 Fitting Position Rear Axle | 1998-02 - 2006-10 | 88 | 120 | 1796 | Open Off-Road Vehicle |
| LAND ROVER FREELANDER I Soft Top (L314) Construction Year to 200011 Fitting Position Rear Axle | 1998-02 - 2006-10 | 72 | 98 | 1994 | Open Off-Road Vehicle |
| LAND ROVER FREELANDER I Soft Top (L314) Construction Year from 200011 Vehicle Identification Number (VIN) to YA999999 Fitting Position Rear Axle | 2000-10 - 2006-10 | 82 | 112 | 1951 | Open Off-Road Vehicle |

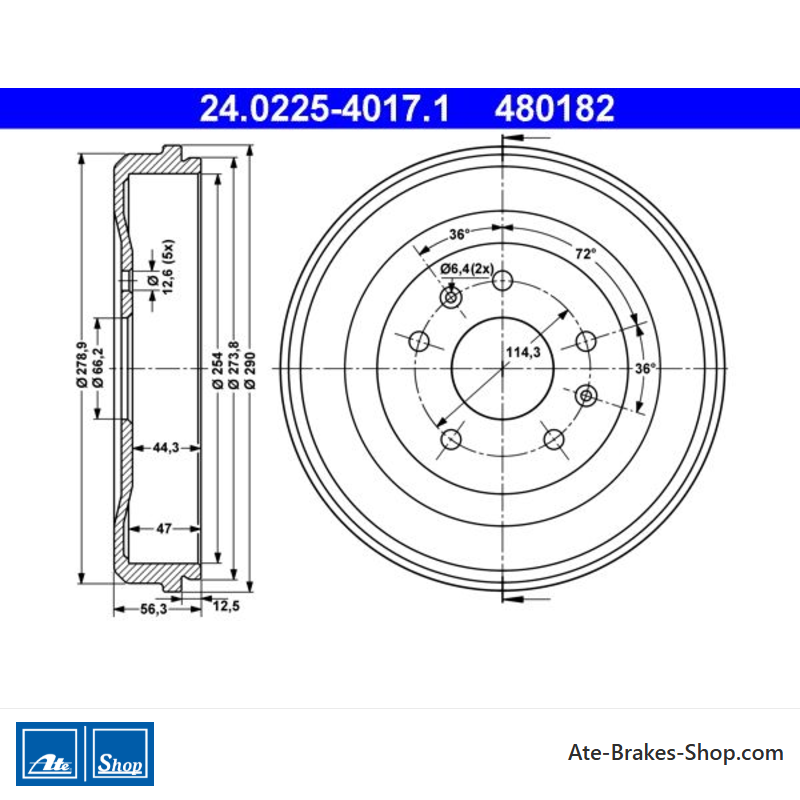

24.0225-4017.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Land Rover
- Handelsnummer
- 480182
- Land van Herkomst
- Italië
- Hoogte
- 56,3
- Buitendiameter [mm]
- 290,0
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Diameter van de ondersteuningsplaat [mm]
- 66,2
- Binnendiameter [mm]
- 254,0
- Bordiameter [mm]
- 12,6
- Max. Afborende Dimensie [mm]
- 255,5
- Binnenhoogte van de remtrommel [mm]
- 47,0
Specifieke referenties
- ean13
- 4006633163132
- MPN
- 2402254017102
ATE 24.0225-4017.1
(240225-40171)
- Buitendiameter [mm]: 290,0
- Binnendiameter [mm]: 254,0
- Draagplaat diameter [mm]: 66,2
- Aantal bolt holes: 5
- 2 Stukken Remtrommel
- Handelsnummer: 480182
