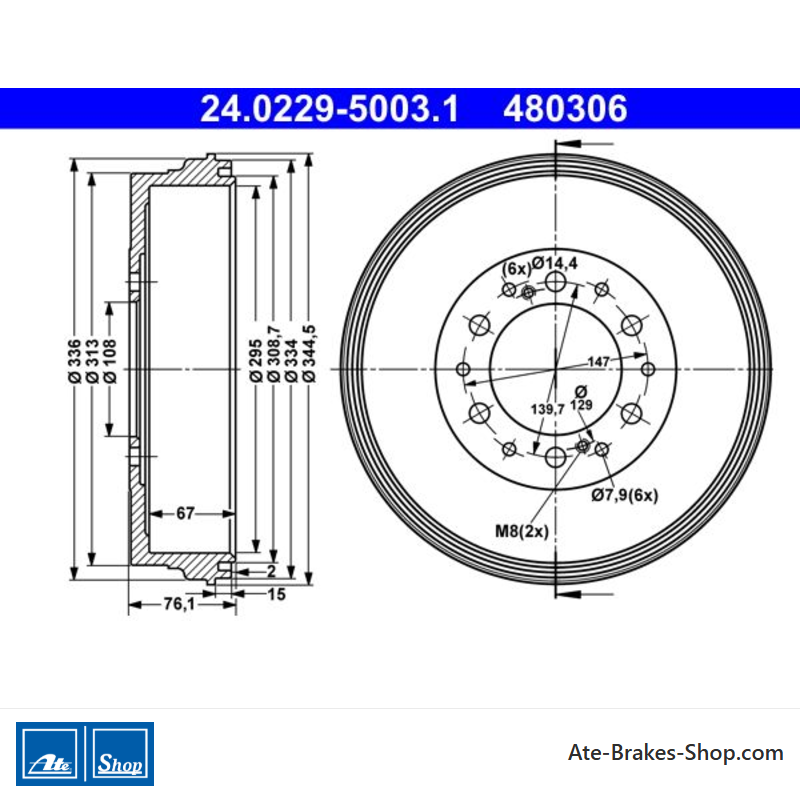

ATE Originele remtrommel (24022950031) voor Toyota
€ 156,09
(incl. btw)
€ 129,00 belastingexcl.
Onderdeelnummer:
ATE 24.0229-5003.1
(240229-50031)
- Buitendiameter [mm]: 344,5
- Binnendiameter [mm]: 295,0
- Draagplaat diameter [mm]: 108,0
- Aantal bolt holes: 6
- Handelsnummer: 480306
- Ean Code: 4006633375030
- Gewicht: 11.36kg
Specification of ATE 24.0229-5003.1 / 240229-50031 / 24022950031:
| OE Number | Reference info |
| TOYOTA 42431-0K130 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 42431-0K120 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA FORTUNER (_N5_, _N6_) Fitting Position Rear Axle | 2004-06 - 2015-05 | 118 | 160 | 2694 | SUV |
| TOYOTA FORTUNER (_N15_, _N16_) Fitting Position Rear Axle | 2015-05 - | 130 | 177 | 2755 | SUV |
| TOYOTA HILUX VII Pickup (_N1_, _N2_, _N3_) Fitting Position Rear Axle | 2005-03 - 2015-05 | 75 | 102 | 2494 | Pickup |
| TOYOTA HILUX VII Pickup (_N1_, _N2_, _N3_) Fitting Position Rear Axle | 2006-06 - 2015-05 | 88 | 120 | 2494 | Pickup |
| TOYOTA HILUX VII Pickup (_N1_, _N2_, _N3_) Fitting Position Rear Axle | 2010-01 - 2015-05 | 106 | 144 | 2494 | Pickup |
| TOYOTA HILUX VII Pickup (_N1_, _N2_, _N3_) Fitting Position Rear Axle | 2007-12 - 2015-05 | 106 | 144 | 2494 | Pickup |
| TOYOTA HILUX VII Pickup (_N1_, _N2_, _N3_) Fitting Position Rear Axle | 2005-03 - 2015-05 | 120 | 163 | 2982 | Pickup |
| TOYOTA HILUX VII Pickup (_N1_, _N2_, _N3_) Fitting Position Rear Axle | 2005-08 - 2015-09 | 126 | 171 | 2982 | Pickup |
| TOYOTA HILUX VII Pickup (_N1_, _N2_, _N3_) Fitting Position Rear Axle | 2008-05 - 2012-12 | 145 | 197 | 2982 | Pickup |
| TOYOTA HILUX VIII Pickup (_N1_) Vehicle Production Country Thailand Fitting Position Rear Axle | 2015-05 - | 110 | 150 | 2393 | Pickup |
| TOYOTA HILUX VIII Pickup (_N1_) Vehicle Production Country Thailand Fitting Position Rear Axle | 2015-05 - | 110 | 150 | 2393 | Pickup |
| TOYOTA HILUX VIII Pickup (_N1_) Fitting Position Rear Axle Vehicle Production Country Thailand | 2018-10 - | 125 | 170 | 2393 | Pickup |
| TOYOTA HILUX VIII Pickup (_N1_) Fitting Position Rear Axle Vehicle Production Country Thailand | 2018-10 - | 125 | 170 | 2393 | Pickup |
| TOYOTA HILUX VIII Pickup (_N1_) Vehicle Production Country Thailand Fitting Position Rear Axle | 2015-05 - 2021-02 | 130 | 177 | 2755 | Pickup |
| TOYOTA HILUX VIII Pickup (_N1_) Vehicle Production Country Thailand Fitting Position Rear Axle | 2015-05 - 2021-02 | 130 | 177 | 2755 | Pickup |
| TOYOTA HILUX VIII Pickup (_N1_) Fitting Position Rear Axle | 2020-06 - | 150 | 204 | 2755 | Pickup |
| TOYOTA HILUX VIII Platform/Chassis (_N1_) Vehicle Production Country Thailand Fitting Position Rear Axle | 2015-07 - | 110 | 150 | 2393 | Platform/Chassis |
24.0229-5003.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Toyota
- Handelsnummer
- 480306
- Land van Herkomst
- China
- Hoogte
- 76,1
- Buitendiameter [mm]
- 344,5
- Aantal boltgaten
- 6
- Diameter van het schroefgat [mm]
- 139,7
- Diameter van de ondersteuningsplaat [mm]
- 108,0
- Binnendiameter [mm]
- 295,0
- Bordiameter [mm]
- 14,4
- Max. Afborende Dimensie [mm]
- 297,0
- Binnenhoogte van de remtrommel [mm]
- 67,0
Specifieke referenties
- ean13
- 4006633375030
- MPN
- 2402295003102
ATE 24.0229-5003.1
(240229-50031)
- Buitendiameter [mm]: 344,5
- Binnendiameter [mm]: 295,0
- Draagplaat diameter [mm]: 108,0
- Aantal bolt holes: 6
- Handelsnummer: 480306
