ATE Originele remtrommel (24022950051) voor Nissan, Renault
€ 163,35
(incl. btw)
€ 135,00 belastingexcl.
Onderdeelnummer:
ATE 24.0229-5005.1
(240229-50051)
- Buitendiameter [mm]: 336,0
- Binnendiameter [mm]: 295,0
- Draagplaat diameter [mm]: 68,0
- Aantal bolt holes: 6
- Handelsnummer: 480343
- Ean Code: 4006633507363
- Gewicht: 10.59kg
Specification of ATE 24.0229-5005.1 / 240229-50051 / 24022950051:
| OE Number | Reference info |
| NISSAN 43206-EB360 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 43 20 6EB 360 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 43206EB360 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| NISSAN NAVARA NP300 (D40) Fitting Position Rear Axle | 2005-07 - | 106 | 144 | 2488 | Pickup |
| NISSAN NAVARA NP300 (D40) Fitting Position Rear Axle | 2007-01 - | 106 | 144 | 2488 | Pickup |
| NISSAN NAVARA NP300 (D40) Fitting Position Rear Axle | 2006-10 - | 120 | 163 | 2488 | Pickup |
| NISSAN NAVARA NP300 (D40) Fitting Position Rear Axle | 2006-10 - | 126 | 171 | 2488 | Pickup |
| NISSAN NAVARA NP300 (D40) Fitting Position Rear Axle | 2005-07 - | 128 | 174 | 2488 | Pickup |
| NISSAN NAVARA NP300 (D40) Fitting Position Rear Axle | 2009-12 - | 140 | 190 | 2488 | Pickup |
| NISSAN NAVARA NP300 (D40) Fitting Position Rear Axle | 2010-02 - | 170 | 231 | 2993 | Pickup |
| NISSAN NAVARA Pickup (D23, D23T) Fitting Position Rear Axle | 2015-01 - | 120 | 163 | 2298 | Pickup |
| NISSAN NAVARA Pickup (D23, D23T) Fitting Position Rear Axle | 2015-01 - | 120 | 163 | 2298 | Pickup |
| NISSAN NAVARA Pickup (D23, D23T) Fitting Position Rear Axle | 2015-01 - | 140 | 190 | 2298 | Pickup |
| NISSAN NAVARA Pickup (D23, D23T) Fitting Position Rear Axle | 2015-10 - | 140 | 190 | 2298 | Pickup |
| NISSAN NAVARA Pickup (D23, D23T) Fitting Position Rear Axle | 2014-07 - | 120 | 163 | 2488 | Pickup |
| NISSAN NP300 PICKUP (D22) Fitting Position Rear Axle | 2008-04 - | 98 | 133 | 2488 | Pickup |
| NISSAN NP300 PICKUP (D22) Fitting Position Rear Axle | 2008-04 - | 98 | 133 | 2488 | Pickup |
| NISSAN NAVARA NP300 Platform/Chassis (D40) Fitting Position Rear Axle | 2008-08 - | 106 | 144 | 2488 | Platform/Chassis |
| NISSAN NAVARA NP300 Platform/Chassis (D40) Fitting Position Rear Axle | 2010-03 - | 140 | 190 | 2488 | Platform/Chassis |
| NISSAN NAVARA NP300 Platform/Chassis (D40) Fitting Position Rear Axle | 2010-03 - | 170 | 231 | 2993 | Platform/Chassis |
| NISSAN NAVARA NP300 Platform/Chassis (D23) Fitting Position Rear Axle | 2015-01 - | 120 | 163 | 2298 | Platform/Chassis |
| RENAULT ALASKAN Fitting Position Rear Axle | 2017-09 - | 120 | 163 | 2298 | Pickup |
| RENAULT ALASKAN Fitting Position Rear Axle | 2017-09 - | 140 | 190 | 2298 | Pickup |

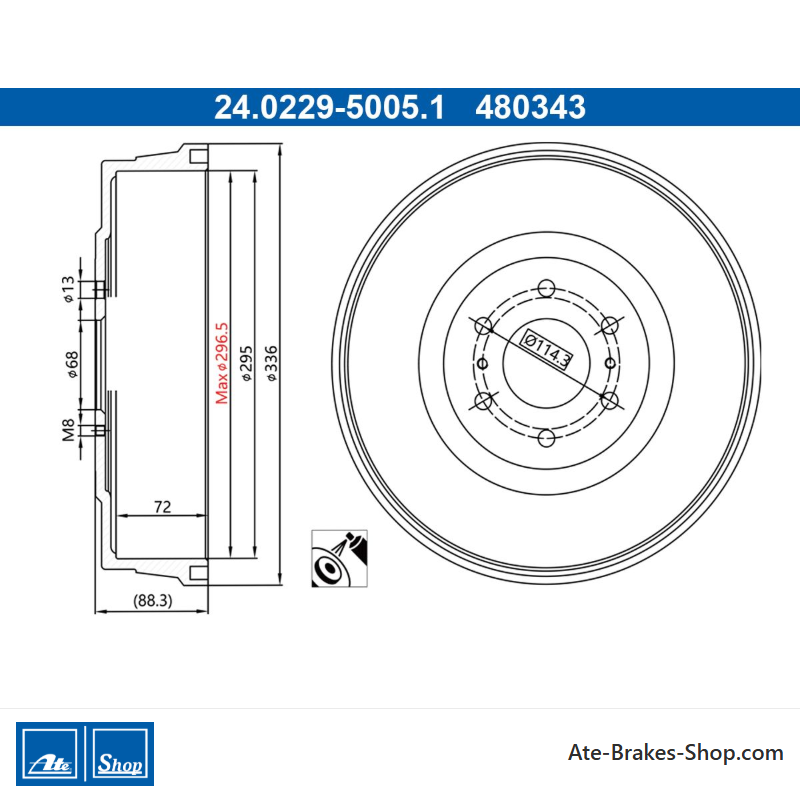

24.0229-5005.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Nissan
Renault - Handelsnummer
- 480343
- Land van Herkomst
- China
- Hoogte
- 88,3
- Buitendiameter [mm]
- 336,0
- Oppervlakte
- geschilderd
- Aantal boltgaten
- 6
- Diameter van het schroefgat [mm]
- 114,3
- Diameter van de ondersteuningsplaat [mm]
- 68,0
- Binnendiameter [mm]
- 295,0
- Bordiameter [mm]
- 12,8
- Max. Afborende Dimensie [mm]
- 296,5
- Binnenhoogte van de remtrommel [mm]
- 72,0
Specifieke referenties
- ean13
- 4006633507363
- MPN
- 2402295005102
ATE 24.0229-5005.1
(240229-50051)
- Buitendiameter [mm]: 336,0
- Binnendiameter [mm]: 295,0
- Draagplaat diameter [mm]: 68,0
- Aantal bolt holes: 6
- Handelsnummer: 480343
