ATE Originele 2-delige remschijf (24010701001) voor Citroën
€ 65,34
(incl. btw)
€ 54,00 belastingexcl.
Onderdeelnummer:
ATE 24.0107-0100.1
(240107-01001)
- Buitendiameter [mm]: 244,0
- Binnendiameter [mm]: 128,0
- Remschijfdikte [mm]: 7,0
- Aantal bolt holes: 6
- 2 stukken remschijf
- Handelsnummer: 407100
Logistieke informatie:
- Ean Code: 4006633083393
- Gewicht: 5.15kg
Specification of ATE 24.0107-0100.1 / 240107-01001 / 24010701001:
| OE Number | Reference info |
| CITROËN AM 451 23 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN AM 45123 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 95 599 322 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| CITROËN 95599322 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| CITROËN 2 CV for RPO number from 01666 Fitting Position Front Axle | 1975-09 - 1981-06 | 18 | 24 | 602 | Saloon |
| CITROËN 2 CV for RPO number from 01666 Fitting Position Front Axle | 1979-08 - 1990-07 | 20 | 27 | 602 | Saloon |
| CITROËN 2 CV for RPO number from 01666 Fitting Position Front Axle | 1970-02 - 1985-10 | 21 | 29 | 602 | Saloon |
| CITROËN AMI Construction Year from 196908 Fitting Position Front Axle | 1969-07 - 1977-12 | 24 | 33 | 602 | Saloon |
| CITROËN AMI Break Construction Year from 196908 Fitting Position Front Axle | 1969-07 - 1977-12 | 24 | 33 | 602 | Estate |
| CITROËN DYANE Construction Year from 197708 Construction Year to 198307 Fitting Position Front Axle | 1968-12 - 1984-10 | 21 | 29 | 602 | Hatchback |
| CITROËN DYANE Construction Year from 197708 Fitting Position Front Axle | 1972-05 - 1980-12 | 24 | 33 | 602 | Hatchback |
| CITROËN MEHARI Construction Year from 197701 Fitting Position Front Axle | 1968-05 - 1979-10 | 19 | 26 | 602 | Open Off-Road Vehicle |
| CITROËN MEHARI Fitting Position Front Axle | 1979-10 - 1987-10 | 21 | 29 | 602 | Open Off-Road Vehicle |
| CITROËN MEHARI Fitting Position Front Axle | 1979-10 - 1987-10 | 21 | 29 | 602 | Open Off-Road Vehicle |
| CITROËN ACADIANE Construction Year to 198512 Fitting Position Front Axle | 1978-08 - 1988-10 | 22 | 30 | 602 | Van |
| CITROËN ACADIANE Construction Year to 198512 Fitting Position Front Axle | 1978-08 - 1988-10 | 23 | 31 | 602 | Van |

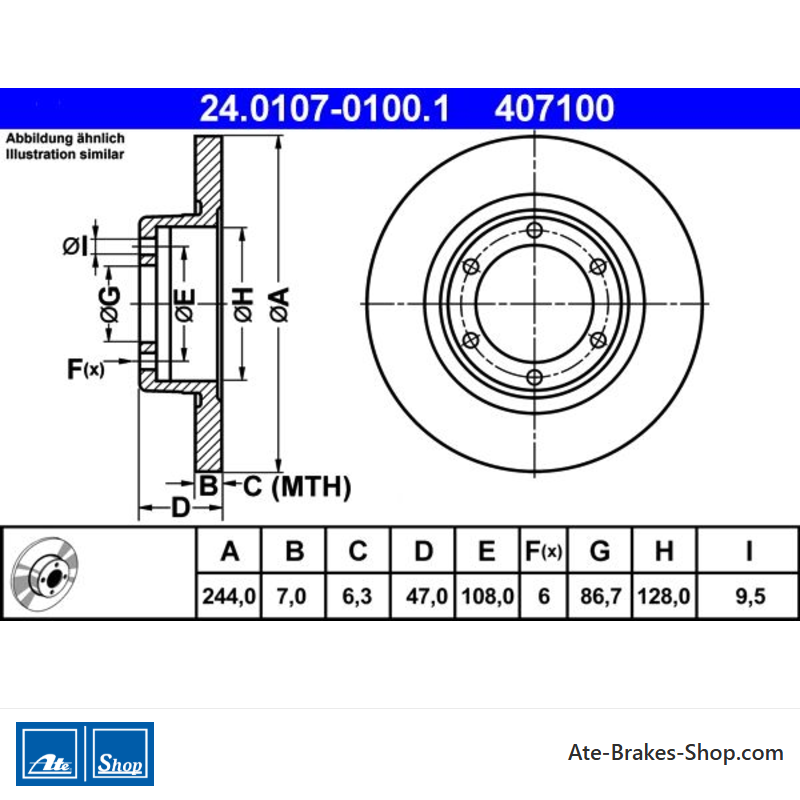

24.0107-0100.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Citroën
- Handelsnummer
- 407100
- Land van Herkomst
- Italië
- Hoogte
- 47,0
- Buitendiameter [mm]
- 244,0
- Remschijfdikte [mm]
- 7,0
- Type remschijf
- Solide
- Aantal boltgaten
- 6
- Diameter van het schroefgat [mm]
- 108,0
- Centreringsdiameter [mm]
- 86,7
- Binnendiameter [mm]
- 128,0
- Bordiameter [mm]
- 9,5
- Minimale dikte [mm]
- 6,3
Specifieke referenties
- ean13
- 4006633083393
- MPN
- 2401070100101
ATE 24.0107-0100.1
(240107-01001)
- Buitendiameter [mm]: 244,0
- Binnendiameter [mm]: 128,0
- Remschijfdikte [mm]: 7,0
- Aantal bolt holes: 6
- 2 stukken remschijf
- Handelsnummer: 407100
