ATE Originele 2-delige remschijf (24010801041) voor Renault
€ 50,82
(incl. btw)
€ 42,00 belastingexcl.
Onderdeelnummer:
ATE 24.0108-0104.1
(240108-01041)
- Buitendiameter [mm]: 238,0
- Binnendiameter [mm]: 129,5
- Remschijfdikte [mm]: 8,2
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 408104
Logistieke informatie:
- Ean Code: 4006633103299
- Gewicht: 5.68kg
Specification of ATE 24.0108-0104.1 / 240108-01041 / 24010801041:
| OE Number | Reference info |
| RENAULT 77 00 716 947 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 7700716947 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 77 01 204 285 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 7701204285 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| RENAULT SUPER 5 (B/C40_) Construction Year from 198501 Fitting Position Front Axle | 1984-10 - 1988-10 | 30 | 41 | 956 | Hatchback |
| RENAULT SUPER 5 (B/C40_) Construction Year from 198706 Construction Year to 199008 Fitting Position Front Axle | 1986-01 - 1995-03 | 33 | 45 | 1108 | Hatchback |
| RENAULT SUPER 5 (B/C40_) Fitting Position Front Axle | 1986-01 - 1995-03 | 33 | 45 | 1108 | Hatchback |
| RENAULT SUPER 5 (B/C40_) Construction Year from 198501 Fitting Position Front Axle | 1984-10 - 1988-10 | 34 | 46 | 1108 | Hatchback |
| RENAULT TWINGO I (C06_) Construction Year to 199809 Transmission Type Manual Transmission Fitting Position Front Axle | 1996-05 - 2007-03 | 40 | 54 | 1149 | Hatchback |
| RENAULT TWINGO I (C06_) Construction Year to 199809 Transmission Type Manual Transmission Fitting Position Front Axle | 1996-05 - 2007-06 | 43 | 58 | 1149 | Hatchback |
| RENAULT TWINGO I (C06_) Fitting Position Front Axle | 1993-03 - 1996-10 | 40 | 55 | 1239 | Hatchback |
| RENAULT RAPID Box Body/MPV (F40_, G40_) Fitting Position Front Axle Country Specific Design Germany | 1986-02 - 1992-05 | 27 | 37 | 956 | Box Body/MPV |
| RENAULT RAPID Box Body/MPV (F40_, G40_) Fitting Position Front Axle Country Specific Design Germany | 1985-09 - 1991-08 | 31 | 42 | 956 | Box Body/MPV |
| RENAULT RAPID Box Body/MPV (F40_, G40_) Construction Year to 198805 Fitting Position Front Axle | 1987-06 - 1991-09 | 33 | 45 | 1108 | Box Body/MPV |
| RENAULT RAPID Box Body/MPV (F40_, G40_) Construction Year to 198805 Fitting Position Front Axle not for country specific design Italy | 1985-07 - 1995-04 | 33 | 45 | 1108 | Box Body/MPV |
| RENAULT RAPID Box Body/MPV (F40_, G40_) Construction Year to 198805 Fitting Position Front Axle not for country specific design Italy | 1985-09 - 1991-08 | 34 | 46 | 1108 | Box Body/MPV |
| RENAULT RAPID Box Body/MPV (F40_, G40_) Construction Year to 198606 Fitting Position Front Axle Country Specific Design France | 1986-03 - 1998-08 | 40 | 55 | 1595 | Box Body/MPV |

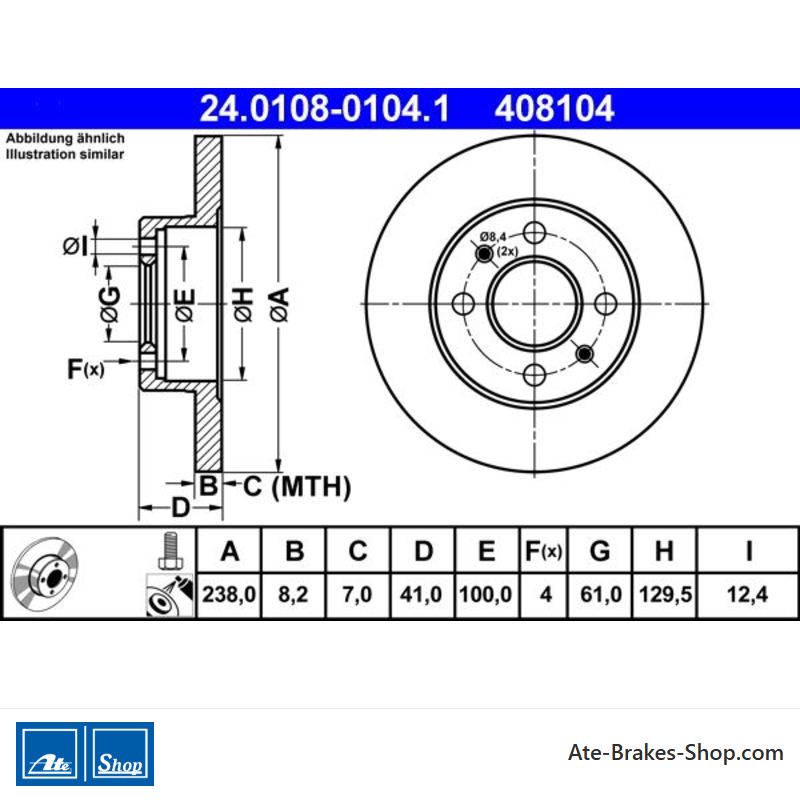

24.0108-0104.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Renault
- Handelsnummer
- 408104
- Land van Herkomst
- China
- Aanvullende informatie
- met bouten/schroeven
- Hoogte
- 41,0
- Buitendiameter [mm]
- 238,0
- Remschijfdikte [mm]
- 8,2
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 61,0
- Binnendiameter [mm]
- 129,5
- Bordiameter [mm]
- 12,4
- Minimale dikte [mm]
- 7,0
Specifieke referenties
- ean13
- 4006633103299
- MPN
- 2401080104102
ATE 24.0108-0104.1
(240108-01041)
- Buitendiameter [mm]: 238,0
- Binnendiameter [mm]: 129,5
- Remschijfdikte [mm]: 8,2
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 408104
