ATE Originele 2-delige remschijf (24010901281) voor Toyota
€ 94,38
(incl. btw)
€ 78,00 belastingexcl.
Onderdeelnummer:
ATE 24.0109-0128.1
(240109-01281)
- Buitendiameter [mm]: 242,0
- Binnendiameter [mm]: 130,9
- Remschijfdikte [mm]: 9,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 409128
Logistieke informatie:
- Ean Code: 4006633009027
- Gewicht: 5.80kg
Specification of ATE 24.0109-0128.1 / 240109-01281 / 24010901281:
| OE Number | Reference info |
| TOYOTA 42431-12090 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 42431-12120 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA COROLLA Liftback (_E8_) Construction Year to 198704 Fitting Position Rear Axle | 1985-08 - 1987-08 | 54 | 73 | 1587 | Hatchback |
| TOYOTA COROLLA Liftback (_E8_) Construction Year to 198704 Fitting Position Rear Axle | 1983-06 - 1987-08 | 62 | 84 | 1587 | Hatchback |
| TOYOTA COROLLA Liftback (_E8_) Construction Year to 198704 Fitting Position Rear Axle | 1985-07 - 1988-05 | 63 | 86 | 1587 | Hatchback |
| TOYOTA COROLLA Coupe (AE86) Fitting Position Rear Axle | 1985-12 - 1987-04 | 85 | 115 | 1587 | Coupe |
| TOYOTA COROLLA (_E8_) Construction Year to 198704 Fitting Position Rear Axle | 1985-08 - 1987-08 | 53 | 72 | 1587 | Saloon |
| TOYOTA COROLLA (_E8_) Construction Year to 198704 Fitting Position Rear Axle | 1985-12 - 1988-05 | 54 | 73 | 1587 | Saloon |
| TOYOTA COROLLA (_E8_) Construction Year to 198704 Fitting Position Rear Axle | 1983-06 - 1987-08 | 62 | 84 | 1587 | Saloon |
| TOYOTA COROLLA Compact (_E9_) Fitting Position Rear Axle | 1987-08 - 1992-04 | 66 | 90 | 1587 | Hatchback |
| TOYOTA COROLLA Compact (_E9_) Fitting Position Rear Axle | 1989-08 - 1992-04 | 77 | 105 | 1587 | Hatchback |
| TOYOTA COROLLA Compact (_E9_) Fitting Position Rear Axle | 1987-08 - 1994-10 | 85 | 116 | 1587 | Hatchback |
| TOYOTA COROLLA Liftback (_E9_) Fitting Position Rear Axle | 1989-08 - 1992-04 | 77 | 105 | 1587 | Hatchback |
| TOYOTA COROLLA Liftback (_E9_) Construction Year to 199205 Fitting Position Rear Axle | 1987-07 - 1993-06 | 92 | 125 | 1587 | Hatchback |

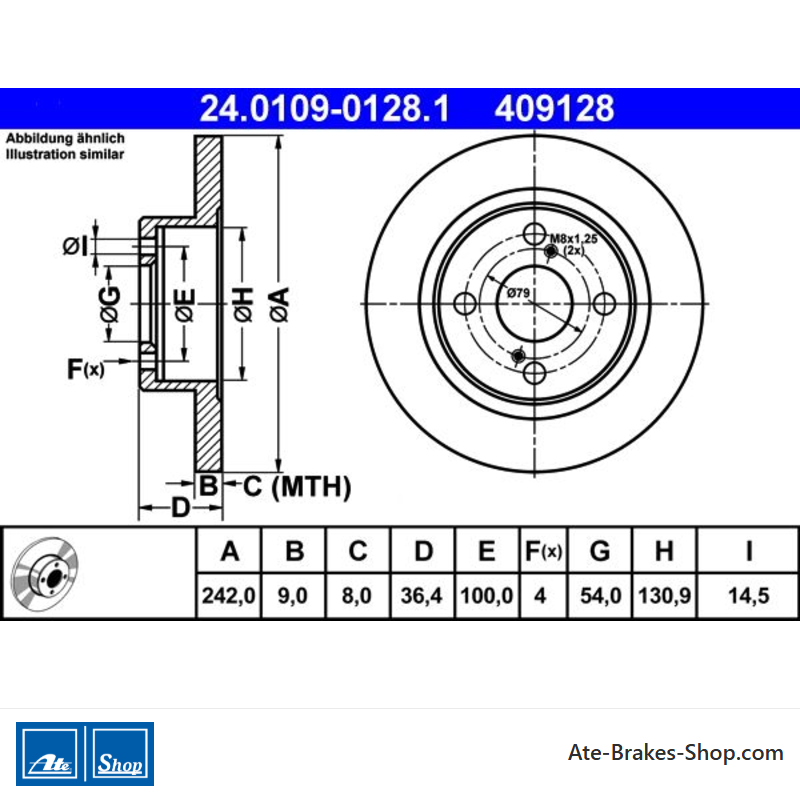

24.0109-0128.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Toyota
- Handelsnummer
- 409128
- Land van Herkomst
- QU
- Hoogte
- 36,4
- Buitendiameter [mm]
- 242,0
- Remschijfdikte [mm]
- 9,0
- Type remschijf
- Solide
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 54,0
- Binnendiameter [mm]
- 130,9
- Bordiameter [mm]
- 14,5
- Minimale dikte [mm]
- 8,0
Specifieke referenties
- ean13
- 4006633009027
- MPN
- 2401090128102
ATE 24.0109-0128.1
(240109-01281)
- Buitendiameter [mm]: 242,0
- Binnendiameter [mm]: 130,9
- Remschijfdikte [mm]: 9,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 409128
