ATE Originele 2-delige remschijf (24010901321) voor Honda
€ 94,38
(incl. btw)
€ 78,00 belastingexcl.
Onderdeelnummer:
ATE 24.0109-0132.1
(240109-01321)

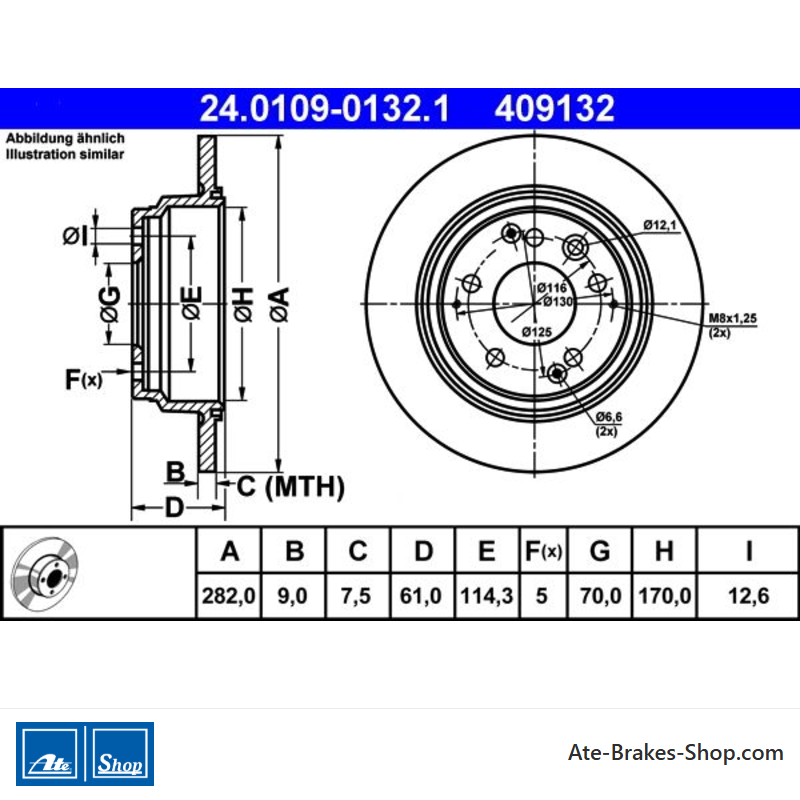

- Buitendiameter [mm]: 282,0
- Binnendiameter [mm]: 170,0
- Remschijfdikte [mm]: 9,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 409132
Logistieke informatie:
- Ean Code: 4006633025683
- Gewicht: 9.58kg
Specification of ATE 24.0109-0132.1 / 240109-01321 / 24010901321:
| OE Number | Reference info |
| HONDA 42510-SP0-000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 42510-SX0-000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HONDA LEGEND II (KA) Construction Year to 199601 Fitting Position Rear Axle | 1991-01 - 1996-02 | 151 | 205 | 3206 | Saloon |
| HONDA LEGEND II Coupe (KA) Construction Year to 199601 Fitting Position Rear Axle | 1991-01 - 1996-02 | 151 | 205 | 3206 | Coupe |
| HONDA LEGEND III (KA) Fitting Position Rear Axle | 1996-02 - 1997-10 | 151 | 205 | 3474 | Saloon |
| HONDA SHUTTLE (RA) Construction Year from 199501 Construction Year to 199712 Fitting Position Rear Axle | 1994-10 - 1998-02 | 110 | 150 | 2156 | MPV |
| HONDA SHUTTLE (RA) Construction Year from 199801 Construction Year to 200105 Fitting Position Rear Axle | 1997-10 - 2004-06 | 110 | 150 | 2254 | MPV |
24.0109-0132.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Honda
- Handelsnummer
- 409132
- Land van Herkomst
- Italië
- Hoogte
- 61,0
- Buitendiameter [mm]
- 282,0
- Remschijfdikte [mm]
- 9,0
- Type remschijf
- Solide
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 70,0
- Binnendiameter [mm]
- 170,0
- Bordiameter [mm]
- 12,6
- Minimale dikte [mm]
- 7,5
Specifieke referenties
- ean13
- 4006633025683
- MPN
- 2401090132102
ATE 24.0109-0132.1
(240109-01321)
- Buitendiameter [mm]: 282,0
- Binnendiameter [mm]: 170,0
- Remschijfdikte [mm]: 9,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 409132
