ATE Originele 2-delige remschijf (24010901511) voor Honda
€ 108,90
(incl. btw)
€ 90,00 belastingexcl.
Onderdeelnummer:
ATE 24.0109-0151.1
(240109-01511)
- Buitendiameter [mm]: 304,5
- Binnendiameter [mm]: 200,0
- Remschijfdikte [mm]: 9,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 409151
Logistieke informatie:
- Ean Code: 4006633312844
- Gewicht: 10.23kg
Specification of ATE 24.0109-0151.1 / 240109-01511 / 24010901511:
| OE Number | Reference info |
| HONDA 42510-T0G-A02 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 42510-T0G-A01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 42510-SCA-E50 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 42510-T0G-A04 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HONDA CR-V II (RD_) Construction Year from 200501 Construction Year to 200609 Fitting Position Rear Axle | 2001-09 - 2007-03 | 110 | 150 | 1998 | SUV |
| HONDA CR-V II (RD_) Fitting Position Rear Axle | 2005-02 - 2006-09 | 103 | 140 | 2204 | SUV |
| HONDA CR-V IV (RM_) Fitting Position Rear Axle | 2012-01 - 2018-12 | 140 | 190 | 2354 | SUV |
| HONDA CR-V IV (RM_) Fitting Position Rear Axle | 2015-09 - 2018-12 | 138 | 188 | 2356 | SUV |
24.0109-0151.1

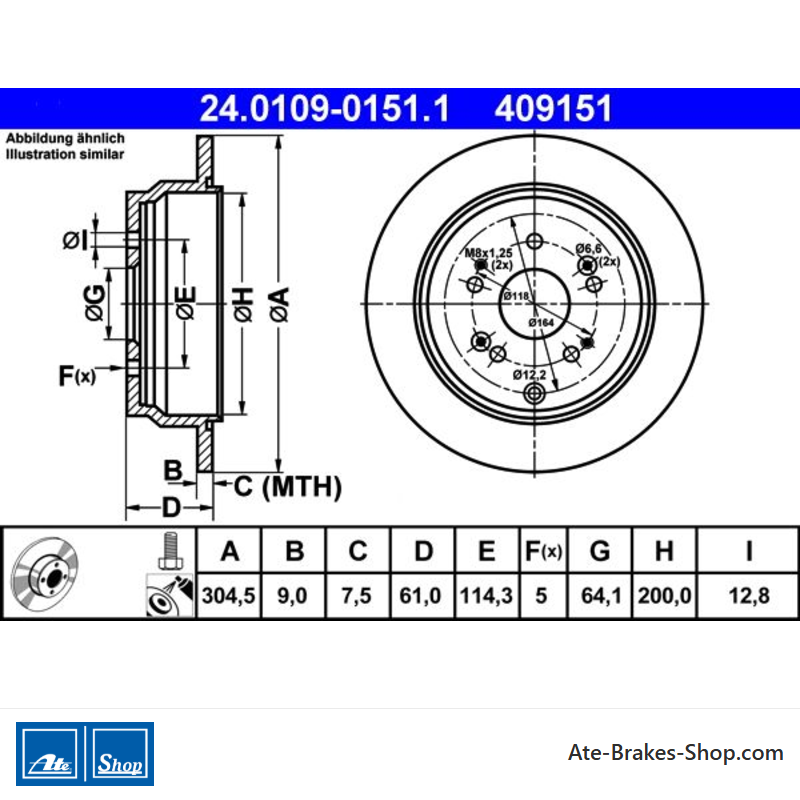

Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Honda
- Handelsnummer
- 409151
- Land van Herkomst
- China
- Aanvullende informatie
- met bouten/schroeven
- Hoogte
- 61,0
- Buitendiameter [mm]
- 304,5
- Remschijfdikte [mm]
- 9,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 64,1
- Binnendiameter [mm]
- 200,0
- Bordiameter [mm]
- 12,8
- Minimale dikte [mm]
- 7,5
Specifieke referenties
- ean13
- 4006633312844
- MPN
- 2401090151102
