ATE Originele 2-delige remschijf (24010901521) voor Toyota
€ 119,79
(incl. btw)
€ 99,00 belastingexcl.
Onderdeelnummer:
ATE 24.0109-0152.1
(240109-01521)
- Buitendiameter [mm]: 303,0
- Binnendiameter [mm]: 190,0
- Remschijfdikte [mm]: 9,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 409152
Logistieke informatie:
- Ean Code: 4006633243162
- Gewicht: 10.82kg
Specification of ATE 24.0109-0152.1 / 240109-01521 / 24010901521:
| OE Number | Reference info |
| TOYOTA 42431-42040 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 42431-42041 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA RAV 4 II (_A2_) Construction Year from 200102 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2000-08 - 2005-11 | 92 | 125 | 1794 | SUV |
| TOYOTA RAV 4 II (_A2_) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2000-05 - 2005-11 | 110 | 150 | 1998 | SUV |
| TOYOTA RAV 4 II (_A2_) Construction Year from 200109 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2001-05 - 2005-11 | 85 | 116 | 1995 | SUV |

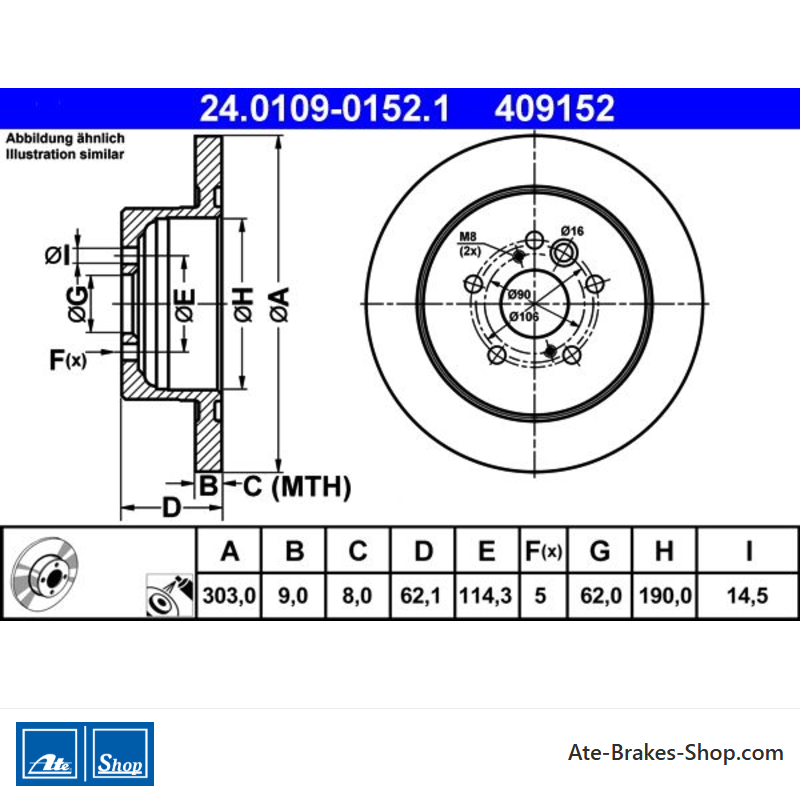

24.0109-0152.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Toyota
- Handelsnummer
- 409152
- Land van Herkomst
- Tsjechië
- Hoogte
- 62,1
- Buitendiameter [mm]
- 303,0
- Remschijfdikte [mm]
- 9,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 62,0
- Binnendiameter [mm]
- 190,0
- Bordiameter [mm]
- 14,5
- Minimale dikte [mm]
- 8,0
Specifieke referenties
- ean13
- 4006633243162
- MPN
- 2401090152102
ATE 24.0109-0152.1
(240109-01521)
- Buitendiameter [mm]: 303,0
- Binnendiameter [mm]: 190,0
- Remschijfdikte [mm]: 9,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 409152
