ATE Originele 2-delige remschijf (24010901661) voor Nissan
€ 123,42
(incl. btw)
€ 102,00 belastingexcl.
Onderdeelnummer:
ATE 24.0109-0166.1
(240109-01661)
- Buitendiameter [mm]: 292,0
- Binnendiameter [mm]: 172,0
- Remschijfdikte [mm]: 9,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 409166
Logistieke informatie:
- Ean Code: 4006633381376
- Gewicht: 9.66kg

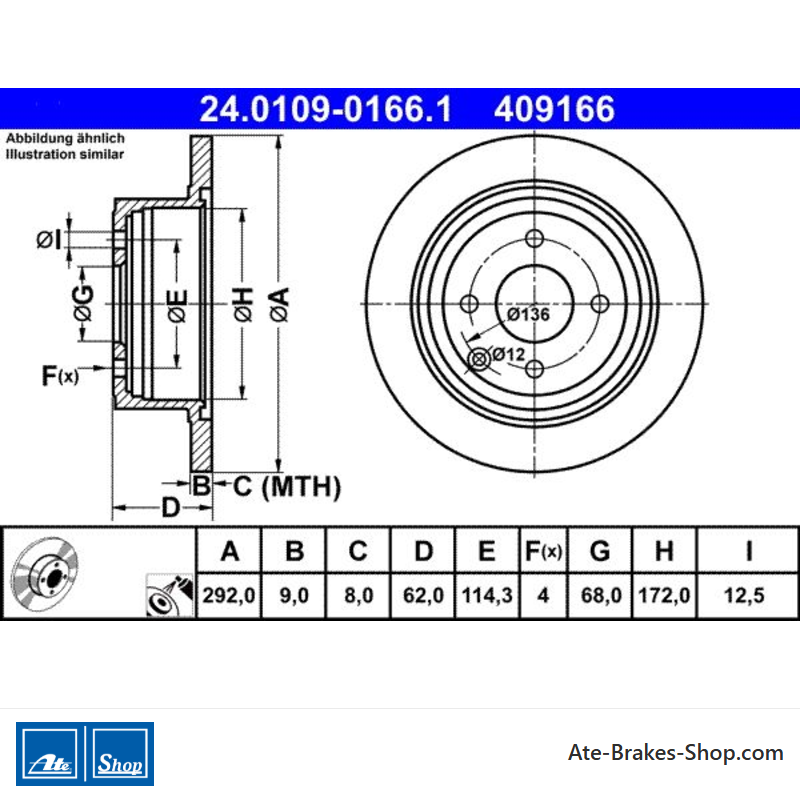

Specification of ATE 24.0109-0166.1 / 240109-01661 / 24010901661:
| OE Number | Reference info |
| NISSAN D3206-EM10A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| NISSAN 43206-EM10A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| NISSAN CUBE (Z12) Construction Year to 201103 Fitting Position Rear Axle | 2009-08 - | 81 | 110 | 1598 | Hatchback |
| NISSAN CUBE (Z12) Construction Year to 201103 Fitting Position Rear Axle | 2009-10 - | 78 | 106 | 1461 | Hatchback |
| NISSAN CUBE (Z12) Fitting Position Rear Axle | 2010-03 - | 81 | 110 | 1461 | Hatchback |
| NISSAN TIIDA Saloon (SC11) Construction Year to 201104 Fitting Position Rear Axle | 2007-09 - 2012-12 | 81 | 110 | 1598 | Saloon |
| NISSAN TIIDA Saloon (SC11) Construction Year to 201104 Fitting Position Rear Axle | 2007-09 - 2012-12 | 93 | 126 | 1798 | Saloon |
| NISSAN TIIDA Saloon (SC11) Construction Year to 201104 Fitting Position Rear Axle | 2007-09 - 2012-12 | 78 | 106 | 1461 | Saloon |
| NISSAN TIIDA Hatchback (C11) Construction Year to 201104 Fitting Position Rear Axle | 2007-09 - 2011-12 | 81 | 110 | 1598 | Hatchback |
| NISSAN TIIDA Hatchback (C11) Construction Year to 201104 Fitting Position Rear Axle | 2004-09 - 2011-12 | 93 | 126 | 1798 | Hatchback |
| NISSAN TIIDA Hatchback (C11) Fitting Position Rear Axle | 2007-03 - 2013-06 | 76 | 103 | 1461 | Hatchback |
| NISSAN TIIDA Hatchback (C11) Construction Year to 201104 Fitting Position Rear Axle | 2007-09 - 2011-12 | 78 | 106 | 1461 | Hatchback |
24.0109-0166.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Nissan
- Handelsnummer
- 409166
- Land van Herkomst
- Tsjechië
- Hoogte
- 62,0
- Buitendiameter [mm]
- 292,0
- Remschijfdikte [mm]
- 9,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 68,0
- Binnendiameter [mm]
- 172,0
- Bordiameter [mm]
- 12,5
- Minimale dikte [mm]
- 8,0
Specifieke referenties
- ean13
- 4006633381376
- MPN
- 2401090166102
ATE 24.0109-0166.1
(240109-01661)
- Buitendiameter [mm]: 292,0
- Binnendiameter [mm]: 172,0
- Remschijfdikte [mm]: 9,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 409166
