ATE Originele 2-delige remschijf (24010901691) voor Honda
€ 108,90
(incl. btw)
€ 90,00 belastingexcl.
Onderdeelnummer:
ATE 24.0109-0169.1
(240109-01691)
- Buitendiameter [mm]: 282,0
- Binnendiameter [mm]: 157,0
- Remschijfdikte [mm]: 9,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 409169
Logistieke informatie:
- Ean Code: 4006633378581
- Gewicht: 8.59kg
Specification of ATE 24.0109-0169.1 / 240109-01691 / 24010901691:
| OE Number | Reference info |
| HONDA 42510-TA0-A00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 42510-TA0-A01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 42510-TA0-A02 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 42510-SFY-000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 42510-T7J-H00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HONDA ACCORD VIII (CU) Construction Year from 200807 Transmission Type Manual Transmission Fitting Position Rear Axle | 2008-06 - 2015-06 | 115 | 156 | 1997 | Saloon |
| HONDA ACCORD VIII (CU) Transmission Type Manual Transmission Fitting Position Rear Axle | 2008-07 - 2015-06 | 148 | 201 | 2356 | Saloon |
| HONDA ACCORD VIII (CU) Fitting Position Rear Axle | 2008-07 - 2015-06 | 110 | 150 | 2199 | Saloon |
| HONDA ACCORD VIII (CU) Fitting Position Rear Axle | 2008-07 - 2015-06 | 132 | 180 | 2199 | Saloon |
| HONDA ACCORD VIII Tourer (CW) Fitting Position Rear Axle | 2008-07 - 2015-06 | 115 | 156 | 1997 | Estate |
| HONDA ACCORD VIII Tourer (CW) Fitting Position Rear Axle | 2008-07 - 2015-06 | 148 | 201 | 2356 | Estate |
| HONDA ACCORD VIII Tourer (CW) Fitting Position Rear Axle | 2008-07 - 2015-06 | 110 | 150 | 2199 | Estate |
| HONDA ACCORD VIII Tourer (CW) Fitting Position Rear Axle | 2008-07 - 2015-06 | 132 | 180 | 2199 | Estate |
| HONDA ACCORD IX Saloon (CR) Fitting Position Rear Axle | 2012-09 - | 207 | 282 | 3471 | Saloon |
| HONDA e:Ny1 Fitting Position Rear Axle | 2023-03 - | 150 | 204 | CC | SUV |
24.0109-0169.1

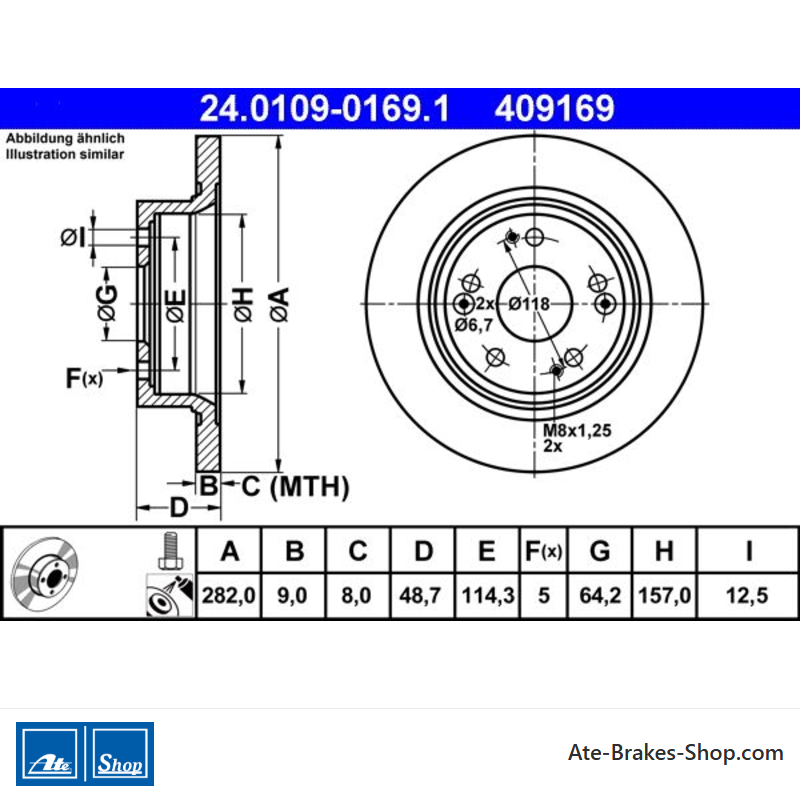

Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Honda
- Handelsnummer
- 409169
- Land van Herkomst
- QU
- Aanvullende informatie
- met bouten/schroeven
- Hoogte
- 48,7
- Buitendiameter [mm]
- 282,0
- Remschijfdikte [mm]
- 9,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 64,2
- Binnendiameter [mm]
- 157,0
- Bordiameter [mm]
- 12,5
- Minimale dikte [mm]
- 8,0
Specifieke referenties
- ean13
- 4006633378581
- MPN
- 2401090169102
ATE 24.0109-0169.1
(240109-01691)
- Buitendiameter [mm]: 282,0
- Binnendiameter [mm]: 157,0
- Remschijfdikte [mm]: 9,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 409169
