ATE Originele 2-delige remschijf (24010901851) voor Honda
€ 101,64
(incl. btw)
€ 84,00 belastingexcl.
Onderdeelnummer:
ATE 24.0109-0185.1
(240109-01851)
- Buitendiameter [mm]: 282,0
- Binnendiameter [mm]: 156,0
- Remschijfdikte [mm]: 9,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 409185
Logistieke informatie:
- Ean Code: 4006633483704
- Gewicht: 8.56kg

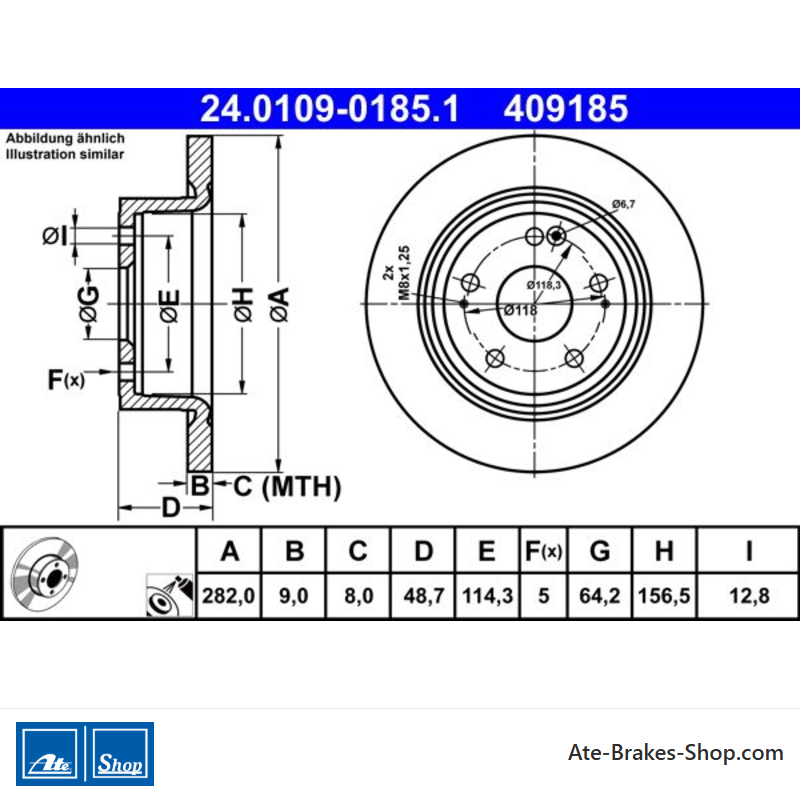

Specification of ATE 24.0109-0185.1 / 240109-01851 / 24010901851:
| OE Number | Reference info |
| HONDA 42510-T7W-A02 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HONDA 42510-T7W-A01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HONDA HR-V (RU) Fitting Position Rear Axle | 2015-08 - | 96 | 130 | 1498 | SUV |
| HONDA HR-V (RU) Fitting Position Rear Axle | 2019-04 - | 134 | 182 | 1498 | SUV |
| HONDA HR-V (RU) Fitting Position Rear Axle | 2015-08 - | 88 | 120 | 1597 | SUV |
24.0109-0185.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Honda
- Handelsnummer
- 409185
- Land van Herkomst
- QU
- Hoogte
- 48,7
- Buitendiameter [mm]
- 282,0
- Remschijfdikte [mm]
- 9,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 64,2
- Binnendiameter [mm]
- 156,0
- Bordiameter [mm]
- 12,8
- Minimale dikte [mm]
- 8,0
Specifieke referenties
- ean13
- 4006633483704
- MPN
- 2401090185102
ATE 24.0109-0185.1
(240109-01851)
- Buitendiameter [mm]: 282,0
- Binnendiameter [mm]: 156,0
- Remschijfdikte [mm]: 9,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 409185
