ATE Originele 2-delige remschijf (24010901891) voor Suzuki
€ 87,12
(incl. btw)
€ 72,00 belastingexcl.
Onderdeelnummer:
ATE 24.0109-0189.1
(240109-01891)
- Buitendiameter [mm]: 259,4
- Binnendiameter [mm]: 150,0
- Remschijfdikte [mm]: 9,1
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 409189
Logistieke informatie:
- Ean Code: 4006633469357
- Gewicht: 8.76kg
Specification of ATE 24.0109-0189.1 / 240109-01891 / 24010901891:
| OE Number | Reference info |
| SUZUKI 55611-71L01 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SUZUKI 55611-71L00 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI SWIFT IV (FZ, NZ) Fitting Position Rear Axle | 2010-10 - 2017-04 | 66 | 90 | 1242 | Hatchback |
| SUZUKI SWIFT IV (FZ, NZ) Fitting Position Rear Axle | 2010-10 - 2017-04 | 66 | 90 | 1242 | Hatchback |
| SUZUKI SWIFT IV (FZ, NZ) Fitting Position Rear Axle | 2010-10 - 2017-04 | 69 | 94 | 1242 | Hatchback |

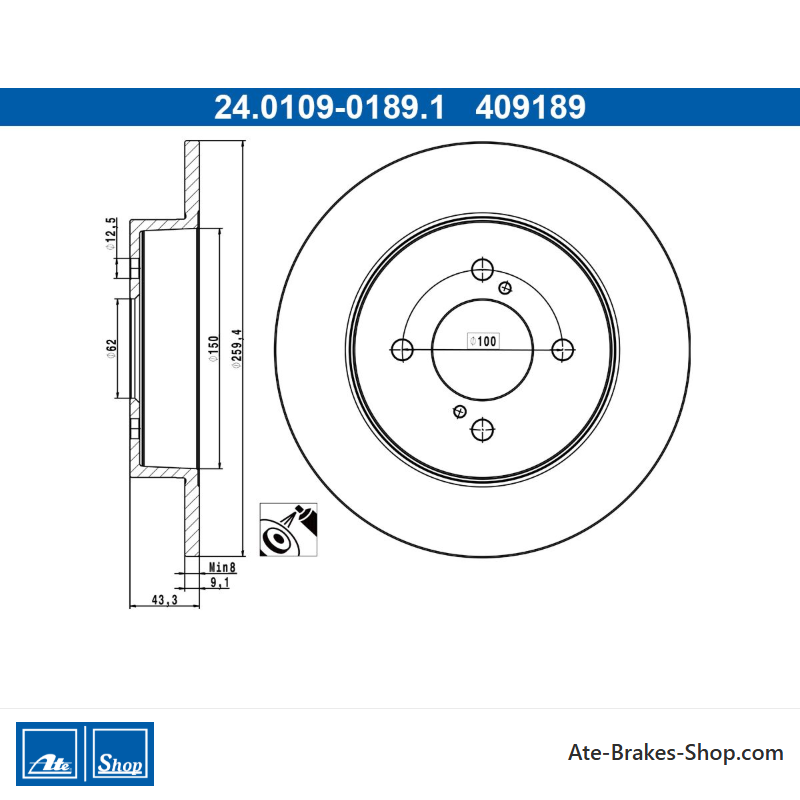

24.0109-0189.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Suzuki
- Handelsnummer
- 409189
- Land van Herkomst
- China
- Hoogte
- 43,3
- Buitendiameter [mm]
- 259,4
- Remschijfdikte [mm]
- 9,1
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 62,0
- Binnendiameter [mm]
- 150,0
- Bordiameter [mm]
- 12,5
- Minimale dikte [mm]
- 8,0
Specifieke referenties
- ean13
- 4006633469357
- MPN
- 2401090189102
ATE 24.0109-0189.1
(240109-01891)
- Buitendiameter [mm]: 259,4
- Binnendiameter [mm]: 150,0
- Remschijfdikte [mm]: 9,1
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 409189
