ATE Originele 2-delige remschijf (24011001421) voor Volkswagen (VW)
€ 134,31
(incl. btw)
€ 111,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0142.1
(240110-01421)
- Buitendiameter [mm]: 278,0
- Binnendiameter [mm]: 160,0
- Remschijfdikte [mm]: 9,5
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 410142
Logistieke informatie:
- Ean Code: 4006633054799
- Gewicht: 13.16kg
Specification of ATE 24.0110-0142.1 / 240110-01421 / 24011001421:
| OE Number | Reference info |
| VAG 113 407 075 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 113407075 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 311 405 583 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 311405583A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| VW 1500,1600 Hatchback (31) Construction Year to 197107 Fitting Position Front Axle | 1965-08 - 1973-07 | 40 | 54 | 1584 | Hatchback |
| VW 1500,1600 Variant (36) Construction Year from 196601 Construction Year to 196712 Fitting Position Front Axle | 1961-04 - 1973-07 | 33 | 45 | 1493 | Estate |
| VW 1500,1600 Variant (36) Construction Year to 197107 Fitting Position Front Axle | 1965-08 - 1973-07 | 40 | 54 | 1584 | Estate |
| VW 1500,1600 (31) Construction Year from 196601 Construction Year to 196712 Fitting Position Front Axle | 1961-04 - 1973-07 | 33 | 45 | 1493 | Saloon |
| VW 1500,1600 (31) Construction Year from 196508 Construction Year to 197107 Fitting Position Front Axle | 1964-07 - 1973-07 | 37 | 50 | 1584 | Saloon |
| VW 1500,1600 (31) Construction Year to 197107 Fitting Position Front Axle | 1965-08 - 1973-07 | 40 | 54 | 1584 | Saloon |
| VW 1500,1600 (31) Construction Year to 197107 Fitting Position Front Axle | 1965-08 - 1973-07 | 40 | 54 | 1584 | Saloon |
| VW KAEFER Fitting Position Front Axle | 1954-01 - 1965-07 | 22 | 30 | 1192 | Saloon |
| VW KAEFER Construction Year to 197712 Fitting Position Front Axle | 1960-01 - 1985-12 | 25 | 34 | 1192 | Saloon |
| VW KAEFER Construction Year from 197008 Construction Year to 197207 Fitting Position Front Axle | 1969-08 - 1972-08 | 25 | 34 | 1192 | Saloon |
| VW KAEFER Construction Year from 197208 Fitting Position Front Axle | 1972-07 - 1976-02 | 25 | 34 | 1192 | Saloon |
| VW KAEFER Construction Year from 196708 Fitting Position Front Axle | 1965-08 - 1970-07 | 27 | 37 | 1285 | Saloon |
| VW KAEFER Construction Year from 196708 Fitting Position Front Axle | 1965-08 - 1975-07 | 29 | 40 | 1285 | Saloon |
| VW KAEFER Construction Year to 197207 Fitting Position Front Axle | 1970-08 - 1975-07 | 29 | 39 | 1285 | Saloon |
| VW KAEFER Fitting Position Front Axle | 1970-01 - 1973-01 | 32 | 44 | 1285 | Saloon |
| VW KAEFER Construction Year to 197207 Fitting Position Front Axle | 1970-08 - 1972-08 | 32 | 44 | 1285 | Saloon |
| VW KAEFER Fitting Position Front Axle | 1972-08 - 1975-07 | 32 | 44 | 1285 | Saloon |
| VW KAEFER Construction Year from 196708 Fitting Position Front Axle | 1966-08 - 1973-11 | 32 | 44 | 1493 | Saloon |
| VW KAEFER Construction Year to 197207 Fitting Position Front Axle | 1971-07 - 1974-07 | 35 | 48 | 1584 | Saloon |
| VW KAEFER Construction Year to 197907 Fitting Position Front Axle | 1972-08 - 1979-12 | 35 | 48 | 1584 | Saloon |
| VW KAEFER Fitting Position Front Axle | 1970-07 - 1973-01 | 37 | 50 | 1584 | Saloon |
| VW KAEFER Construction Year from 197008 Construction Year to 197207 Fitting Position Front Axle | 1970-01 - 1973-01 | 37 | 50 | 1584 | Saloon |
| VW KAEFER Construction Year to 197907 Fitting Position Front Axle | 1972-08 - 1979-12 | 37 | 50 | 1584 | Saloon |
| VW KAEFER Convertible (15) Construction Year from 195401 Fitting Position Front Axle | 1949-07 - 1954-12 | 18 | 24 | 1131 | Convertible |
| VW KAEFER Convertible (15) Construction Year to 197907 Fitting Position Front Axle | 1975-04 - 1979-12 | 25 | 34 | 1192 | Convertible |
| VW KAEFER Convertible (15) Construction Year from 196708 Fitting Position Front Axle | 1964-07 - 1970-07 | 29 | 40 | 1285 | Convertible |
| VW KAEFER Convertible (15) Construction Year to 197207 Fitting Position Front Axle | 1970-08 - 1974-07 | 29 | 39 | 1285 | Convertible |
| VW KAEFER Convertible (15) Construction Year from 197208 Construction Year to 197907 Fitting Position Front Axle | 1970-07 - 1981-03 | 32 | 44 | 1285 | Convertible |
| VW KAEFER Convertible (15) Construction Year to 197207 Fitting Position Front Axle | 1970-08 - 1974-07 | 34 | 46 | 1584 | Convertible |
| VW KAEFER Convertible (15) Construction Year from 197208 Fitting Position Front Axle | 1970-08 - 1974-07 | 35 | 48 | 1584 | Convertible |
| VW KAEFER Convertible (15) Construction Year from 197008 Construction Year to 197207 Fitting Position Front Axle | 1970-07 - 1979-06 | 37 | 50 | 1584 | Convertible |
| VW KAEFER Convertible (15) Construction Year from 197208 Fitting Position Front Axle | 1970-07 - 1979-06 | 37 | 50 | 1584 | Convertible |
| VW KAEFER Convertible (15) Construction Year from 196608 Fitting Position Front Axle | 1966-01 - 1970-12 | 32 | 44 | 1493 | Convertible |
| VW KAEFER Convertible (15) Fitting Position Front Axle | 1969-07 - 1970-07 | 35 | 48 | 1584 | Convertible |
| VW KARMANN GHIA Coupe (14, 34) Fitting Position Front Axle | 1970-07 - 1974-07 | 32 | 44 | 1285 | Coupe |
| VW KARMANN GHIA Coupe (14, 34) Construction Year from 196608 Fitting Position Front Axle | 1966-01 - 1969-12 | 32 | 44 | 1493 | Coupe |
| VW KARMANN GHIA Coupe (14, 34) Construction Year from 196608 Fitting Position Front Axle | 1961-08 - 1970-07 | 40 | 54 | 1493 | Coupe |
| VW KARMANN GHIA Convertible (14, 34) Fitting Position Front Axle | 1960-08 - 1964-12 | 25 | 34 | 1192 | Convertible |
| VW KARMANN GHIA Convertible (14, 34) Construction Year from 196608 Construction Year to 197012 Fitting Position Front Axle | 1964-07 - 1974-07 | 29 | 39 | 1285 | Convertible |
| VW KARMANN GHIA Convertible (14, 34) Construction Year from 196608 Fitting Position Front Axle | 1966-01 - 1969-12 | 32 | 44 | 1493 | Convertible |

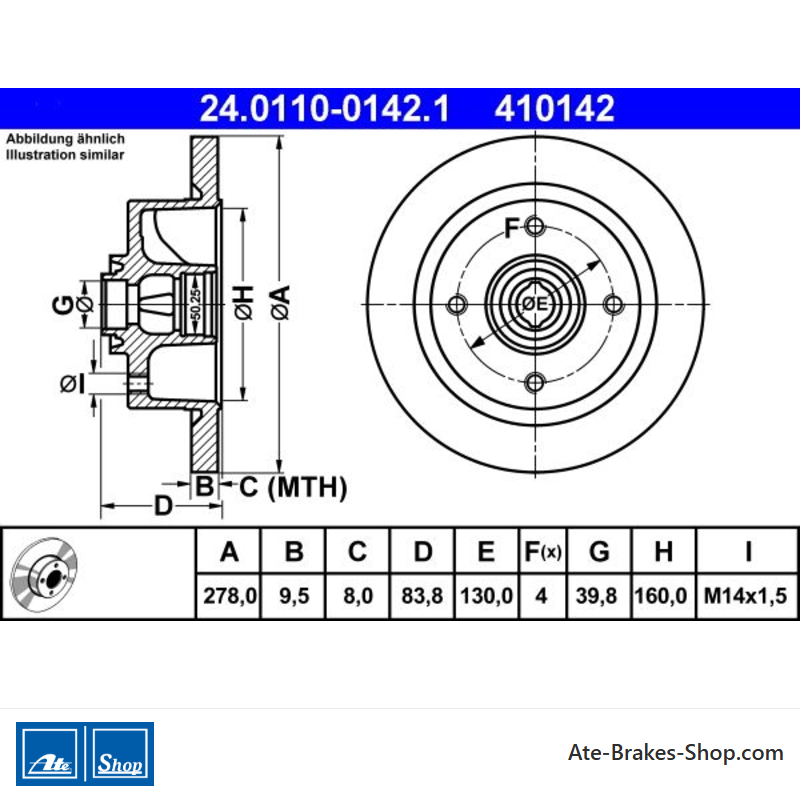

24.0110-0142.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Volkswagen (VW)
- Handelsnummer
- 410142
- Land van Herkomst
- China
- Hoogte
- 83,8
- Buitendiameter [mm]
- 278,0
- Remschijfdikte [mm]
- 9,5
- Type remschijf
- Solide
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 130,0
- Diameter van de ondersteuningsplaat [mm]
- 50,2
- Centreringsdiameter [mm]
- 39,8
- Binnendiameter [mm]
- 160,0
- Draadmaat
- M14x1,5
- Minimale dikte [mm]
- 8,0
Specifieke referenties
- ean13
- 4006633054799
- MPN
- 2401100142101
ATE 24.0110-0142.1
(240110-01421)
- Buitendiameter [mm]: 278,0
- Binnendiameter [mm]: 160,0
- Remschijfdikte [mm]: 9,5
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 410142
