ATE Originele 2-delige remschijf (24011001471) voor BMW
€ 65,34
(incl. btw)
€ 54,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0147.1
(240110-01471)
- Buitendiameter [mm]: 280,0
- Binnendiameter [mm]: 160,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410147
Logistieke informatie:
- Ean Code: 4006633054850
- Gewicht: 9.81kg
Specification of ATE 24.0110-0147.1 / 240110-01471 / 24011001471:
| OE Number | Reference info |
| BMW 34 21 1 117 730 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34211117730 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34 21 1 152 298 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34211152298 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34 21 1 165 255 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34211165255 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| BMW 7 (E23) Fitting Position Rear Axle | 1977-05 - 1979-08 | 125 | 170 | 2788 | Saloon |
| BMW 7 (E23) Construction Year to 198108 Fitting Position Rear Axle | 1977-09 - 1986-08 | 135 | 184 | 2788 | Saloon |
| BMW 7 (E23) Fitting Position Rear Axle | 1977-05 - 1979-08 | 135 | 184 | 2986 | Saloon |
| BMW 7 (E23) Construction Year to 198108 Fitting Position Rear Axle | 1979-09 - 1986-08 | 145 | 197 | 3210 | Saloon |
| BMW 7 (E23) Construction Year to 198108 Fitting Position Rear Axle | 1977-05 - 1986-08 | 145 | 197 | 3210 | Saloon |
| BMW 7 (E23) Construction Year to 198108 Fitting Position Rear Axle | 1980-04 - 1983-04 | 185 | 252 | 3210 | Saloon |

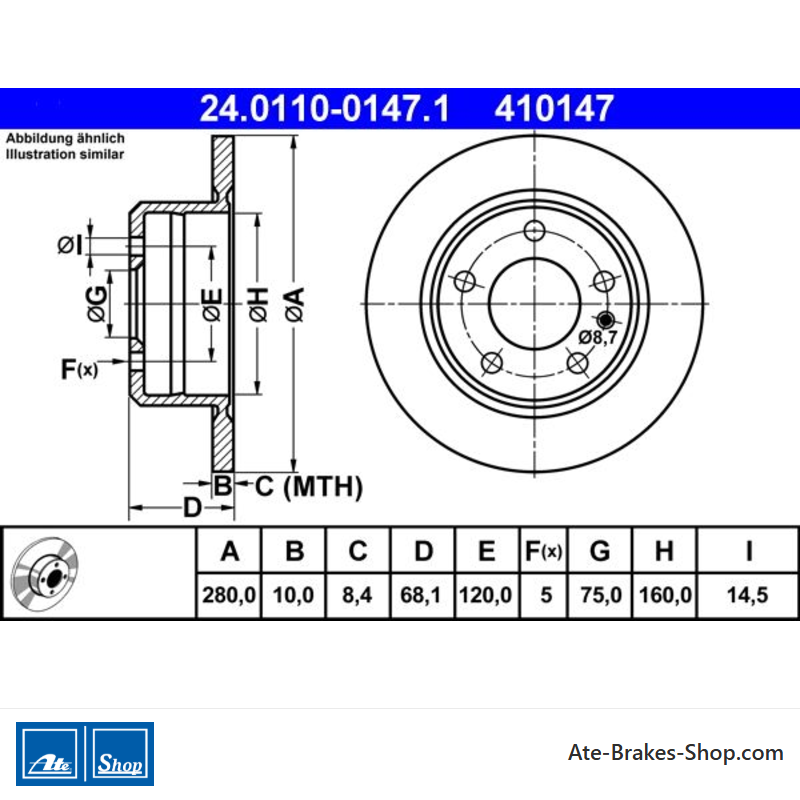

24.0110-0147.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- BMW
- Handelsnummer
- 410147
- Land van Herkomst
- China
- Hoogte
- 68,1
- Buitendiameter [mm]
- 280,0
- Remschijfdikte [mm]
- 10,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 120,0
- Centreringsdiameter [mm]
- 75,0
- Binnendiameter [mm]
- 160,0
- Bordiameter [mm]
- 14,5
- Minimale dikte [mm]
- 8,4
Specifieke referenties
- ean13
- 4006633054850
- MPN
- 2401100147101
ATE 24.0110-0147.1
(240110-01471)
- Buitendiameter [mm]: 280,0
- Binnendiameter [mm]: 160,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410147
