ATE Originele 2-delige remschijf (24011001511) voor Audi, Seat, Volkswagen (VW)
€ 43,56
(incl. btw)
€ 36,00 belastingexcl.

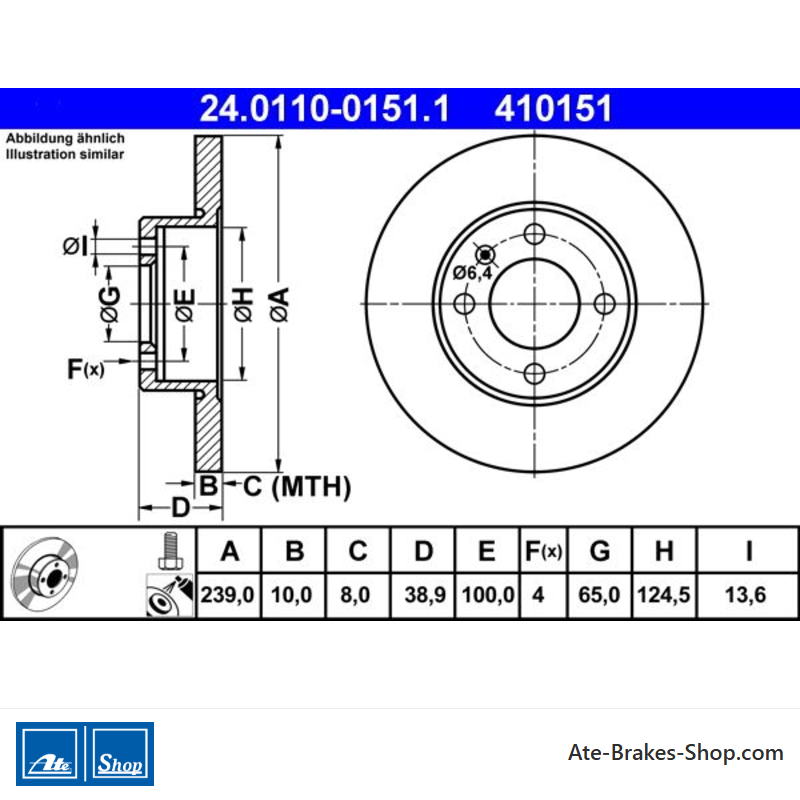

Onderdeelnummer:
ATE 24.0110-0151.1
(240110-01511)
- Buitendiameter [mm]: 239,0
- Binnendiameter [mm]: 124,5
- Remschijfdikte [mm]: 10,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 410151
Logistieke informatie:
- Ean Code: 4006633054911
- Gewicht: 6.12kg
Specification of ATE 24.0110-0151.1 / 240110-01511 / 24011001511:
| OE Number | Reference info |
| SEAT 811 615 301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 811615301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 811 615 301 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 811615301B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 811 615 301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 811615301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 823 615 301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 823615301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 811 615 301 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 811615301B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| AUDI 80 B1 Saloon (80, 82) Construction Year to 197607 Fitting Position Front Axle | 1972-05 - 1978-07 | 40 | 55 | 1297 | Saloon |
| AUDI 80 B1 Saloon (80, 82) Construction Year to 197607 Fitting Position Front Axle | 1972-05 - 1978-07 | 44 | 60 | 1297 | Saloon |
| AUDI 80 B1 Saloon (80, 82) Transmission Type Manual Transmission Fitting Position Front Axle | 1972-05 - 1975-08 | 55 | 75 | 1471 | Saloon |
| AUDI 80 B1 Saloon (80, 82) Construction Year to 197508 Transmission Type Manual Transmission Fitting Position Front Axle | 1972-05 - 1976-07 | 63 | 85 | 1471 | Saloon |
| AUDI 80 B1 Saloon (80, 82) Construction Year to 197607 Transmission Type Manual Transmission Fitting Position Front Axle | 1975-09 - 1978-07 | 55 | 75 | 1588 | Saloon |
| AUDI 80 B1 Saloon (80, 82) Construction Year to 197607 Transmission Type Manual Transmission Fitting Position Front Axle | 1975-09 - 1978-07 | 63 | 85 | 1588 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Fitting Position Front Axle | 1978-09 - 1981-07 | 40 | 55 | 1272 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Fitting Position Front Axle | 1978-09 - 1981-07 | 44 | 60 | 1272 | Saloon |
| AUDI 80 B2 Saloon (811, 813, 814, 819, 853) Construction Year to 198107 Fitting Position Front Axle | 1978-09 - 1986-07 | 44 | 60 | 1297 | Saloon |
| SEAT CORDOBA (6K1, 6K2) for PR number 1LA Fitting Position Front Axle | 1997-12 - 1999-04 | 40 | 54 | 1390 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Construction Year to 199612 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1994-06 - 2002-10 | 44 | 60 | 1389 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Construction Year from 199701 Construction Year to 199905 for PR number 1LA Fitting Position Front Axle | 1994-06 - 2002-10 | 44 | 60 | 1389 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Construction Year to 199612 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1996-09 - 2002-10 | 74 | 101 | 1390 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Construction Year from 199701 Construction Year to 199905 for PR number 1LA Fitting Position Front Axle | 1996-09 - 2002-10 | 74 | 101 | 1390 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Construction Year to 199905 for PR number 1LA Fitting Position Front Axle | 1994-05 - 1999-06 | 55 | 75 | 1595 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Construction Year from 199701 Construction Year to 199905 for PR number 1LA Fitting Position Front Axle | 1993-02 - 2002-10 | 55 | 75 | 1598 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Construction Year from 199701 Construction Year to 199905 for PR number 1LA Fitting Position Front Axle | 1996-07 - 2002-10 | 74 | 101 | 1595 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Construction Year from 199701 Construction Year to 199905 for PR number 1LA Fitting Position Front Axle | 1993-02 - 2002-09 | 66 | 90 | 1781 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Construction Year from 199701 Construction Year to 199905 for PR number 1LA Fitting Position Front Axle | 1993-02 - 1999-06 | 85 | 115 | 1984 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Construction Year from 199701 Construction Year to 199905 for PR number 1LA Fitting Position Front Axle | 1996-08 - 1999-06 | 47 | 64 | 1896 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Construction Year from 199701 Construction Year to 199905 for PR number 1LA Fitting Position Front Axle | 1996-08 - 2002-10 | 66 | 90 | 1896 | Saloon |
| SEAT CORDOBA (6K1, 6K2) Construction Year to 199905 for PR number 1LA Fitting Position Front Axle | 1997-03 - 2002-10 | 81 | 110 | 1896 | Saloon |
| SEAT CORDOBA Vario (6K5) Construction Year to 199612 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1996-09 - 2002-12 | 44 | 60 | 1389 | Estate |
| SEAT CORDOBA Vario (6K5) Construction Year from 199701 Construction Year to 199905 for PR number 1LA Fitting Position Front Axle | 1996-09 - 2002-12 | 44 | 60 | 1389 | Estate |
| SEAT CORDOBA Vario (6K5) Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 2000-02 - 2000-07 | 74 | 101 | 1390 | Estate |
| SEAT CORDOBA Vario (6K5) for PR number 1LA Fitting Position Front Axle | 2000-02 - 2000-07 | 74 | 101 | 1390 | Estate |
| SEAT CORDOBA Vario (6K5) Construction Year to 199905 for PR number 1LA Fitting Position Front Axle | 1997-05 - 1999-06 | 55 | 75 | 1595 | Estate |
| SEAT CORDOBA Vario (6K5) Construction Year from 199701 Construction Year to 199905 for PR number 1LA Fitting Position Front Axle | 1996-09 - 2002-12 | 55 | 75 | 1598 | Estate |
| SEAT CORDOBA Vario (6K5) Construction Year from 199701 Construction Year to 199905 for PR number 1LA Fitting Position Front Axle | 1996-09 - 2002-12 | 74 | 101 | 1595 | Estate |
| SEAT CORDOBA Vario (6K5) Construction Year from 199701 Construction Year to 199905 for PR number 1LA Fitting Position Front Axle | 1996-09 - 1999-06 | 47 | 64 | 1896 | Estate |
| SEAT CORDOBA Vario (6K5) Construction Year from 199701 Construction Year to 199905 for PR number 1LA Fitting Position Front Axle | 1996-08 - 2002-12 | 66 | 90 | 1896 | Estate |
| SEAT CORDOBA Vario (6K5) Construction Year to 199905 for PR number 1LA Fitting Position Front Axle | 1997-07 - 2002-12 | 81 | 110 | 1896 | Estate |
| SEAT IBIZA II (6K1) Construction Year to 199907 for PR number 1LA Fitting Position Front Axle | 1996-09 - 2002-02 | 37 | 50 | 999 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year from 199908 Vehicle Identification Number (VIN) to 6K-W-000 500 for PR number 1LA Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1996-09 - 2002-02 | 37 | 50 | 999 | Hatchback |
| SEAT IBIZA II (6K1) Vehicle Identification Number (VIN) to 6K-W-000 500 for PR number 1LA Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1999-10 - 2002-05 | 51 | 69 | 999 | Hatchback |
| SEAT IBIZA II (6K1) for PR number 1LA Fitting Position Front Axle | 1993-03 - 1996-09 | 33 | 45 | 1043 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year to 199907 for PR number 1LA Fitting Position Front Axle | 1993-03 - 1999-08 | 40 | 54 | 1272 | Hatchback |
| SEAT IBIZA II (6K1) for PR number 1LA Fitting Position Front Axle | 1997-12 - 1999-04 | 40 | 54 | 1390 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year to 199907 for PR number 1LA Fitting Position Front Axle | 1993-09 - 2002-02 | 44 | 60 | 1389 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year from 199908 Vehicle Identification Number (VIN) to 6K-W-000 500 for PR number 1LA Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1993-09 - 2002-02 | 44 | 60 | 1389 | Hatchback |
| SEAT IBIZA II (6K1) Vehicle Identification Number (VIN) to 6K-W-000 500 for PR number 1LA Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 2000-05 - 2002-02 | 55 | 75 | 1390 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year to 199907 for PR number 1LA Fitting Position Front Axle | 1997-06 - 2002-02 | 74 | 101 | 1390 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year from 199908 Vehicle Identification Number (VIN) to 6K-W-000 500 for PR number 1LA Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1997-06 - 2002-02 | 74 | 101 | 1390 | Hatchback |
| SEAT IBIZA II (6K1) for PR number 1LA Fitting Position Front Axle | 1994-09 - 1999-06 | 55 | 75 | 1595 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year to 199907 for PR number 1LA Fitting Position Front Axle | 1996-04 - 2002-02 | 74 | 101 | 1595 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year from 199908 Vehicle Identification Number (VIN) to 6K-W-000 500 for PR number 1LA Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1996-04 - 2002-02 | 74 | 101 | 1595 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year to 199907 for PR number 1LA Fitting Position Front Axle | 1993-03 - 2002-02 | 55 | 75 | 1598 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year from 199908 Vehicle Identification Number (VIN) to 6K-W-000 500 for PR number 1LA Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1993-03 - 2002-02 | 55 | 75 | 1598 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year to 199907 for PR number 1LA Fitting Position Front Axle | 1993-03 - 1999-08 | 66 | 90 | 1781 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year from 199402 for PR number 1LA Fitting Position Front Axle | 1993-11 - 1996-08 | 95 | 129 | 1781 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year to 199907 for PR number 1LA Fitting Position Front Axle | 1993-03 - 1999-08 | 85 | 115 | 1984 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year to 199907 for PR number 1LA Fitting Position Front Axle | 1996-08 - 1999-08 | 110 | 150 | 1984 | Hatchback |
| SEAT IBIZA II (6K1) for PR number 1LA Fitting Position Front Axle | 1993-04 - 1999-06 | 47 | 64 | 1896 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year to 199907 for PR number 1LA Fitting Position Front Axle | 1996-08 - 1999-08 | 47 | 64 | 1896 | Hatchback |
| SEAT IBIZA II (6K1) Vehicle Identification Number (VIN) to 6K-W-000 500 for PR number 1LA Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1999-08 - 2002-02 | 50 | 68 | 1896 | Hatchback |
| SEAT IBIZA II (6K1) for PR number 1LA Fitting Position Front Axle | 1993-03 - 1996-08 | 55 | 75 | 1896 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year to 199907 for PR number 1LA Fitting Position Front Axle | 1996-08 - 2002-02 | 66 | 90 | 1896 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year from 199908 Vehicle Identification Number (VIN) to 6K-W-000 500 for PR number 1LA Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1996-08 - 2002-02 | 66 | 90 | 1896 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year from 199703 Construction Year to 199907 for PR number 1LA Fitting Position Front Axle | 1997-02 - 2002-02 | 81 | 110 | 1896 | Hatchback |
| SEAT IBIZA II (6K1) Construction Year from 199908 Vehicle Identification Number (VIN) to 6K-W-000 500 for PR number 1LA Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1997-02 - 2002-02 | 81 | 110 | 1896 | Hatchback |
| SEAT CORDOBA VARIO Estate Van (6K5) for PR number 1LA Fitting Position Front Axle | 2000-08 - 2002-12 | 81 | 110 | 1896 | Estate Van |
| VW DERBY (86C, 80) Fitting Position Front Axle | 1981-10 - 1984-12 | 29 | 40 | 1043 | Saloon |
| VW DERBY (86C, 80) Fitting Position Front Axle | 1981-10 - 1983-07 | 37 | 50 | 1093 | Saloon |
| VW DERBY (86C, 80) Fitting Position Front Axle | 1983-08 - 1984-12 | 37 | 50 | 1272 | Saloon |
| VW DERBY (86C, 80) Fitting Position Front Axle | 1983-08 - 1984-12 | 40 | 55 | 1272 | Saloon |
| VW DERBY (86C, 80) Construction Year from 198110 Fitting Position Front Axle | 1981-08 - 1983-07 | 44 | 60 | 1272 | Saloon |
| VW DERBY (86C, 80) Fitting Position Front Axle | 1982-09 - 1984-12 | 55 | 75 | 1272 | Saloon |
| VW GOLF I (17) Construction Year from 197508 Fitting Position Front Axle | 1974-04 - 1983-07 | 37 | 50 | 1093 | Hatchback |
| VW GOLF I (17) Fitting Position Front Axle | 1976-08 - 1980-07 | 38 | 52 | 1093 | Hatchback |
| VW GOLF I (17) Fitting Position Front Axle | 1979-08 - 1983-07 | 44 | 60 | 1272 | Hatchback |
| VW GOLF I (17) Fitting Position Front Axle | 1976-08 - 1980-07 | 37 | 50 | 1471 | Hatchback |
| VW GOLF I (17) Fitting Position Front Axle | 1980-08 - 1983-07 | 40 | 54 | 1588 | Hatchback |
| VW GOLF II (19E, 1G1) Vehicle Identification Number (VIN) to 19-E-855000 Left-/right-hand drive vehicles for right-hand drive vehicles Fitting Position Front Axle | 1983-11 - 1985-08 | 33 | 45 | 1043 | Hatchback |
| VW GOLF II (19E, 1G1) Left-/right-hand drive vehicles for left-hand drive vehicles Fitting Position Front Axle | 1983-11 - 1985-08 | 33 | 45 | 1043 | Hatchback |
| VW GOLF II (19E, 1G1) Construction Year from 198608 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1985-08 - 1991-10 | 37 | 50 | 1043 | Hatchback |
| VW GOLF II (19E, 1G1) Vehicle Identification Number (VIN) to 19-E-855000 Left-/right-hand drive vehicles for right-hand drive vehicles Fitting Position Front Axle | 1985-08 - 1991-10 | 37 | 50 | 1043 | Hatchback |
| VW GOLF II (19E, 1G1) Construction Year to 198607 Left-/right-hand drive vehicles for left-hand drive vehicles Fitting Position Front Axle | 1985-08 - 1991-10 | 37 | 50 | 1043 | Hatchback |
| VW GOLF II (19E, 1G1) Construction Year from 198608 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1983-08 - 1987-06 | 40 | 55 | 1272 | Hatchback |
| VW GOLF II (19E, 1G1) Vehicle Identification Number (VIN) to 19-E-855000 Left-/right-hand drive vehicles for right-hand drive vehicles Fitting Position Front Axle | 1983-08 - 1987-06 | 40 | 55 | 1272 | Hatchback |
| VW GOLF II (19E, 1G1) Construction Year to 198607 Left-/right-hand drive vehicles for left-hand drive vehicles Fitting Position Front Axle | 1983-08 - 1987-06 | 40 | 55 | 1272 | Hatchback |
| VW GOLF II (19E, 1G1) Construction Year from 198608 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1986-06 - 1992-12 | 40 | 55 | 1272 | Hatchback |
| VW GOLF II (19E, 1G1) Vehicle Identification Number (VIN) to 19-E-855000 Left-/right-hand drive vehicles for right-hand drive vehicles Fitting Position Front Axle | 1986-06 - 1992-12 | 40 | 55 | 1272 | Hatchback |
| VW GOLF II (19E, 1G1) Construction Year to 198607 Left-/right-hand drive vehicles for left-hand drive vehicles Fitting Position Front Axle | 1986-06 - 1992-12 | 40 | 55 | 1272 | Hatchback |
| VW GOLF II (19E, 1G1) Construction Year to 198607 Fitting Position Front Axle | 1986-02 - 1991-10 | 53 | 72 | 1595 | Hatchback |
| VW GOLF II (19E, 1G1) Construction Year from 198904 Fitting Position Rear Axle | 1988-08 - 1991-12 | 118 | 160 | 1781 | Hatchback |
| VW GOLF II (19E, 1G1) Vehicle Identification Number (VIN) to 19-E-855000 Left-/right-hand drive vehicles for right-hand drive vehicles Fitting Position Front Axle not for country specific design Japan | 1983-08 - 1991-10 | 40 | 54 | 1588 | Hatchback |
| VW GOLF II (19E, 1G1) Construction Year to 198607 Left-/right-hand drive vehicles for left-hand drive vehicles Fitting Position Front Axle not for country specific design Japan | 1983-08 - 1991-10 | 40 | 54 | 1588 | Hatchback |
| VW GOLF II (19E, 1G1) Construction Year from 198608 Transmission Type Manual Transmission Fitting Position Front Axle | 1983-08 - 1991-10 | 40 | 54 | 1588 | Hatchback |
| VW JETTA I (16) Construction Year to 198307 Fitting Position Front Axle | 1979-08 - 1984-02 | 37 | 50 | 1093 | Saloon |
| VW JETTA I (16) Construction Year to 198307 Fitting Position Front Axle | 1982-08 - 1984-02 | 43 | 58 | 1272 | Saloon |
| VW JETTA I (16) Construction Year to 198307 Fitting Position Front Axle | 1979-08 - 1984-02 | 44 | 60 | 1272 | Saloon |
| VW JETTA I (16) Construction Year to 198307 Fitting Position Front Axle not for country specific design Japan | 1980-08 - 1984-02 | 40 | 54 | 1588 | Saloon |
| VW JETTA II (19E, 1G2, 165) Construction Year from 198608 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1984-01 - 1987-06 | 40 | 55 | 1272 | Saloon |
| VW JETTA II (19E, 1G2, 165) Vehicle Identification Number (VIN) to 16-E-855000 Left-/right-hand drive vehicles for right-hand drive vehicles Fitting Position Front Axle | 1984-01 - 1987-06 | 40 | 55 | 1272 | Saloon |
| VW JETTA II (19E, 1G2, 165) Construction Year to 198607 Left-/right-hand drive vehicles for left-hand drive vehicles Fitting Position Front Axle | 1984-01 - 1987-06 | 40 | 55 | 1272 | Saloon |
| VW JETTA II (19E, 1G2, 165) Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1987-06 - 1991-12 | 40 | 55 | 1272 | Saloon |
| VW JETTA II (19E, 1G2, 165) Vehicle Identification Number (VIN) to 16-E-855000 Left-/right-hand drive vehicles for right-hand drive vehicles Fitting Position Front Axle | 1987-06 - 1991-12 | 40 | 55 | 1272 | Saloon |
| VW JETTA II (19E, 1G2, 165) Construction Year from 198608 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1984-01 - 1986-10 | 43 | 58 | 1272 | Saloon |
| VW JETTA II (19E, 1G2, 165) Vehicle Identification Number (VIN) to 16-E-855000 Left-/right-hand drive vehicles for right-hand drive vehicles Fitting Position Front Axle | 1984-01 - 1986-10 | 43 | 58 | 1272 | Saloon |
| VW JETTA II (19E, 1G2, 165) Construction Year to 198607 Left-/right-hand drive vehicles for left-hand drive vehicles Fitting Position Front Axle | 1984-01 - 1986-10 | 43 | 58 | 1272 | Saloon |
| VW JETTA II (19E, 1G2, 165) Construction Year to 198607 Fitting Position Front Axle | 1986-03 - 1991-10 | 53 | 72 | 1595 | Saloon |
| VW JETTA II (19E, 1G2, 165) Vehicle Identification Number (VIN) to 16-E-855000 Left-/right-hand drive vehicles for right-hand drive vehicles not for country specific design Japan Fitting Position Front Axle | 1984-01 - 1991-10 | 40 | 54 | 1588 | Saloon |
| VW JETTA II (19E, 1G2, 165) Construction Year to 198607 Left-/right-hand drive vehicles for left-hand drive vehicles not for country specific design Japan Fitting Position Front Axle | 1984-01 - 1991-10 | 40 | 54 | 1588 | Saloon |
| VW JETTA II (19E, 1G2, 165) Construction Year from 198608 Transmission Type Manual Transmission Fitting Position Front Axle | 1984-01 - 1991-10 | 40 | 54 | 1588 | Saloon |
| VW PASSAT B1 (32) Fitting Position Front Axle | 1973-05 - 1980-07 | 40 | 55 | 1272 | Hatchback |
| VW PASSAT B1 (32) Fitting Position Front Axle | 1978-01 - 1980-07 | 44 | 60 | 1272 | Hatchback |
| VW PASSAT B1 (32) Fitting Position Front Axle | 1973-05 - 1978-01 | 40 | 55 | 1297 | Hatchback |
| VW PASSAT B1 (32) Fitting Position Front Axle | 1973-05 - 1978-01 | 44 | 60 | 1297 | Hatchback |
| VW PASSAT B1 (32) Fitting Position Front Axle | 1977-08 - 1980-07 | 37 | 50 | 1471 | Hatchback |
| VW PASSAT B2 (32B) Construction Year to 198207 Fitting Position Front Axle | 1980-08 - 1983-07 | 40 | 55 | 1272 | Hatchback |
| VW PASSAT B2 (32B) Construction Year to 198207 Fitting Position Front Axle | 1980-08 - 1986-07 | 44 | 60 | 1272 | Hatchback |
| VW PASSAT B2 (32B) Construction Year to 198108 Fitting Position Front Axle | 1980-08 - 1988-03 | 40 | 54 | 1588 | Hatchback |
| VW PASSAT B2 Variant (33B) Fitting Position Rear Axle | 1986-01 - 1988-03 | 66 | 90 | 1781 | Estate |
| VW PASSAT B2 Variant (33B) Construction Year from 198408 Fitting Position Rear Axle | 1984-05 - 1988-03 | 85 | 116 | 1994 | Estate |
| VW PASSAT B2 Variant (33B) Fitting Position Rear Axle | 1985-08 - 1988-03 | 88 | 120 | 2226 | Estate |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year to 199310 Fitting Position Rear Axle | 1988-08 - 1996-08 | 118 | 160 | 1781 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year to 199310 Fitting Position Rear Axle | 1990-10 - 1996-08 | 85 | 115 | 1984 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year from 199401 Fitting Position Rear Axle | 1990-10 - 1996-08 | 85 | 115 | 1984 | Saloon |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year to 199310 Fitting Position Rear Axle | 1988-08 - 1997-05 | 118 | 160 | 1781 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year to 199310 Fitting Position Rear Axle | 1990-03 - 1996-12 | 85 | 115 | 1984 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year from 199401 Fitting Position Rear Axle | 1990-03 - 1996-12 | 85 | 115 | 1984 | Estate |
| VW POLO II (86C, 80) Fitting Position Front Axle | 1981-10 - 1986-10 | 29 | 40 | 1043 | Hatchback |
| VW POLO II (86C, 80) Fitting Position Front Axle | 1985-08 - 1992-01 | 33 | 45 | 1043 | Hatchback |
| VW POLO II (86C, 80) Fitting Position Front Axle | 1989-08 - 1994-09 | 33 | 45 | 1043 | Hatchback |
| VW POLO II (86C, 80) Construction Year to 198307 Fitting Position Front Axle | 1981-10 - 1989-09 | 37 | 50 | 1093 | Hatchback |
| VW POLO II (86C, 80) Fitting Position Front Axle | 1983-08 - 1988-07 | 40 | 55 | 1272 | Hatchback |
| VW POLO II (86C, 80) Fitting Position Front Axle | 1987-07 - 1994-09 | 40 | 55 | 1272 | Hatchback |
| VW POLO II (86C, 80) Fitting Position Front Axle | 1981-10 - 1983-07 | 44 | 60 | 1272 | Hatchback |
| VW POLO II (86C, 80) Fitting Position Front Axle | 1982-09 - 1989-09 | 55 | 75 | 1272 | Hatchback |
| VW POLO II (86C, 80) Fitting Position Front Axle | 1989-10 - 1991-03 | 55 | 75 | 1272 | Hatchback |
| VW POLO II (86C, 80) Fitting Position Front Axle | 1986-08 - 1990-07 | 33 | 45 | 1272 | Hatchback |
| VW POLO II (86C, 80) Fitting Position Front Axle | 1990-10 - 1994-09 | 35 | 48 | 1398 | Hatchback |
| VW POLO Coupe (86C, 80) Fitting Position Front Axle | 1982-05 - 1986-10 | 29 | 40 | 1043 | Coupe |
| VW POLO Coupe (86C, 80) Fitting Position Front Axle | 1985-08 - 1992-01 | 33 | 45 | 1043 | Coupe |
| VW POLO Coupe (86C, 80) Fitting Position Front Axle | 1989-08 - 1994-09 | 33 | 45 | 1043 | Coupe |
| VW POLO Coupe (86C, 80) Fitting Position Front Axle | 1981-10 - 1983-07 | 37 | 50 | 1093 | Coupe |
| VW POLO Coupe (86C, 80) Fitting Position Front Axle | 1983-08 - 1987-06 | 40 | 55 | 1272 | Coupe |
| VW POLO Coupe (86C, 80) Fitting Position Front Axle | 1987-07 - 1994-08 | 40 | 55 | 1272 | Coupe |
| VW POLO Coupe (86C, 80) Fitting Position Front Axle | 1982-08 - 1988-07 | 43 | 58 | 1272 | Coupe |
| VW POLO Coupe (86C, 80) Fitting Position Front Axle | 1981-10 - 1983-07 | 44 | 60 | 1272 | Coupe |
| VW POLO Coupe (86C, 80) Fitting Position Front Axle | 1982-09 - 1989-09 | 55 | 75 | 1272 | Coupe |
| VW POLO Coupe (86C, 80) Fitting Position Front Axle | 1989-10 - 1994-09 | 55 | 75 | 1272 | Coupe |
| VW POLO Coupe (86C, 80) Fitting Position Front Axle | 1991-03 - 1994-09 | 57 | 78 | 1272 | Coupe |
| VW POLO Coupe (86C, 80) Fitting Position Front Axle | 1986-08 - 1990-08 | 33 | 45 | 1272 | Coupe |
| VW POLO Coupe (86C, 80) Fitting Position Front Axle | 1990-08 - 1994-09 | 35 | 48 | 1398 | Coupe |
| VW POLO CLASSIC (86C, 80) Fitting Position Front Axle | 1985-01 - 1986-10 | 29 | 40 | 1043 | Saloon |
| VW POLO CLASSIC (86C, 80) Construction Year to 198812 Fitting Position Front Axle | 1985-01 - 1994-09 | 33 | 45 | 1043 | Saloon |
| VW POLO CLASSIC (86C, 80) Fitting Position Front Axle | 1985-01 - 1987-07 | 40 | 55 | 1272 | Saloon |
| VW POLO CLASSIC (86C, 80) Fitting Position Front Axle | 1987-07 - 1994-09 | 40 | 55 | 1272 | Saloon |
| VW POLO CLASSIC (86C, 80) Fitting Position Front Axle | 1986-08 - 1988-12 | 33 | 45 | 1272 | Saloon |
| VW POLO CLASSIC (86C, 80) Fitting Position Front Axle | 1990-10 - 1994-09 | 35 | 48 | 1398 | Saloon |
| VW POLO III CLASSIC (6V2) Vehicle Identification Number (VIN) to 6K-V-022628 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1998-01 - 1999-08 | 40 | 54 | 1390 | Saloon |
| VW POLO III CLASSIC (6V2) Vehicle Identification Number (VIN) to 6K-V-022628 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1995-12 - 2001-09 | 44 | 60 | 1390 | Saloon |
| VW POLO III CLASSIC (6V2) Vehicle Identification Number (VIN) to 6K-V-022628 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1999-10 - 2001-09 | 55 | 75 | 1390 | Saloon |
| VW POLO Variant (6V5) Vehicle Identification Number (VIN) to 6K-V-022628 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1998-01 - 1999-08 | 40 | 54 | 1390 | Estate |
| VW POLO Variant (6V5) Vehicle Identification Number (VIN) to 6K-V-022628 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1997-05 - 2001-09 | 44 | 60 | 1390 | Estate |
| VW POLO Variant (6V5) Vehicle Identification Number (VIN) to 6K-V-022628 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1999-10 - 2001-09 | 55 | 75 | 1390 | Estate |
| VW SANTANA (32B) Construction Year to 198207 Fitting Position Front Axle | 1981-08 - 1983-07 | 44 | 60 | 1272 | Saloon |
| VW SANTANA (32B) Construction Year to 198108 Fitting Position Front Axle | 1981-08 - 1984-12 | 40 | 54 | 1588 | Saloon |
| VW POLO Hatchback Van (86CF) Fitting Position Front Axle | 1992-08 - 1994-07 | 33 | 45 | 1043 | Hatchback Van |
| VW POLO Hatchback Van (86CF) Fitting Position Front Axle | 1992-08 - 1994-07 | 40 | 54 | 1272 | Hatchback Van |
| VW POLO Hatchback Van (86CF) Fitting Position Front Axle | 1992-08 - 1994-07 | 35 | 48 | 1398 | Hatchback Van |
| VW POLO Estate Van (6V5) Vehicle Identification Number (VIN) to 6K-V-022628 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1997-08 - 1999-12 | 44 | 60 | 1390 | Estate Van |
| VW POLO Estate Van (6V5) Vehicle Identification Number (VIN) to 6K-V-022628 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 2000-06 - 2001-09 | 55 | 75 | 1390 | Estate Van |
24.0110-0151.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Audi
Volkswagen (VW)
Zetel - Handelsnummer
- 410151
- Land van Herkomst
- Italië
- Aanvullende informatie
- met bouten/schroeven
- Hoogte
- 38,9
- Buitendiameter [mm]
- 239,0
- Remschijfdikte [mm]
- 10,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 65,0
- Binnendiameter [mm]
- 124,5
- Bordiameter [mm]
- 13,6
- Minimale dikte [mm]
- 8,0
Specifieke referenties
- ean13
- 4006633054911
- MPN
- 2401100151101
ATE 24.0110-0151.1
(240110-01511)
- Buitendiameter [mm]: 239,0
- Binnendiameter [mm]: 124,5
- Remschijfdikte [mm]: 10,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 410151
