ATE Originele 2-delige remschijf (24011001761) voor BMW
€ 76,23
(incl. btw)
€ 63,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0176.1
(240110-01761)
- Buitendiameter [mm]: 284,0
- Binnendiameter [mm]: 180,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410176
Logistieke informatie:
- Ean Code: 4006633055314
- Gewicht: 9.69kg
Specification of ATE 24.0110-0176.1 / 240110-01761 / 24011001761:
| OE Number | Reference info |
| BMW 34 21 1 152 221 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34211152221 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34 21 1 163 150 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34211163150 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| BMW 7 (E23) Construction Year from 198109 Construction Year to 198605 Fitting Position Rear Axle | 1977-09 - 1986-08 | 135 | 184 | 2788 | Saloon |
| BMW 7 (E23) Construction Year from 198109 Construction Year to 198604 Fitting Position Rear Axle | 1979-09 - 1986-08 | 145 | 197 | 3210 | Saloon |
| BMW 7 (E23) Construction Year from 198109 Construction Year to 198207 Fitting Position Rear Axle | 1977-05 - 1986-08 | 145 | 197 | 3210 | Saloon |
| BMW 7 (E23) Construction Year from 198109 Construction Year to 198604 Fitting Position Rear Axle | 1977-05 - 1986-08 | 145 | 197 | 3210 | Saloon |
| BMW 7 (E23) Construction Year to 198604 Fitting Position Rear Axle | 1984-05 - 1986-09 | 136 | 185 | 3430 | Saloon |
| BMW 7 (E23) Construction Year to 198604 Fitting Position Rear Axle | 1985-04 - 1986-08 | 141 | 192 | 3430 | Saloon |
| BMW 7 (E23) Construction Year to 198604 Fitting Position Rear Axle | 1982-09 - 1986-09 | 160 | 218 | 3430 | Saloon |
| BMW 7 (E23) Fitting Position Rear Axle | 1979-09 - 1982-09 | 160 | 218 | 3453 | Saloon |
| BMW 7 (E23) Construction Year from 198109 Fitting Position Rear Axle | 1980-04 - 1983-04 | 185 | 252 | 3210 | Saloon |
| BMW 7 (E23) Construction Year to 198605 Fitting Position Rear Axle | 1983-05 - 1986-08 | 185 | 252 | 3430 | Saloon |

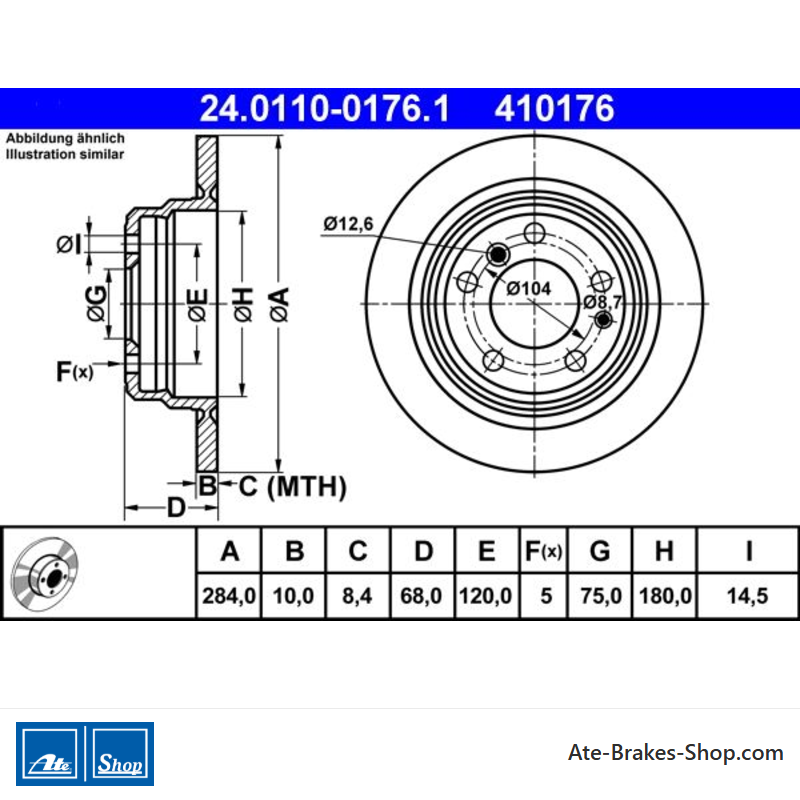

24.0110-0176.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- BMW
- Handelsnummer
- 410176
- Land van Herkomst
- Tsjechië
- Hoogte
- 68,0
- Buitendiameter [mm]
- 284,0
- Remschijfdikte [mm]
- 10,0
- Type remschijf
- Solide
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 120,0
- Centreringsdiameter [mm]
- 75,0
- Binnendiameter [mm]
- 180,0
- Bordiameter [mm]
- 14,5
- Minimale dikte [mm]
- 8,4
Specifieke referenties
- ean13
- 4006633055314
- MPN
- 2401100176101
ATE 24.0110-0176.1
(240110-01761)
- Buitendiameter [mm]: 284,0
- Binnendiameter [mm]: 180,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410176
