ATE Originele 2-delige remschijf (24011002031) voor Seat, Volkswagen (VW)
€ 61,71
(incl. btw)
€ 51,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0203.1
(240110-02031)
- Buitendiameter [mm]: 226,0
- Binnendiameter [mm]: 121,4
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410203
Logistieke informatie:
- Ean Code: 4006633142908
- Gewicht: 9.47kg
Specification of ATE 24.0110-0203.1 / 240110-02031 / 24011002031:
| OE Number | Reference info |
| SEAT 357 615 601 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 357615601B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 357 615 601 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 357615601B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SEAT TOLEDO I (1L2) Construction Year from 199609 Construction Year to 199809 for PR number 1KK Fitting Position Rear Axle | 1991-05 - 1999-03 | 54 | 73 | 1595 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199609 Construction Year to 199809 for PR number 1KK Fitting Position Rear Axle | 1993-01 - 1999-03 | 55 | 75 | 1595 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year to 199809 for PR number 1KK Fitting Position Rear Axle | 1996-11 - 1999-03 | 74 | 101 | 1595 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199609 for PR number 1KK Fitting Position Rear Axle | 1991-05 - 1996-12 | 65 | 88 | 1781 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199609 for PR number 1KK Fitting Position Rear Axle | 1993-11 - 1996-12 | 66 | 90 | 1781 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199609 Construction Year to 199809 for PR number 1KK Fitting Position Rear Axle | 1991-05 - 1999-03 | 85 | 115 | 1984 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199403 Construction Year to 199608 Fitting Position Rear Axle | 1993-11 - 1999-03 | 110 | 150 | 1984 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199609 Construction Year to 199809 for PR number 1KK Fitting Position Rear Axle | 1993-11 - 1999-03 | 110 | 150 | 1984 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199609 Construction Year to 199809 for PR number 1KK Fitting Position Rear Axle | 1995-12 - 1999-03 | 47 | 64 | 1896 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199609 Construction Year to 199809 for PR number 1KK Fitting Position Rear Axle | 1991-05 - 1999-03 | 50 | 68 | 1896 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199609 Construction Year to 199809 for PR number 1KK Fitting Position Rear Axle | 1991-05 - 1999-03 | 55 | 75 | 1896 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year from 199609 Construction Year to 199809 for PR number 1KK Fitting Position Rear Axle | 1995-08 - 1999-03 | 66 | 90 | 1896 | Hatchback |
| SEAT TOLEDO I (1L2) Construction Year to 199809 for PR number 1KK Fitting Position Rear Axle | 1996-11 - 1999-03 | 81 | 110 | 1896 | Hatchback |
| VW CORRADO (53I) Construction Year to 199507 Fitting Position Rear Axle | 1991-08 - 1995-12 | 140 | 190 | 2861 | Coupe |
| VW GOLF III (1H1) Rim Hole Number 5 -Hole Fitting Position Rear Axle | 1991-11 - 1997-08 | 85 | 115 | 1984 | Hatchback |
| VW GOLF III (1H1) Rim Hole Number 5 -Hole Fitting Position Rear Axle | 1992-08 - 1997-12 | 110 | 150 | 1984 | Hatchback |
| VW GOLF III (1H1) Rim Hole Number 5 -Hole Fitting Position Rear Axle | 1992-01 - 1997-08 | 128 | 174 | 2792 | Hatchback |
| VW GOLF III (1H1) Brake Caliper Colour red Rim Hole Number 5 -Hole Fitting Position Rear Axle | 1996-04 - 1997-08 | 81 | 110 | 1896 | Hatchback |
| VW PASSAT B3/B4 (3A2, 35I) Fitting Position Rear Axle | 1994-01 - 1996-08 | 110 | 150 | 1984 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year to 199310 Fitting Position Rear Axle | 1991-06 - 1996-08 | 128 | 174 | 2792 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year from 199310 Fitting Position Rear Axle | 1991-06 - 1996-08 | 128 | 174 | 2792 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Fitting Position Rear Axle | 1996-03 - 1996-08 | 81 | 110 | 1896 | Saloon |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year to 199612 Fitting Position Rear Axle | 1994-01 - 1997-05 | 110 | 150 | 1984 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year from 199310 Construction Year to 199612 Fitting Position Rear Axle | 1991-06 - 1997-05 | 128 | 174 | 2792 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year to 199310 Fitting Position Rear Axle | 1991-06 - 1997-05 | 128 | 174 | 2792 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year to 199612 Fitting Position Rear Axle | 1996-03 - 1997-05 | 81 | 110 | 1896 | Estate |
| VW VENTO (1H2) Rim Hole Number 5 -Hole Fitting Position Rear Axle | 1991-11 - 1998-09 | 85 | 115 | 1984 | Saloon |
| VW VENTO (1H2) Rim Hole Number 5 -Hole Fitting Position Rear Axle | 1996-05 - 1997-12 | 79 | 107 | 1984 | Saloon |
| VW VENTO (1H2) Rim Hole Number 5 -Hole Fitting Position Rear Axle | 1992-01 - 1998-09 | 128 | 174 | 2792 | Saloon |

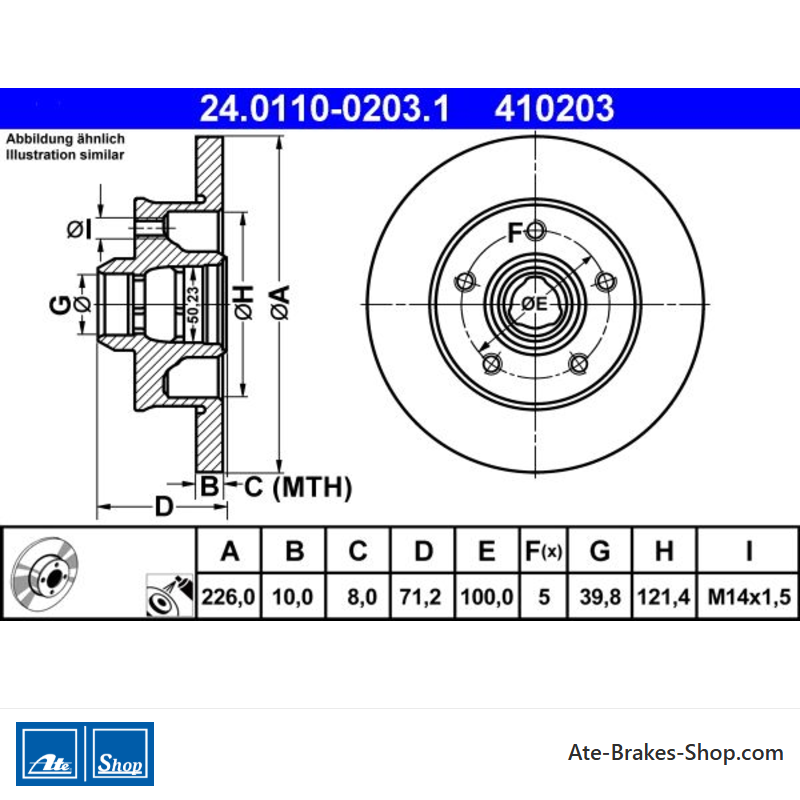

24.0110-0203.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Volkswagen (VW)
Zetel - Handelsnummer
- 410203
- Land van Herkomst
- Italië
- Aanvullende informatie
- zonder ABS-sensorring
- Hoogte
- 71,2
- Buitendiameter [mm]
- 226,0
- Remschijfdikte [mm]
- 10,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 100,0
- Diameter van de ondersteuningsplaat [mm]
- 50,2
- Centreringsdiameter [mm]
- 39,8
- Binnendiameter [mm]
- 121,4
- Draadmaat
- M14x1,5
- Minimale dikte [mm]
- 8,0
Specifieke referenties
- ean13
- 4006633142908
- MPN
- 2401100203101
ATE 24.0110-0203.1
(240110-02031)
- Buitendiameter [mm]: 226,0
- Binnendiameter [mm]: 121,4
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410203
