ATE Originele 2-delige remschijf (24011002091) voor Alfa Romeo, Fiat, Lancia
€ 65,34
(incl. btw)
€ 54,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0209.1
(240110-02091)
- Buitendiameter [mm]: 251,4
- Binnendiameter [mm]: 127,5
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410209
Logistieke informatie:
- Ean Code: 4006633269933
- Gewicht: 7.42kg
Specification of ATE 24.0110-0209.1 / 240110-02091 / 24011002091:
| OE Number | Reference info |
| FIAT 60801786 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 82439939 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 82440275 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 60653479 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 7789267 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 60569164 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 60801787 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 60658566 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 71738912 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 60743390 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FIAT 60814804 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| ALFA ROMEO 147 (937_) Fitting Position Rear Axle | 2001-01 - 2010-03 | 77 | 105 | 1598 | Hatchback |
| ALFA ROMEO 147 (937_) Fitting Position Rear Axle | 2009-01 - 2010-03 | 77 | 105 | 1598 | Hatchback |
| ALFA ROMEO 147 (937_) Fitting Position Rear Axle | 2001-01 - 2010-03 | 88 | 120 | 1598 | Hatchback |
| ALFA ROMEO 147 (937_) Fitting Position Rear Axle | 2001-03 - 2009-12 | 88 | 120 | 1598 | Hatchback |
| ALFA ROMEO 147 (937_) Fitting Position Rear Axle | 2001-01 - 2010-03 | 110 | 150 | 1970 | Hatchback |
| ALFA ROMEO 147 (937_) Fitting Position Rear Axle | 2003-06 - 2010-03 | 74 | 101 | 1910 | Hatchback |
| ALFA ROMEO 147 (937_) Fitting Position Rear Axle | 2001-04 - 2010-03 | 85 | 115 | 1910 | Hatchback |
| ALFA ROMEO 147 (937_) Fitting Position Rear Axle | 2005-07 - 2010-03 | 88 | 120 | 1910 | Hatchback |
| ALFA ROMEO 147 (937_) Fitting Position Rear Axle | 2003-09 - 2004-09 | 93 | 126 | 1910 | Hatchback |
| ALFA ROMEO 147 (937_) Fitting Position Rear Axle | 2004-10 - 2010-03 | 100 | 136 | 1910 | Hatchback |
| ALFA ROMEO 147 (937_) Fitting Position Rear Axle | 2002-11 - 2010-03 | 103 | 140 | 1910 | Hatchback |
| ALFA ROMEO 147 (937_) Construction Year from 200507 Fitting Position Rear Axle | 2004-09 - 2010-03 | 110 | 150 | 1910 | Hatchback |
| ALFA ROMEO 147 (937_) Fitting Position Rear Axle | 2008-06 - 2010-03 | 125 | 170 | 1910 | Hatchback |
| ALFA ROMEO 156 (932_) Construction Year from 199710 Construction Year to 200202 Fitting Position Rear Axle | 1997-09 - 2005-09 | 82 | 112 | 1598 | Saloon |
| ALFA ROMEO 156 (932_) Construction Year from 199710 Construction Year to 200202 Fitting Position Rear Axle | 1997-09 - 2005-09 | 88 | 120 | 1598 | Saloon |
| ALFA ROMEO 156 (932_) Construction Year to 200202 Fitting Position Rear Axle | 1997-09 - 2005-09 | 103 | 140 | 1747 | Saloon |
| ALFA ROMEO 156 (932_) Construction Year from 199710 Fitting Position Rear Axle | 1997-09 - 2000-10 | 106 | 144 | 1747 | Saloon |
| ALFA ROMEO 156 (932_) Construction Year to 200202 Fitting Position Rear Axle | 2000-10 - 2002-03 | 110 | 150 | 1970 | Saloon |
| ALFA ROMEO 156 (932_) Construction Year from 199710 Construction Year to 200202 Fitting Position Rear Axle | 1997-09 - 2002-06 | 114 | 155 | 1970 | Saloon |
| ALFA ROMEO 156 (932_) Construction Year to 200202 Fitting Position Rear Axle | 2001-03 - 2005-09 | 119 | 162 | 1970 | Saloon |
| ALFA ROMEO 156 (932_) Construction Year from 199710 Fitting Position Rear Axle | 1997-09 - 2002-09 | 140 | 190 | 2492 | Saloon |
| ALFA ROMEO 156 (932_) Construction Year to 200202 Fitting Position Rear Axle | 2000-10 - 2005-09 | 141 | 192 | 2492 | Saloon |
| ALFA ROMEO 156 (932_) Construction Year from 199710 Fitting Position Rear Axle | 1997-09 - 2000-10 | 77 | 105 | 1910 | Saloon |
| ALFA ROMEO 156 (932_) Fitting Position Rear Axle | 2000-10 - 2001-05 | 81 | 110 | 1910 | Saloon |
| ALFA ROMEO 156 (932_) Construction Year to 200202 Fitting Position Rear Axle | 2001-05 - 2005-09 | 85 | 115 | 1910 | Saloon |
| ALFA ROMEO 156 (932_) Construction Year from 199710 Construction Year to 200010 Fitting Position Rear Axle | 1997-09 - 2003-09 | 100 | 136 | 2387 | Saloon |
| ALFA ROMEO 156 (932_) Construction Year to 200202 Fitting Position Rear Axle | 2000-10 - 2005-09 | 103 | 140 | 2387 | Saloon |
| ALFA ROMEO 156 Sportwagon (932_) Construction Year to 200202 Fitting Position Rear Axle | 2000-01 - 2005-09 | 82 | 112 | 1598 | Estate |
| ALFA ROMEO 156 Sportwagon (932_) Construction Year to 200202 Fitting Position Rear Axle | 2000-05 - 2006-05 | 88 | 120 | 1598 | Estate |
| ALFA ROMEO 156 Sportwagon (932_) Construction Year to 200202 Fitting Position Rear Axle | 1997-02 - 2006-05 | 103 | 140 | 1747 | Estate |
| ALFA ROMEO 156 Sportwagon (932_) Fitting Position Rear Axle | 2000-05 - 2000-10 | 106 | 144 | 1747 | Estate |
| ALFA ROMEO 156 Sportwagon (932_) Construction Year to 200202 Fitting Position Rear Axle | 2000-10 - 2002-03 | 110 | 150 | 1970 | Estate |
| ALFA ROMEO 156 Sportwagon (932_) Construction Year to 200202 Fitting Position Rear Axle | 2000-05 - 2002-06 | 114 | 155 | 1970 | Estate |
| ALFA ROMEO 156 Sportwagon (932_) Construction Year to 200202 Fitting Position Rear Axle | 1997-02 - 2003-08 | 140 | 190 | 2492 | Estate |
| ALFA ROMEO 156 Sportwagon (932_) Construction Year to 200202 Fitting Position Rear Axle | 1997-02 - 2006-05 | 141 | 192 | 2492 | Estate |
| ALFA ROMEO 156 Sportwagon (932_) Fitting Position Rear Axle | 2000-05 - 2000-10 | 77 | 105 | 1910 | Estate |
| ALFA ROMEO 156 Sportwagon (932_) Fitting Position Rear Axle | 2000-10 - 2001-05 | 81 | 110 | 1910 | Estate |
| ALFA ROMEO 156 Sportwagon (932_) Construction Year to 200202 Fitting Position Rear Axle | 2001-05 - 2006-05 | 85 | 115 | 1910 | Estate |
| ALFA ROMEO 156 Sportwagon (932_) Construction Year to 200010 Fitting Position Rear Axle | 2000-05 - 2003-09 | 100 | 136 | 2387 | Estate |
| ALFA ROMEO 156 Sportwagon (932_) Construction Year to 200202 Fitting Position Rear Axle | 2000-10 - 2006-05 | 103 | 140 | 2387 | Estate |
| ALFA ROMEO 164 (164_) Fitting Position Rear Axle not for vehicle equipment line/trim level Super | 1992-09 - 1998-09 | 148 | 201 | 1996 | Saloon |
| ALFA ROMEO 164 (164_) Construction Year from 199109 Fitting Position Rear Axle not for vehicle equipment line/trim level Super | 1991-03 - 1992-09 | 150 | 204 | 1996 | Saloon |
| ALFA ROMEO 164 (164_) Construction Year to 199108 Fitting Position Rear Axle | 1991-03 - 1992-09 | 150 | 204 | 1996 | Saloon |
| ALFA ROMEO 164 (164_) Fitting Position Rear Axle | 1992-09 - 1998-09 | 120 | 163 | 2492 | Saloon |
| ALFA ROMEO 164 (164_) Construction Year to 199211 Fitting Position Rear Axle | 1992-09 - 1998-09 | 132 | 180 | 2959 | Saloon |
| ALFA ROMEO 164 (164_) Construction Year from 198709 Construction Year to 199108 Fitting Position Rear Axle | 1987-06 - 1992-09 | 135 | 184 | 2959 | Saloon |
| ALFA ROMEO 164 (164_) Construction Year from 199109 Fitting Position Rear Axle | 1987-06 - 1992-09 | 135 | 184 | 2959 | Saloon |
| ALFA ROMEO 164 (164_) Construction Year to 199108 Fitting Position Rear Axle | 1987-11 - 1991-09 | 138 | 188 | 2959 | Saloon |
| ALFA ROMEO 164 (164_) Construction Year from 198709 Construction Year to 199108 Fitting Position Rear Axle | 1987-06 - 1992-09 | 141 | 192 | 2959 | Saloon |
| ALFA ROMEO 164 (164_) Construction Year from 199109 Fitting Position Rear Axle | 1990-09 - 1992-09 | 147 | 200 | 2959 | Saloon |
| ALFA ROMEO 164 (164_) Construction Year to 199108 Fitting Position Rear Axle | 1990-09 - 1992-09 | 147 | 200 | 2959 | Saloon |
| ALFA ROMEO 164 (164_) Construction Year from 199212 Fitting Position Rear Axle | 1992-09 - 1998-09 | 155 | 211 | 2959 | Saloon |
| ALFA ROMEO 164 (164_) Fitting Position Rear Axle | 1993-04 - 1995-02 | 168 | 228 | 2959 | Saloon |
| ALFA ROMEO 164 (164_) Construction Year from 199212 Fitting Position Rear Axle | 1992-09 - 1998-09 | 171 | 233 | 2959 | Saloon |
| ALFA ROMEO 164 (164_) Fitting Position Rear Axle | 1992-09 - 1998-09 | 92 | 125 | 2499 | Saloon |
| ALFA ROMEO 164 (164_) Construction Year from 198709 Construction Year to 199108 Fitting Position Rear Axle | 1987-06 - 1992-09 | 84 | 114 | 2499 | Saloon |
| FIAT CROMA (154_) Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1986-03 - 1990-09 | 83 | 113 | 1995 | Hatchback |
| FIAT CROMA (154_) Construction Year from 199011 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1987-10 - 1996-08 | 85 | 116 | 1995 | Hatchback |
| FIAT CROMA (154_) Construction Year to 199010 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1987-03 - 1992-09 | 88 | 120 | 1995 | Hatchback |
| FIAT CROMA (154_) Construction Year from 199011 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1987-03 - 1992-09 | 88 | 120 | 1995 | Hatchback |
| FIAT CROMA (154_) Construction Year from 199011 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1987-06 - 1996-08 | 110 | 150 | 1995 | Hatchback |
| FIAT CROMA (154_) Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1986-11 - 1988-11 | 111 | 151 | 1995 | Hatchback |
| FIAT CROMA (154_) Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1985-12 - 1990-06 | 114 | 155 | 1995 | Hatchback |
| LANCIA DELTA I (831_) Construction Year from 198711 Fitting Position Rear Axle | 1986-11 - 1988-08 | 122 | 166 | 1995 | Hatchback |
| LANCIA DELTA I (831_) Construction Year from 198906 Fitting Position Rear Axle | 1986-12 - 1992-12 | 130 | 177 | 1995 | Hatchback |
| LANCIA DELTA I (831_) Construction Year from 198711 Fitting Position Rear Axle | 1986-12 - 1992-12 | 130 | 177 | 1995 | Hatchback |
| LANCIA DELTA I (831_) Construction Year from 198711 Fitting Position Rear Axle | 1987-10 - 1991-12 | 133 | 181 | 1995 | Hatchback |
| LANCIA DELTA I (831_) Construction Year from 198906 Fitting Position Rear Axle | 1989-03 - 1991-09 | 144 | 196 | 1995 | Hatchback |
| LANCIA DELTA I (831_) Fitting Position Rear Axle | 1989-03 - 1991-09 | 144 | 196 | 1995 | Hatchback |
| LANCIA DELTA I (831_) Construction Year to 199310 Fitting Position Rear Axle | 1993-06 - 1994-01 | 155 | 211 | 1995 | Hatchback |
| LANCIA DELTA I (831_) Construction Year from 199311 Fitting Position Rear Axle | 1993-06 - 1994-01 | 155 | 211 | 1995 | Hatchback |
| LANCIA DELTA II (836_) Construction Year from 199311 Fitting Position Rear Axle | 1993-06 - 1999-08 | 102 | 139 | 1995 | Hatchback |
| LANCIA THEMA (834_) Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1986-03 - 1988-09 | 83 | 113 | 1995 | Saloon |
| LANCIA THEMA (834_) Construction Year from 198902 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1987-09 - 1992-05 | 85 | 115 | 1995 | Saloon |
| LANCIA THEMA (834_) Construction Year to 198901 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1987-09 - 1992-05 | 85 | 115 | 1995 | Saloon |
| LANCIA THEMA (834_) Construction Year from 198902 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1988-09 - 1992-05 | 86 | 117 | 1995 | Saloon |
| LANCIA THEMA (834_) Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1984-11 - 1988-09 | 88 | 120 | 1995 | Saloon |
| LANCIA THEMA (834_) Construction Year from 198910 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1989-02 - 1992-05 | 104 | 141 | 1995 | Saloon |
| LANCIA THEMA (834_) Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1989-02 - 1992-05 | 104 | 141 | 1995 | Saloon |
| LANCIA THEMA (834_) Construction Year from 198910 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1988-05 - 1992-08 | 108 | 147 | 1995 | Saloon |
| LANCIA THEMA (834_) Construction Year from 198902 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1986-07 - 1990-05 | 110 | 150 | 1995 | Saloon |
| LANCIA THEMA (834_) Construction Year to 198901 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1986-07 - 1990-05 | 110 | 150 | 1995 | Saloon |
| LANCIA THEMA (834_) Construction Year from 199210 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1992-08 - 1993-12 | 112 | 152 | 1995 | Saloon |
| LANCIA THEMA (834_) Construction Year to 198901 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1984-11 - 1989-12 | 122 | 166 | 1995 | Saloon |
| LANCIA THEMA (834_) Construction Year from 198910 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1989-04 - 1992-05 | 130 | 177 | 1995 | Saloon |
| LANCIA THEMA (834_) Construction Year from 198910 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1988-12 - 1990-06 | 133 | 181 | 1995 | Saloon |
| LANCIA THEMA (834_) Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1992-10 - 1994-07 | 148 | 201 | 1995 | Saloon |
| LANCIA THEMA (834_) Construction Year from 198902 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1988-06 - 1992-05 | 108 | 147 | 2849 | Saloon |
| LANCIA THEMA (834_) Construction Year to 198901 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1988-06 - 1992-05 | 108 | 147 | 2849 | Saloon |
| LANCIA THEMA (834_) Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1984-11 - 1988-09 | 110 | 150 | 2849 | Saloon |
| LANCIA THEMA (834_) Construction Year to 198901 Fitting Position Rear Axle | 1987-10 - 1992-05 | 151 | 205 | 2927 | Saloon |
| LANCIA THEMA (834_) Construction Year from 198902 Fitting Position Rear Axle | 1987-10 - 1992-05 | 151 | 205 | 2927 | Saloon |
| LANCIA THEMA (834_) Construction Year to 198901 Fitting Position Rear Axle | 1987-09 - 1989-05 | 158 | 215 | 2927 | Saloon |
| LANCIA THEMA (834_) Construction Year from 198902 Fitting Position Rear Axle | 1987-09 - 1989-05 | 158 | 215 | 2927 | Saloon |
| LANCIA THEMA (834_) Construction Year from 199210 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1992-08 - 1994-07 | 126 | 171 | 2959 | Saloon |
| LANCIA THEMA SW (834_) Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1989-02 - 1992-05 | 104 | 141 | 1995 | Estate |
| LANCIA THEMA SW (834_) Construction Year from 198910 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1989-05 - 1992-08 | 108 | 147 | 1995 | Estate |
| LANCIA THEMA SW (834_) Construction Year from 198910 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1988-12 - 1992-03 | 110 | 150 | 1995 | Estate |
| LANCIA THEMA SW (834_) Construction Year to 199209 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1992-05 - 1994-07 | 112 | 152 | 1995 | Estate |
| LANCIA THEMA SW (834_) Construction Year from 199210 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1992-05 - 1994-07 | 112 | 152 | 1995 | Estate |
| LANCIA THEMA SW (834_) Construction Year from 199210 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1989-04 - 1993-03 | 130 | 177 | 1995 | Estate |
| LANCIA THEMA SW (834_) Construction Year from 198910 Construction Year to 199209 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1989-04 - 1993-03 | 130 | 177 | 1995 | Estate |
| LANCIA THEMA SW (834_) Construction Year from 198910 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1988-12 - 1990-06 | 133 | 181 | 1995 | Estate |
| LANCIA THEMA SW (834_) Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1992-11 - 1994-07 | 148 | 201 | 1995 | Estate |
| LANCIA THEMA SW (834_) Construction Year from 199210 Special Purpose Vehicle for armoured vehicles Fitting Position Rear Axle | 1992-09 - 1994-07 | 126 | 171 | 2959 | Estate |

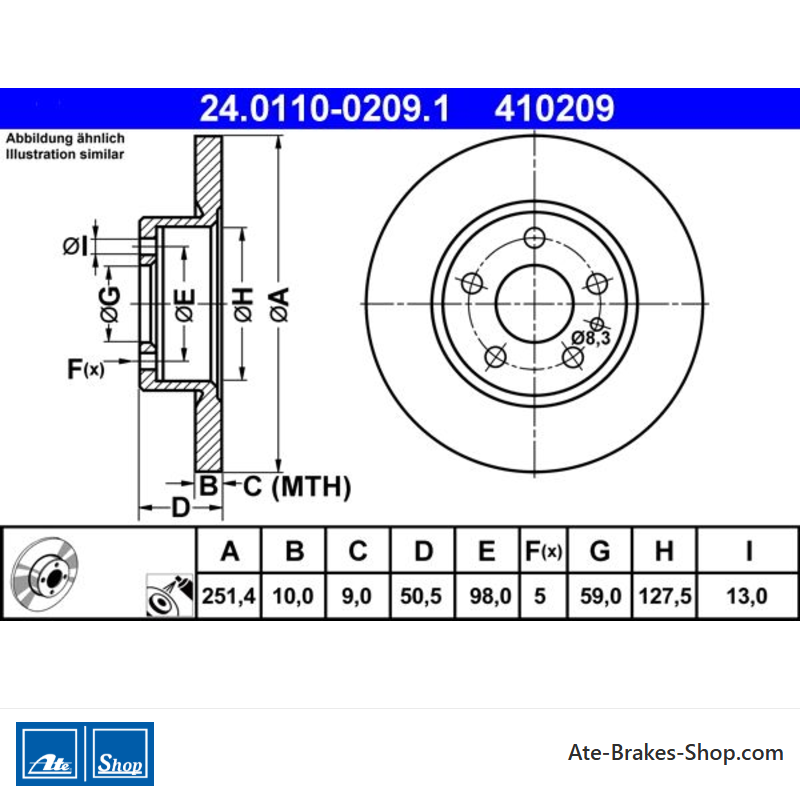

24.0110-0209.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Alfa Romeo
Fiat
Lancia - Handelsnummer
- 410209
- Land van Herkomst
- Tsjechië
- Hoogte
- 50,5
- Buitendiameter [mm]
- 251,4
- Remschijfdikte [mm]
- 10,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 98,0
- Centreringsdiameter [mm]
- 59,0
- Binnendiameter [mm]
- 127,5
- Bordiameter [mm]
- 13,0
- Minimale dikte [mm]
- 9,0
Specifieke referenties
- ean13
- 4006633269933
- MPN
- 2401100209101
ATE 24.0110-0209.1
(240110-02091)
- Buitendiameter [mm]: 251,4
- Binnendiameter [mm]: 127,5
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410209
