ATE Originele 2-delige remschijf (24011002231) voor Ford, Seat, Volkswagen (VW)
€ 72,60
(incl. btw)
€ 60,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0223.1
(240110-02231)
- Buitendiameter [mm]: 268,0
- Binnendiameter [mm]: 154,5
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410223
Logistieke informatie:
- Ean Code: 4006633295314
- Gewicht: 8.46kg
Specification of ATE 24.0110-0223.1 / 240110-02231 / 24011002231:
| OE Number | Reference info |
| FORD 1001094 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1045995 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| FORD 1023605 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 7M0 615 601 C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 7M0615601C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 7M0 615 601 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 7M0615601A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 7M0 615 601 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 7M0615601B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 7M0 615 601 A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 7M0615601A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 7M0 615 601 C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 7M0615601C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 7M0 615 601 B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 7M0615601B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| FORD GALAXY I (WGR) Construction Year to 200604 Fitting Position Rear Axle | 1995-11 - 2006-05 | 85 | 116 | 1998 | MPV |
| FORD GALAXY I (WGR) Construction Year to 200604 Fitting Position Rear Axle | 2001-09 - 2006-05 | 103 | 140 | 2295 | MPV |
| FORD GALAXY I (WGR) Construction Year to 200604 Fitting Position Rear Axle | 1997-01 - 2006-05 | 107 | 146 | 2295 | MPV |
| FORD GALAXY I (WGR) Construction Year to 200003 Fitting Position Rear Axle | 1995-11 - 2000-04 | 128 | 174 | 2792 | MPV |
| FORD GALAXY I (WGR) Construction Year to 200003 Fitting Position Rear Axle | 1996-04 - 2000-04 | 128 | 174 | 2792 | MPV |
| FORD GALAXY I (WGR) Construction Year from 199601 Construction Year to 200604 Fitting Position Rear Axle | 1995-03 - 2006-05 | 66 | 90 | 1896 | MPV |
| FORD GALAXY I (WGR) Construction Year from 199710 Construction Year to 200003 Fitting Position Rear Axle | 1997-08 - 2000-04 | 81 | 110 | 1896 | MPV |
| FORD GALAXY I (WGR) Construction Year to 200604 Fitting Position Rear Axle | 2000-04 - 2006-05 | 85 | 115 | 1896 | MPV |
| FORD GALAXY I (WGR) Construction Year to 200604 Fitting Position Rear Axle | 2003-02 - 2006-05 | 96 | 130 | 1896 | MPV |
| FORD GALAXY I (WGR) Fitting Position Rear Axle | 2005-05 - 2006-05 | 110 | 150 | 1896 | MPV |
| FORD GALAXY MK I VAN (WGR) Fitting Position Rear Axle | 2002-11 - 2006-03 | 103 | 140 | 2295 | Box Body/MPV |
| SEAT ALHAMBRA (7V8, 7V9) Construction Year from 199805 Vehicle Identification Number (VIN) to 7M-1-530756 Fitting Position Rear Axle | 1997-10 - 2010-03 | 110 | 150 | 1781 | MPV |
| SEAT ALHAMBRA (7V8, 7V9) Fitting Position Rear Axle | 1996-04 - 2010-03 | 85 | 115 | 1984 | MPV |
| SEAT ALHAMBRA (7V8, 7V9) Fitting Position Rear Axle | 1996-04 - 2010-03 | 66 | 90 | 1896 | MPV |
| SEAT ALHAMBRA (7V8, 7V9) Construction Year from 199710 Construction Year to 200005 Fitting Position Rear Axle | 1996-08 - 2000-06 | 81 | 110 | 1896 | MPV |
| SEAT ALHAMBRA (7V8, 7V9) Vehicle Identification Number (VIN) to 7M-1-530756 Fitting Position Rear Axle | 2000-06 - 2010-03 | 85 | 115 | 1896 | MPV |
| SEAT ALHAMBRA (7V8, 7V9) Fitting Position Rear Axle | 2002-11 - 2008-11 | 96 | 131 | 1896 | MPV |
| SEAT ALHAMBRA (7V8, 7V9) Fitting Position Rear Axle | 2005-11 - 2010-03 | 103 | 140 | 1968 | MPV |
| SEAT ALHAMBRA VAN (7V8, 7V9) Fitting Position Rear Axle | 2002-11 - 2008-11 | 96 | 131 | 1896 | Box Body/MPV |
| VW SHARAN (7M8, 7M9, 7M6) Vehicle Identification Number (VIN) to 7M-1-070000 Fitting Position Rear Axle | 1997-09 - 2010-03 | 110 | 150 | 1781 | MPV |
| VW SHARAN (7M8, 7M9, 7M6) Fitting Position Rear Axle | 1995-09 - 2010-03 | 85 | 115 | 1984 | MPV |
| VW SHARAN (7M8, 7M9, 7M6) Fitting Position Rear Axle | 2006-04 - 2010-03 | 85 | 115 | 1984 | MPV |
| VW SHARAN (7M8, 7M9, 7M6) Fitting Position Rear Axle | 1995-09 - 2000-02 | 110 | 150 | 1984 | MPV |
| VW SHARAN (7M8, 7M9, 7M6) Fitting Position Rear Axle | 1995-09 - 2000-04 | 128 | 174 | 2792 | MPV |
| VW SHARAN (7M8, 7M9, 7M6) Fitting Position Rear Axle | 1996-11 - 2000-04 | 128 | 174 | 2792 | MPV |
| VW SHARAN (7M8, 7M9, 7M6) Fitting Position Rear Axle | 1995-09 - 2010-03 | 66 | 90 | 1896 | MPV |
| VW SHARAN (7M8, 7M9, 7M6) Fitting Position Rear Axle | 1996-09 - 2000-04 | 81 | 110 | 1896 | MPV |
| VW SHARAN (7M8, 7M9, 7M6) Construction Year from 200005 Fitting Position Rear Axle | 2000-04 - 2010-03 | 85 | 115 | 1896 | MPV |
| VW SHARAN (7M8, 7M9, 7M6) Fitting Position Rear Axle | 2002-11 - 2010-03 | 96 | 130 | 1896 | MPV |
| VW SHARAN (7M8, 7M9, 7M6) Fitting Position Rear Axle | 2005-11 - 2010-03 | 100 | 136 | 1968 | MPV |
| VW SHARAN (7M8, 7M9, 7M6) Fitting Position Rear Axle | 2005-11 - 2010-03 | 103 | 140 | 1968 | MPV |
| VW SHARAN Box Body/MPV (7M_) Fitting Position Rear Axle | 1996-09 - 2002-07 | 85 | 116 | 1984 | Box Body/MPV |
| VW SHARAN Box Body/MPV (7M_) Fitting Position Rear Axle | 1996-09 - 2000-04 | 128 | 174 | 2792 | Box Body/MPV |
| VW SHARAN Box Body/MPV (7M_) Fitting Position Rear Axle | 2001-08 - 2003-05 | 150 | 204 | 2792 | Box Body/MPV |
| VW SHARAN Box Body/MPV (7M_) Fitting Position Rear Axle | 1996-09 - 2003-05 | 66 | 90 | 1896 | Box Body/MPV |
| VW SHARAN Box Body/MPV (7M_) Fitting Position Rear Axle | 1996-09 - 2003-05 | 81 | 110 | 1896 | Box Body/MPV |
| VW SHARAN Box Body/MPV (7M_) Fitting Position Rear Axle | 2000-04 - 2010-03 | 85 | 116 | 1896 | Box Body/MPV |
| VW SHARAN Box Body/MPV (7M_) Fitting Position Rear Axle | 2002-11 - 2003-05 | 96 | 131 | 1896 | Box Body/MPV |

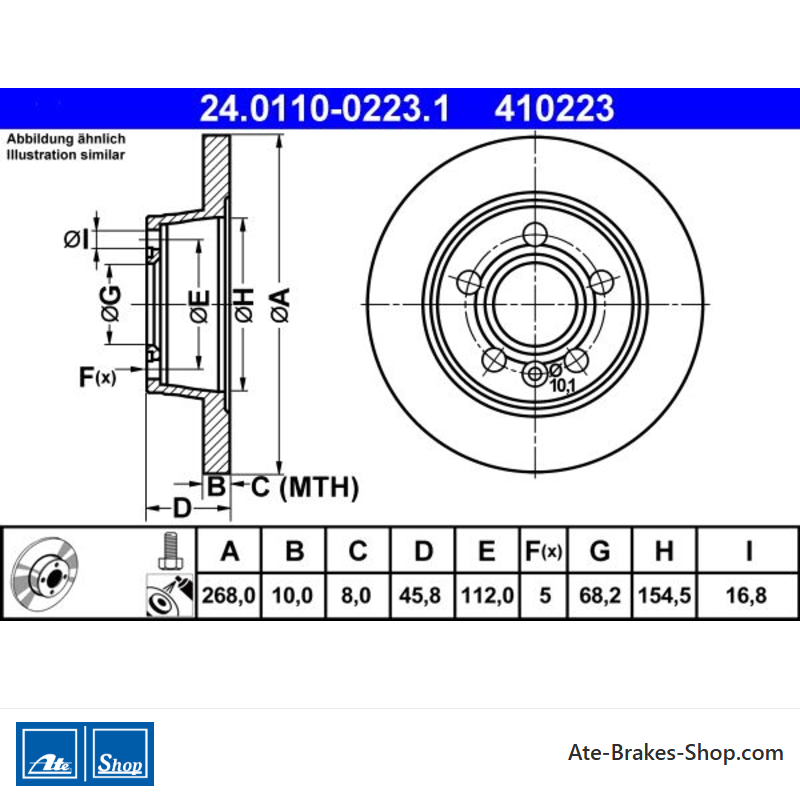

24.0110-0223.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Ford
Volkswagen (VW)
Zetel - Handelsnummer
- 410223
- Land van Herkomst
- Italië
- Aanvullende informatie
- met bouten/schroeven
- Hoogte
- 45,8
- Buitendiameter [mm]
- 268,0
- Remschijfdikte [mm]
- 10,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 112,0
- Centreringsdiameter [mm]
- 68,2
- Binnendiameter [mm]
- 154,5
- Bordiameter [mm]
- 16,8
- Minimale dikte [mm]
- 8,0
Specifieke referenties
- ean13
- 4006633295314
- MPN
- 2401100223101
ATE 24.0110-0223.1
(240110-02231)
- Buitendiameter [mm]: 268,0
- Binnendiameter [mm]: 154,5
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410223
