ATE Originele 2-delige remschijf (24011002811) voor Mitsubishi
€ 94,38
(incl. btw)
€ 78,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0281.1
(240110-02811)
- Buitendiameter [mm]: 262,0
- Binnendiameter [mm]: 168,0
- Remschijfdikte [mm]: 9,5
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410281
Logistieke informatie:
- Ean Code: 4006633221122
- Gewicht: 8.38kg

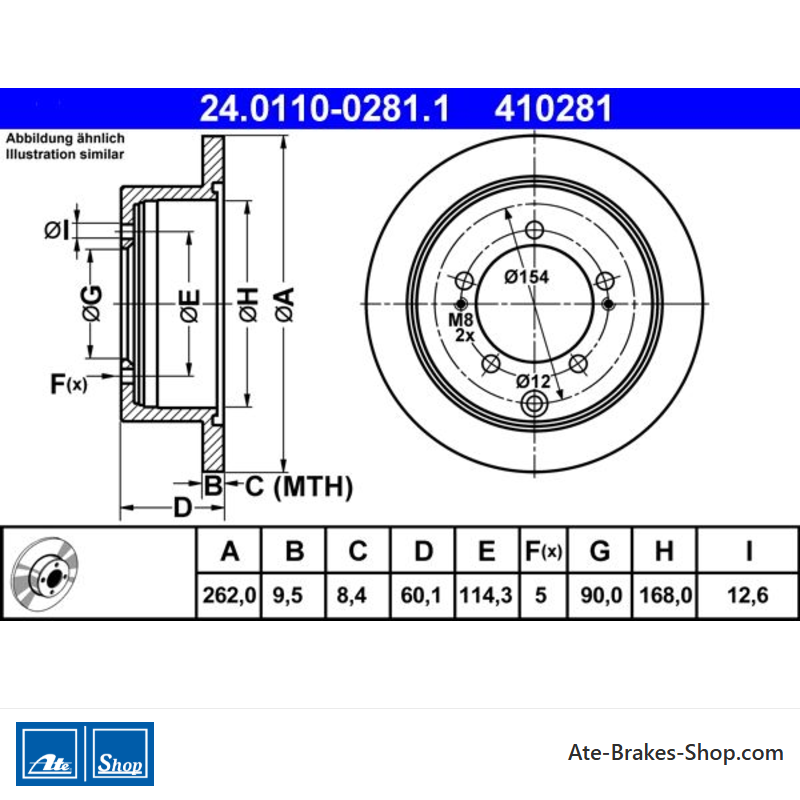

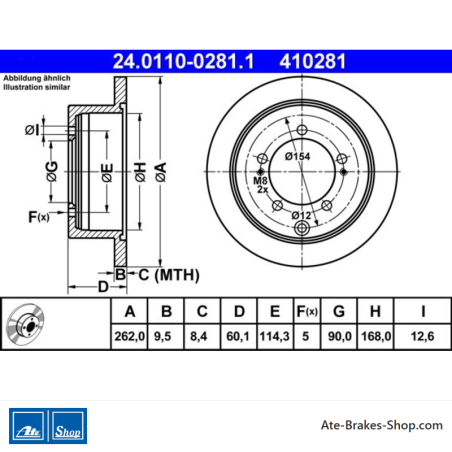

Specification of ATE 24.0110-0281.1 / 240110-02811 / 24011002811:
| OE Number | Reference info |
| MITSUBISHI MR493489 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MITSUBISHI PAJERO PININ I (H6_W, H7_W) Construction Year to 200502 Fitting Position Rear Axle | 2001-11 - 2007-06 | 84 | 114 | 1834 | Closed Off-Road Vehicle |
| MITSUBISHI PAJERO PININ I (H6_W, H7_W) Fitting Position Rear Axle | 1999-10 - 2001-10 | 88 | 120 | 1834 | Closed Off-Road Vehicle |
| MITSUBISHI PAJERO PININ I (H6_W, H7_W) Fitting Position Rear Axle | 2000-10 - 2007-06 | 95 | 129 | 1999 | Closed Off-Road Vehicle |
24.0110-0281.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Mitsubishi
- Handelsnummer
- 410281
- Land van Herkomst
- China
- Hoogte
- 60,1
- Buitendiameter [mm]
- 262,0
- Remschijfdikte [mm]
- 9,5
- Type remschijf
- Solide
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 90,0
- Binnendiameter [mm]
- 168,0
- Bordiameter [mm]
- 12,6
- Minimale dikte [mm]
- 8,4
Specifieke referenties
- ean13
- 4006633221122
- MPN
- 2401100281102
ATE 24.0110-0281.1
(240110-02811)
- Buitendiameter [mm]: 262,0
- Binnendiameter [mm]: 168,0
- Remschijfdikte [mm]: 9,5
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410281
