ATE Originele 2-delige remschijf (24011003051) voor Toyota
€ 101,64
(incl. btw)
€ 84,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0305.1
(240110-03051)
- Buitendiameter [mm]: 288,0
- Binnendiameter [mm]: 170,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410305
Logistieke informatie:
- Ean Code: 4006633243179
- Gewicht: 10.35kg
Specification of ATE 24.0110-0305.1 / 240110-03051 / 24011003051:
| OE Number | Reference info |
| TOYOTA 42431-20430 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA AVENSIS (_T22_) Construction Year to 200106 Fitting Position Rear Axle | 2000-10 - 2003-02 | 81 | 110 | 1598 | Saloon |
| TOYOTA AVENSIS (_T22_) Fitting Position Rear Axle | 1997-09 - 2000-10 | 81 | 110 | 1762 | Saloon |
| TOYOTA AVENSIS (_T22_) Construction Year to 200106 Fitting Position Rear Axle | 2000-10 - 2003-02 | 95 | 129 | 1794 | Saloon |
| TOYOTA AVENSIS (_T22_) Construction Year from 200010 Fitting Position Rear Axle | 1997-09 - 2000-10 | 94 | 128 | 1998 | Saloon |
| TOYOTA AVENSIS (_T22_) Construction Year to 200106 Fitting Position Rear Axle | 2000-10 - 2003-02 | 110 | 150 | 1998 | Saloon |
| TOYOTA AVENSIS (_T22_) Construction Year to 200106 Fitting Position Rear Axle | 1997-09 - 2003-02 | 66 | 90 | 1974 | Saloon |
| TOYOTA AVENSIS (_T22_) Construction Year to 200106 Fitting Position Rear Axle | 1999-10 - 2003-02 | 81 | 110 | 1995 | Saloon |
| TOYOTA AVENSIS Liftback (_T22_) Construction Year to 200106 Fitting Position Rear Axle | 2000-10 - 2003-02 | 81 | 110 | 1598 | Hatchback |
| TOYOTA AVENSIS Liftback (_T22_) Fitting Position Rear Axle | 1997-09 - 2000-10 | 81 | 110 | 1762 | Hatchback |
| TOYOTA AVENSIS Liftback (_T22_) Construction Year to 200106 Fitting Position Rear Axle | 2000-10 - 2003-02 | 95 | 129 | 1794 | Hatchback |
| TOYOTA AVENSIS Liftback (_T22_) Construction Year from 200010 Fitting Position Rear Axle | 1997-09 - 2000-10 | 94 | 128 | 1998 | Hatchback |
| TOYOTA AVENSIS Liftback (_T22_) Construction Year to 200106 Fitting Position Rear Axle | 2000-10 - 2003-02 | 110 | 150 | 1998 | Hatchback |
| TOYOTA AVENSIS Liftback (_T22_) Construction Year to 200106 Fitting Position Rear Axle | 1997-09 - 2003-02 | 66 | 90 | 1974 | Hatchback |
| TOYOTA AVENSIS Liftback (_T22_) Construction Year to 200106 Fitting Position Rear Axle | 1999-10 - 2003-02 | 81 | 110 | 1995 | Hatchback |
| TOYOTA AVENSIS Estate (_T22_) Construction Year from 200010 Construction Year to 200106 Fitting Position Rear Axle | 2000-07 - 2003-02 | 81 | 110 | 1598 | Estate |
| TOYOTA AVENSIS Estate (_T22_) Construction Year to 200106 Fitting Position Rear Axle | 2000-10 - 2003-02 | 95 | 129 | 1794 | Estate |
| TOYOTA AVENSIS Estate (_T22_) Construction Year from 200010 Fitting Position Rear Axle | 1997-09 - 2000-10 | 94 | 128 | 1998 | Estate |
| TOYOTA AVENSIS Estate (_T22_) Construction Year to 200106 Fitting Position Rear Axle | 2000-10 - 2003-02 | 110 | 150 | 1998 | Estate |
| TOYOTA AVENSIS Estate (_T22_) Construction Year to 200106 Fitting Position Rear Axle | 1997-09 - 2003-02 | 66 | 90 | 1974 | Estate |
| TOYOTA AVENSIS Estate (_T22_) Construction Year to 200106 Fitting Position Rear Axle | 1999-10 - 2003-02 | 81 | 110 | 1995 | Estate |

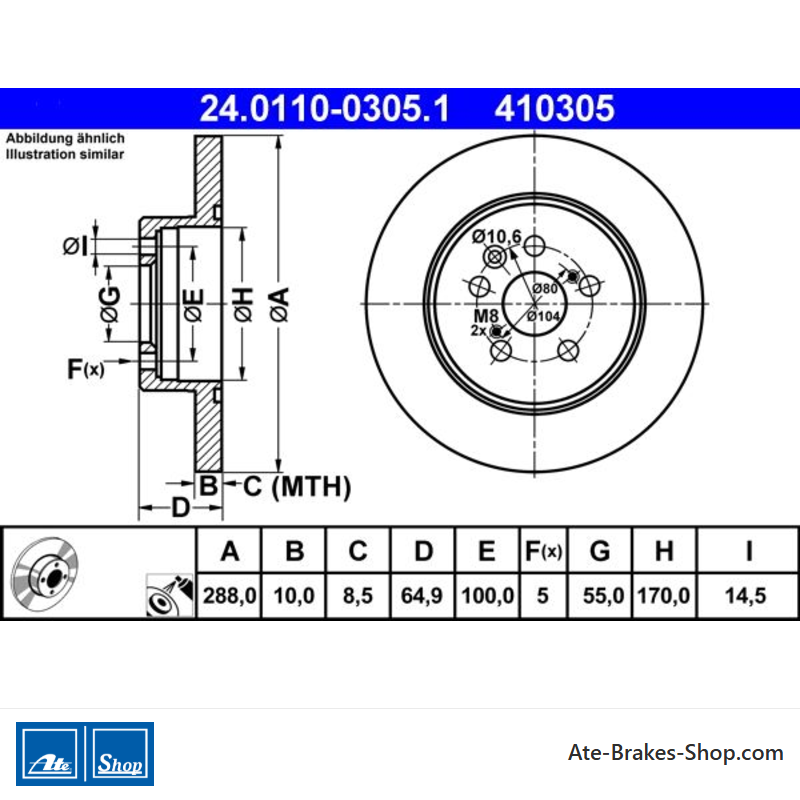

24.0110-0305.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Toyota
- Handelsnummer
- 410305
- Land van Herkomst
- QU
- Hoogte
- 64,9
- Buitendiameter [mm]
- 288,0
- Remschijfdikte [mm]
- 10,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 55,0
- Binnendiameter [mm]
- 170,0
- Bordiameter [mm]
- 14,5
- Minimale dikte [mm]
- 8,5
Specifieke referenties
- ean13
- 4006633243179
- MPN
- 2401100305102
ATE 24.0110-0305.1
(240110-03051)
- Buitendiameter [mm]: 288,0
- Binnendiameter [mm]: 170,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410305
