ATE Originele 2-delige remschijf (24011003161) voor Lexus
€ 105,27
(incl. btw)
€ 87,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0316.1
(240110-03161)
- Buitendiameter [mm]: 288,0
- Binnendiameter [mm]: 190,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410316
Logistieke informatie:
- Ean Code: 4006633301695
- Gewicht: 10.75kg
Specification of ATE 24.0110-0316.1 / 240110-03161 / 24011003161:
| OE Number | Reference info |
| LEXUS 42431-48040 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| LEXUS 42431-48041 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| LEXUS RX (_U3_) Fitting Position Rear Axle | 2005-09 - 2008-12 | 200 | 272 | 3311 | SUV |
| LEXUS RX (_U3_) Fitting Position Rear Axle | 2005-09 - 2008-12 | 200 | 272 | 3311 | SUV |
| LEXUS RX (_U3_) Fitting Position Rear Axle | 2003-05 - 2008-12 | 150 | 204 | 2995 | SUV |
| LEXUS RX (_U3_) Construction Year from 200602 Fitting Position Rear Axle | 2006-01 - 2008-12 | 203 | 276 | 3456 | SUV |
| LEXUS RX (_U3_) Fitting Position Rear Axle | 2006-02 - 2008-12 | 203 | 276 | 3456 | SUV |

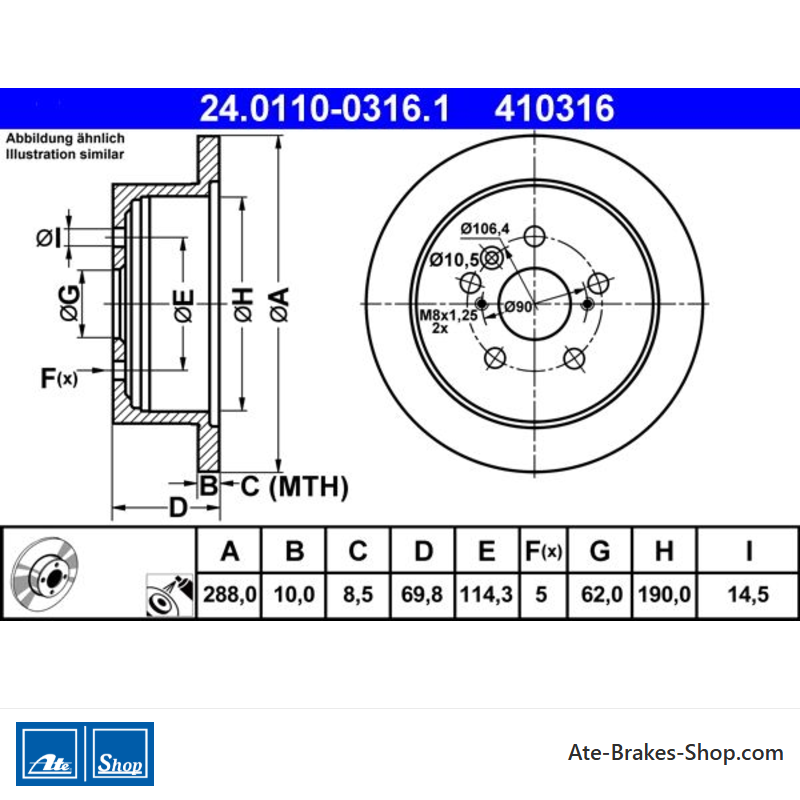

24.0110-0316.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Lexus
- Handelsnummer
- 410316
- Land van Herkomst
- China
- Hoogte
- 69,8
- Buitendiameter [mm]
- 288,0
- Remschijfdikte [mm]
- 10,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 62,0
- Binnendiameter [mm]
- 190,0
- Bordiameter [mm]
- 14,5
- Minimale dikte [mm]
- 8,5
Specifieke referenties
- ean13
- 4006633301695
- MPN
- 2401100316102
ATE 24.0110-0316.1
(240110-03161)
- Buitendiameter [mm]: 288,0
- Binnendiameter [mm]: 190,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410316
