ATE Originele 2-delige remschijf (24011003171) voor Hyundai, Kia
€ 130,68
(incl. btw)
€ 108,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0317.1
(240110-03171)
- Buitendiameter [mm]: 262,0
- Binnendiameter [mm]: 168,0
- Remschijfdikte [mm]: 10,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 410317
Logistieke informatie:
- Ean Code: 4006633268417
- Gewicht: 8.78kg
Specification of ATE 24.0110-0317.1 / 240110-03171 / 24011003171:
| OE Number | Reference info |
| HYUNDAI 58411-38310 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 58411-38310 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 58411-3C000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI MATRIX (FC) Fitting Position Rear Axle | 2002-01 - 2005-12 | 66 | 90 | 1599 | MPV |
| HYUNDAI MATRIX (FC) Fitting Position Rear Axle | 2001-06 - 2010-08 | 76 | 103 | 1599 | MPV |
| HYUNDAI MATRIX (FC) Fitting Position Rear Axle | 2001-06 - 2010-08 | 90 | 122 | 1795 | MPV |
| HYUNDAI MATRIX (FC) Fitting Position Rear Axle | 2001-10 - 2010-08 | 60 | 82 | 1493 | MPV |
| HYUNDAI MATRIX (FC) Fitting Position Rear Axle | 2005-08 - 2010-08 | 81 | 110 | 1493 | MPV |
| HYUNDAI MATRIX (FC) Fitting Position Rear Axle | 2004-12 - 2010-08 | 75 | 102 | 1493 | MPV |
| HYUNDAI SONATA IV (EF) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2001-10 - 2004-11 | 96 | 131 | 1997 | Saloon |
| HYUNDAI SONATA IV (EF) Construction Year to 200109 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1998-06 - 2001-10 | 100 | 136 | 1997 | Saloon |
| HYUNDAI SONATA IV (EF) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2001-10 - 2004-11 | 106 | 144 | 1997 | Saloon |
| HYUNDAI SONATA IV (EF) Construction Year to 200109 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1998-03 - 2001-10 | 105 | 143 | 2351 | Saloon |
| HYUNDAI SONATA IV (EF) Construction Year to 200109 Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 1998-06 - 2001-10 | 118 | 160 | 2493 | Saloon |
| HYUNDAI SONATA IV (EF) Fitting Position Rear Axle | 2001-10 - 2004-11 | 127 | 173 | 2656 | Saloon |
| KIA MAGENTIS I (GD, MS) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2001-05 - 2005-09 | 100 | 136 | 1997 | Saloon |
| KIA MAGENTIS I (GD, MS) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2001-05 - 2005-09 | 124 | 169 | 2493 | Saloon |

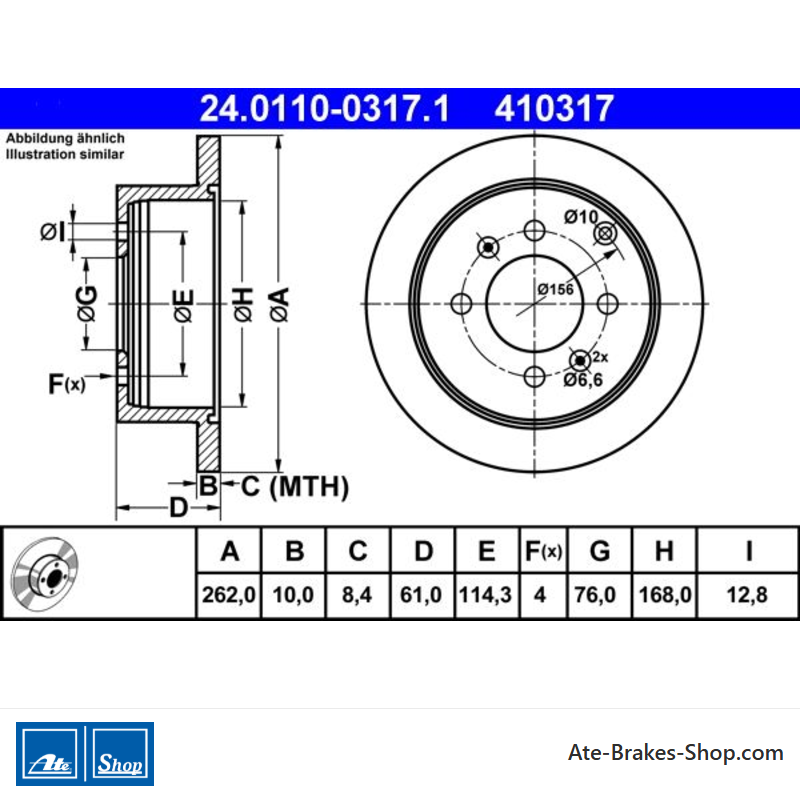

24.0110-0317.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Hyundai
Kia - Handelsnummer
- 410317
- Land van Herkomst
- Italië
- Hoogte
- 61,0
- Buitendiameter [mm]
- 262,0
- Remschijfdikte [mm]
- 10,0
- Type remschijf
- Solide
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 76,0
- Binnendiameter [mm]
- 168,0
- Bordiameter [mm]
- 12,8
- Minimale dikte [mm]
- 8,4
Specifieke referenties
- ean13
- 4006633268417
- MPN
- 2401100317102
ATE 24.0110-0317.1
(240110-03171)
- Buitendiameter [mm]: 262,0
- Binnendiameter [mm]: 168,0
- Remschijfdikte [mm]: 10,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 410317
