ATE Originele 2-delige remschijf (24011003201) voor Toyota
€ 105,27
(incl. btw)
€ 87,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0320.1
(240110-03201)
- Buitendiameter [mm]: 290,0
- Binnendiameter [mm]: 180,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410320
Logistieke informatie:
- Ean Code: 4006633293167
- Gewicht: 10.42kg
Specification of ATE 24.0110-0320.1 / 240110-03201 / 24011003201:
| OE Number | Reference info |
| TOYOTA 42431-0F010 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_) Construction Year from 200405 Fitting Position Rear Axle | 2004-04 - 2009-03 | 81 | 110 | 1598 | MPV |
| TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_) Construction Year from 200405 Fitting Position Rear Axle | 2004-04 - 2009-03 | 95 | 129 | 1794 | MPV |
| TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_) Construction Year from 200405 Fitting Position Rear Axle | 2004-04 - 2009-03 | 85 | 116 | 1995 | MPV |
| TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_) Fitting Position Rear Axle | 2005-10 - 2009-03 | 130 | 177 | 2231 | MPV |
| TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_) Fitting Position Rear Axle | 2005-10 - 2009-03 | 100 | 136 | 2231 | MPV |
24.0110-0320.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Toyota
- Handelsnummer
- 410320
- Land van Herkomst
- Tsjechië

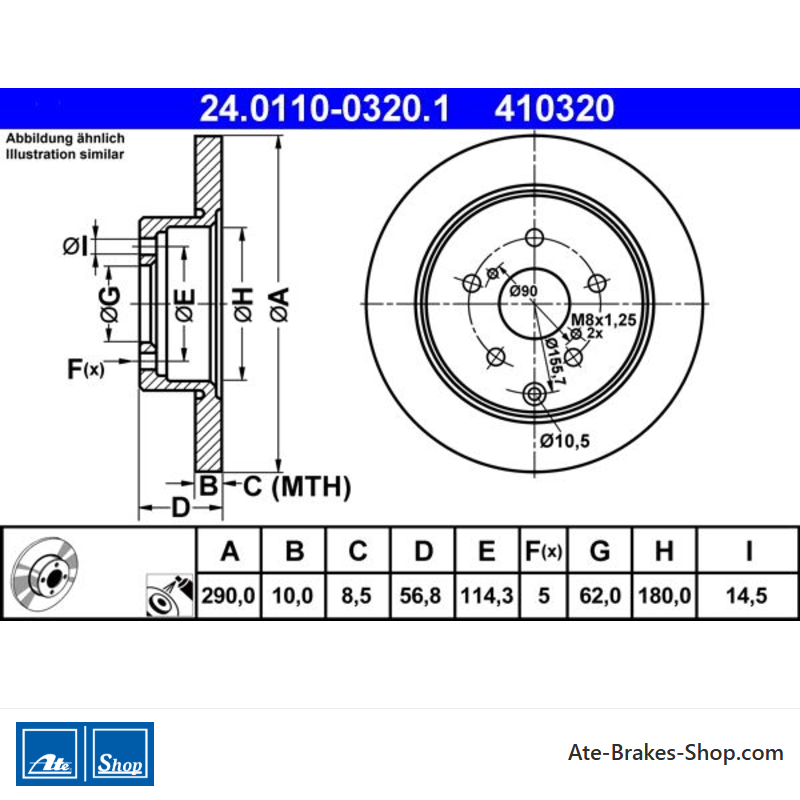

- Hoogte
- 56,8
- Buitendiameter [mm]
- 290,0
- Remschijfdikte [mm]
- 10,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 62,0
- Binnendiameter [mm]
- 180,0
- Bordiameter [mm]
- 14,5
- Minimale dikte [mm]
- 8,5
Specifieke referenties
- ean13
- 4006633293167
- MPN
- 2401100320102
