ATE Originele remschijf (24011003252) voor Renault
€ 199,65
(incl. btw)
€ 165,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0325.2
(240110-03252)
- Buitendiameter [mm]: 270,0
- Binnendiameter [mm]: 52,3
- Remschijfdikte [mm]: 10,0
- Aantal boutgaten: 4
- Handelsnummer: 410325
Logistieke informatie:
- Ean Code: 4006633307864
- Gewicht: 6.86kg
Specification of ATE 24.0110-0325.2 / 240110-03252 / 24011003252:
| OE Number | Reference info |
| RENAULT 77 01 207 898 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 7701207898 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 86 71 018 107 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8671018107 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 86 60 001 812 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8660001812 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| RENAULT MEGANE II Grandtour (KM0/1_) Construction Year from 200309 Construction Year to 200812 Fitting Position Rear Axle | 2003-08 - 2009-07 | 72 | 98 | 1390 | Estate |
| RENAULT MEGANE II Grandtour (KM0/1_) Fitting Position Rear Axle | 2005-05 - 2009-07 | 75 | 102 | 1598 | Estate |
| RENAULT MEGANE II Grandtour (KM0/1_) Fitting Position Rear Axle | 2005-05 - 2009-07 | 77 | 105 | 1598 | Estate |
| RENAULT MEGANE II Grandtour (KM0/1_) Construction Year to 200812 Fitting Position Rear Axle | 2008-02 - 2009-07 | 77 | 105 | 1598 | Estate |
| RENAULT MEGANE II Grandtour (KM0/1_) Construction Year from 200701 Construction Year to 200812 Fitting Position Rear Axle | 2006-01 - 2009-08 | 82 | 112 | 1598 | Estate |
| RENAULT MEGANE II Grandtour (KM0/1_) Fitting Position Rear Axle | 2006-01 - 2009-08 | 82 | 112 | 1598 | Estate |
| RENAULT MEGANE II Grandtour (KM0/1_) Construction Year from 200309 Construction Year to 200812 Fitting Position Rear Axle | 2003-08 - 2009-07 | 83 | 113 | 1598 | Estate |
| RENAULT MEGANE II Grandtour (KM0/1_) Construction Year from 200309 Construction Year to 200812 Fitting Position Rear Axle | 2003-08 - 2009-07 | 99 | 135 | 1998 | Estate |
| RENAULT MEGANE II Grandtour (KM0/1_) Construction Year from 200309 Fitting Position Rear Axle | 2003-08 - 2006-05 | 60 | 82 | 1461 | Estate |
| RENAULT MEGANE II Grandtour (KM0/1_) Fitting Position Rear Axle | 2005-05 - 2009-07 | 63 | 86 | 1461 | Estate |
| RENAULT MEGANE II Grandtour (KM0/1_) Fitting Position Rear Axle | 2004-02 - 2006-03 | 74 | 101 | 1461 | Estate |
| RENAULT MEGANE II Grandtour (KM0/1_) Construction Year to 200812 Fitting Position Rear Axle | 2007-01 - 2009-07 | 76 | 103 | 1461 | Estate |
| RENAULT MEGANE II Grandtour (KM0/1_) Fitting Position Rear Axle | 2005-05 - 2008-06 | 78 | 106 | 1461 | Estate |
| RENAULT MEGANE II Grandtour (KM0/1_) Fitting Position Rear Axle | 2004-04 - 2005-12 | 66 | 90 | 1870 | Estate |
| RENAULT MEGANE II Grandtour (KM0/1_) Fitting Position Rear Axle | 2004-03 - 2007-02 | 68 | 92 | 1870 | Estate |
| RENAULT MEGANE II Grandtour (KM0/1_) Construction Year to 200812 Fitting Position Rear Axle | 2005-05 - 2009-07 | 81 | 110 | 1870 | Estate |
| RENAULT MEGANE II Grandtour (KM0/1_) Construction Year to 200812 Fitting Position Rear Axle | 2005-05 - 2009-07 | 85 | 115 | 1870 | Estate |
| RENAULT MEGANE II Grandtour (KM0/1_) Construction Year from 200309 Construction Year to 200812 Fitting Position Rear Axle | 2003-08 - 2009-07 | 88 | 120 | 1870 | Estate |
| RENAULT MEGANE II Grandtour (KM0/1_) Construction Year to 200702 Fitting Position Rear Axle | 2005-05 - 2009-07 | 96 | 131 | 1870 | Estate |
| RENAULT SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2003-06 - 2008-11 | 72 | 98 | 1390 | MPV |
| RENAULT SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2006-06 - 2008-11 | 77 | 105 | 1598 | MPV |
| RENAULT SCÉNIC II (JM0/1_) Construction Year from 200701 Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2005-10 - 2008-11 | 82 | 112 | 1598 | MPV |
| RENAULT SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2003-06 - 2006-10 | 83 | 113 | 1598 | MPV |
| RENAULT SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2003-08 - 2006-05 | 83 | 113 | 1598 | MPV |
| RENAULT SCÉNIC II (JM0/1_) Construction Year to 200903 Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2003-06 - 2009-06 | 99 | 135 | 1998 | MPV |
| RENAULT SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2004-05 - 2008-11 | 120 | 163 | 1998 | MPV |
| RENAULT SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2003-06 - 2006-05 | 60 | 82 | 1461 | MPV |
| RENAULT SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2005-05 - 2008-11 | 63 | 86 | 1461 | MPV |
| RENAULT SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2003-11 - 2005-08 | 74 | 101 | 1461 | MPV |
| RENAULT SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2007-01 - 2008-11 | 76 | 103 | 1461 | MPV |
| RENAULT SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2005-05 - 2008-11 | 78 | 106 | 1461 | MPV |
| RENAULT SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2005-05 - 2008-11 | 81 | 110 | 1870 | MPV |
| RENAULT SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2006-06 - 2008-11 | 85 | 116 | 1870 | MPV |
| RENAULT SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2003-06 - 2006-05 | 88 | 120 | 1870 | MPV |
| RENAULT SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2003-06 - 2008-11 | 92 | 125 | 1870 | MPV |
| RENAULT SCÉNIC II (JM0/1_) Stub Axle Diameter [mm] 25 mm Fitting Position Rear Axle | 2005-05 - 2008-11 | 96 | 131 | 1870 | MPV |
| RENAULT MEGANE II Estate Van (KM_) Fitting Position Rear Axle | 2003-08 - 2009-07 | 60 | 82 | 1461 | Estate Van |
| RENAULT MEGANE II Estate Van (KM_) Fitting Position Rear Axle | 2005-05 - 2009-07 | 63 | 86 | 1461 | Estate Van |
| RENAULT MEGANE II Estate Van (KM_) Fitting Position Rear Axle | 2003-08 - 2009-07 | 74 | 101 | 1461 | Estate Van |
| RENAULT MEGANE II Estate Van (KM_) Fitting Position Rear Axle | 2003-08 - 2009-07 | 78 | 106 | 1461 | Estate Van |

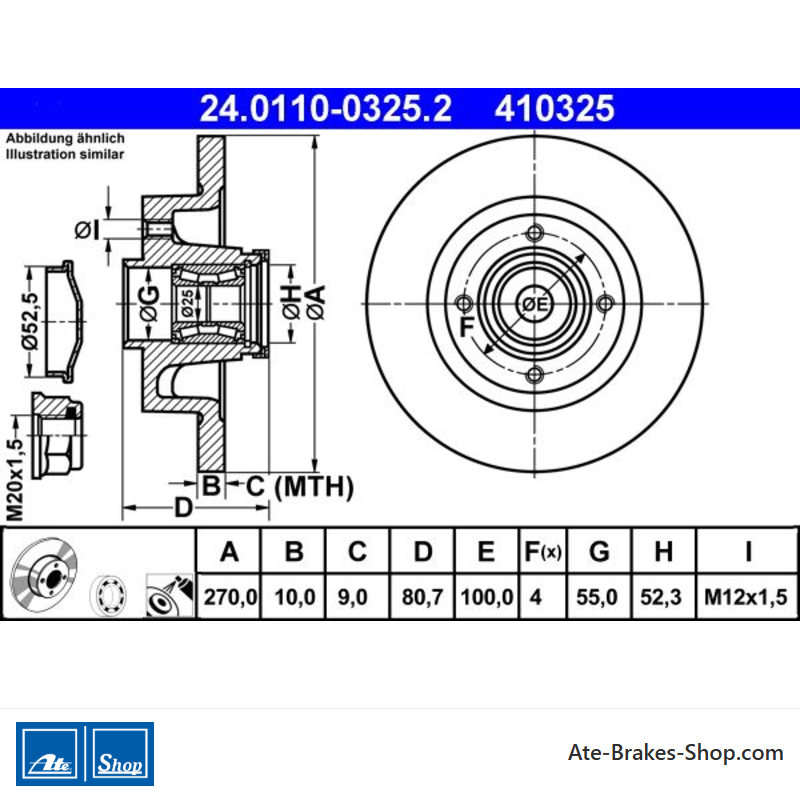

24.0110-0325.2
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Renault
- Handelsnummer
- 410325
- Land van Herkomst
- QU
- Aanvullende informatie
- met ABS-sensorring
met wiellager - Hoogte
- 80,7
- Buitendiameter [mm]
- 270,0
- Remschijfdikte [mm]
- 10,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Diameter van de ondersteuningsplaat [mm]
- 25
- Centreringsdiameter [mm]
- 55,0
- Binnendiameter [mm]
- 52,3
- Draadmaat
- M12x1,5
- Minimale dikte [mm]
- 9,0
Specifieke referenties
- ean13
- 4006633307864
- MPN
- 2401100325202
ATE 24.0110-0325.2
(240110-03252)
- Buitendiameter [mm]: 270,0
- Binnendiameter [mm]: 52,3
- Remschijfdikte [mm]: 10,0
- Aantal boutgaten: 4
- Handelsnummer: 410325
