ATE Originele 2-delige remschijf (24011003321) voor Hyundai, Kia
€ 87,12
(incl. btw)
€ 72,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0332.1
(240110-03321)
- Buitendiameter [mm]: 262,0
- Binnendiameter [mm]: 168,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410332
Logistieke informatie:
- Ean Code: 4006633315265
- Gewicht: 8.14kg

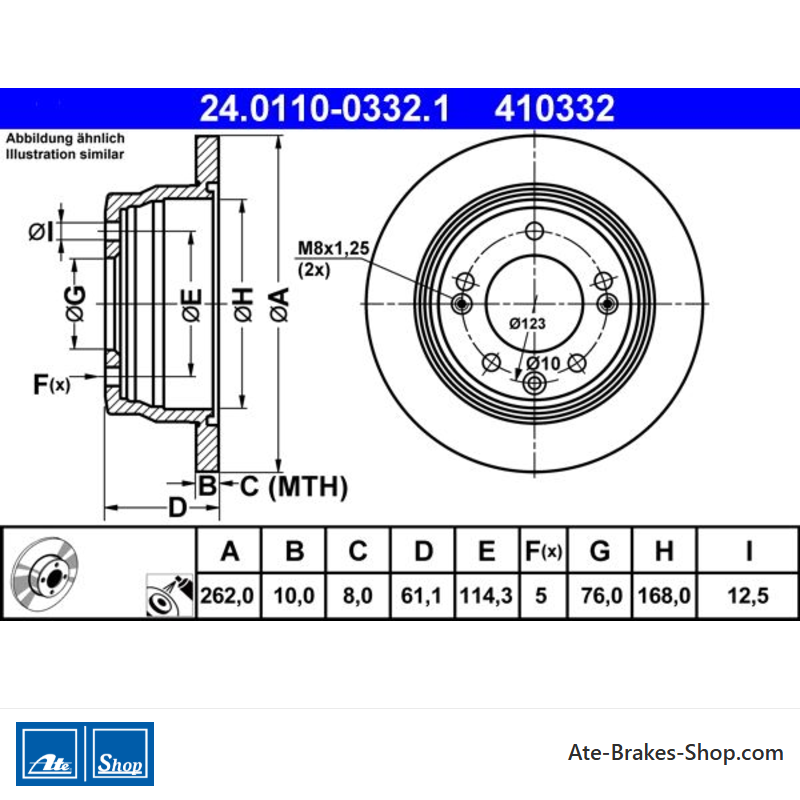

Specification of ATE 24.0110-0332.1 / 240110-03321 / 24011003321:
| OE Number | Reference info |
| HYUNDAI 58411-1H300 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HYUNDAI 58411-1H100 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 58411-1H300 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 58411-1H100 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Rear Axle | 2007-10 - 2011-11 | 77 | 105 | 1396 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Rear Axle | 2007-10 - 2011-11 | 80 | 109 | 1396 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Rear Axle | 2007-10 - 2011-11 | 85 | 116 | 1591 | Hatchback |
| HYUNDAI i30 (FD) Fitting Position Rear Axle | 2009-01 - 2011-11 | 80 | 109 | 1396 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Rear Axle | 2007-10 - 2011-11 | 90 | 122 | 1591 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Rear Axle | 2008-02 - 2011-11 | 93 | 126 | 1591 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Rear Axle | 2007-10 - 2011-11 | 105 | 143 | 1975 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Rear Axle | 2007-10 - 2011-11 | 66 | 90 | 1582 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Rear Axle | 2007-10 - 2011-11 | 85 | 116 | 1582 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Rear Axle | 2010-01 - 2011-11 | 94 | 128 | 1582 | Hatchback |
| HYUNDAI i30 (FD) Construction Year from 200802 Construction Year to 201110 Fitting Position Rear Axle | 2007-10 - 2011-11 | 100 | 136 | 1991 | Hatchback |
| HYUNDAI i30 (FD) Construction Year to 201110 Fitting Position Rear Axle | 2007-10 - 2011-11 | 103 | 140 | 1991 | Hatchback |
| HYUNDAI i30 Estate (FD) Construction Year from 200802 Fitting Position Rear Axle | 2007-10 - 2012-06 | 77 | 105 | 1396 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Rear Axle | 2009-11 - 2012-06 | 80 | 109 | 1396 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Rear Axle | 2008-02 - 2012-06 | 85 | 116 | 1591 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Rear Axle | 2009-11 - 2012-06 | 80 | 109 | 1396 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Rear Axle | 2008-02 - 2012-06 | 90 | 122 | 1591 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Rear Axle | 2008-02 - 2012-06 | 93 | 126 | 1591 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Rear Axle | 2008-02 - 2012-06 | 105 | 143 | 1975 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Rear Axle | 2008-02 - 2012-06 | 66 | 90 | 1582 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Rear Axle | 2008-02 - 2012-06 | 85 | 116 | 1582 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Rear Axle | 2010-01 - 2012-06 | 94 | 128 | 1582 | Estate |
| HYUNDAI i30 Estate (FD) Construction Year from 201001 Fitting Position Rear Axle | 2008-10 - 2012-06 | 100 | 136 | 1991 | Estate |
| HYUNDAI i30 Estate (FD) Fitting Position Rear Axle | 2008-02 - 2012-06 | 103 | 140 | 1991 | Estate |
| HYUNDAI i30 Estate (GD) Construction Year to 201206 Fitting Position Rear Axle | 2012-06 - | 88 | 120 | 1591 | Estate |
| HYUNDAI ix35 (LM, EL, ELH) Fitting Position Rear Axle | 2010-11 - 2015-12 | 99 | 135 | 1591 | SUV |
| HYUNDAI ix35 (LM, EL, ELH) Construction Year from 201004 Fitting Position Rear Axle | 2010-01 - 2013-07 | 120 | 163 | 1998 | SUV |
| HYUNDAI ix35 (LM, EL, ELH) Fitting Position Rear Axle | 2010-01 - 2015-12 | 122 | 166 | 1998 | SUV |
| HYUNDAI ix35 (LM, EL, ELH) Fitting Position Rear Axle | 2013-08 - 2015-12 | 122 | 166 | 1999 | SUV |
| HYUNDAI ix35 (LM, EL, ELH) Fitting Position Rear Axle | 2009-08 - 2013-07 | 110 | 150 | 1998 | SUV |
| HYUNDAI ix35 (LM, EL, ELH) Fitting Position Rear Axle Vehicle Production Country Czech Republic | 2013-08 - 2015-12 | 110 | 150 | 1999 | SUV |
| HYUNDAI ix35 (LM, EL, ELH) Fitting Position Rear Axle | 2013-08 - 2015-12 | 113 | 154 | 1999 | SUV |
| HYUNDAI ix35 (LM, EL, ELH) Fitting Position Rear Axle Vehicle Production Country Czech Republic | 2014-09 - 2015-12 | 113 | 154 | 1999 | SUV |
| HYUNDAI ix35 (LM, EL, ELH) Fitting Position Rear Axle | 2010-11 - 2015-12 | 85 | 116 | 1685 | SUV |
| HYUNDAI ix35 (LM, EL, ELH) Construction Year from 201004 Fitting Position Rear Axle | 2010-01 - 2015-12 | 100 | 136 | 1995 | SUV |
| HYUNDAI ix35 (LM, EL, ELH) Fitting Position Rear Axle | 2009-08 - 2015-12 | 135 | 184 | 1995 | SUV |
| HYUNDAI ix35 Van Fitting Position Rear Axle | 2015-05 - 2015-12 | 99 | 135 | 1591 | SUV Van |
| HYUNDAI ix35 Van Fitting Position Rear Axle | 2010-09 - 2015-12 | 85 | 116 | 1685 | SUV Van |
| HYUNDAI ix35 Van Construction Year from 201004 Fitting Position Rear Axle | 2009-08 - 2015-12 | 100 | 136 | 1995 | SUV Van |
| KIA CEE'D Hatchback (ED) Construction Year from 201006 Construction Year to 201209 Fitting Position Rear Axle | 2009-08 - 2012-12 | 66 | 90 | 1396 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year to 201209 Fitting Position Rear Axle | 2006-12 - 2012-12 | 77 | 105 | 1396 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year to 201209 Fitting Position Rear Axle | 2006-12 - 2012-12 | 80 | 109 | 1396 | Hatchback |
| KIA CEE'D Hatchback (ED) Fitting Position Rear Axle | 2011-06 - 2012-04 | 64 | 87 | 1396 | Hatchback |
| KIA CEE'D Hatchback (ED) Fitting Position Rear Axle | 2009-01 - 2010-12 | 80 | 109 | 1396 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year to 201209 Fitting Position Rear Axle | 2007-09 - 2012-12 | 85 | 115 | 1591 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year to 201209 Fitting Position Rear Axle | 2006-12 - 2012-12 | 90 | 122 | 1591 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year to 201209 Fitting Position Rear Axle | 2010-10 - 2012-12 | 92 | 125 | 1591 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year to 201209 Fitting Position Rear Axle | 2008-02 - 2012-12 | 93 | 126 | 1591 | Hatchback |
| KIA CEE'D Hatchback (ED) Fitting Position Rear Axle | 2007-06 - 2011-12 | 91 | 124 | 1591 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year to 201209 Fitting Position Rear Axle | 2006-12 - 2012-12 | 105 | 143 | 1975 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year to 201209 Fitting Position Rear Axle | 2006-12 - 2012-12 | 66 | 90 | 1582 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year to 201209 Fitting Position Rear Axle | 2006-12 - 2012-12 | 85 | 115 | 1582 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year to 201209 Fitting Position Rear Axle | 2010-10 - 2012-12 | 94 | 128 | 1582 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year from 200709 Construction Year to 201209 Fitting Position Rear Axle | 2007-06 - 2012-12 | 100 | 136 | 1991 | Hatchback |
| KIA CEE'D Hatchback (ED) Construction Year to 201209 Fitting Position Rear Axle | 2007-09 - 2012-12 | 103 | 140 | 1991 | Hatchback |
| KIA CEE'D SW (ED) Fitting Position Rear Axle | 2011-06 - 2012-04 | 64 | 87 | 1396 | Estate |
| KIA CEE'D SW (ED) Fitting Position Rear Axle | 2009-07 - 2012-12 | 66 | 90 | 1396 | Estate |
| KIA CEE'D SW (ED) Fitting Position Rear Axle | 2010-10 - 2012-12 | 77 | 105 | 1396 | Estate |
| KIA CEE'D SW (ED) Fitting Position Rear Axle | 2007-09 - 2012-12 | 80 | 109 | 1396 | Estate |
| KIA CEE'D SW (ED) Fitting Position Rear Axle | 2009-01 - 2010-12 | 80 | 109 | 1396 | Estate |
| KIA CEE'D SW (ED) Fitting Position Rear Axle | 2007-09 - 2012-11 | 85 | 115 | 1591 | Estate |
| KIA CEE'D SW (ED) Fitting Position Rear Axle | 2007-09 - 2012-12 | 90 | 122 | 1591 | Estate |
| KIA CEE'D SW (ED) Construction Year to 201112 Fitting Position Rear Axle | 2008-01 - 2012-09 | 91 | 124 | 1591 | Estate |
| KIA CEE'D SW (ED) Fitting Position Rear Axle | 2009-06 - 2012-12 | 92 | 125 | 1591 | Estate |
| KIA CEE'D SW (ED) Fitting Position Rear Axle | 2007-09 - 2012-12 | 93 | 126 | 1591 | Estate |
| KIA CEE'D SW (ED) Fitting Position Rear Axle | 2007-09 - 2012-12 | 105 | 143 | 1975 | Estate |
| KIA CEE'D SW (ED) Fitting Position Rear Axle | 2007-09 - 2012-12 | 66 | 90 | 1582 | Estate |
| KIA CEE'D SW (ED) Fitting Position Rear Axle | 2007-09 - 2012-12 | 85 | 115 | 1582 | Estate |
| KIA CEE'D SW (ED) Fitting Position Rear Axle | 2010-10 - 2012-12 | 94 | 128 | 1582 | Estate |
| KIA CEE'D SW (ED) Fitting Position Rear Axle | 2007-07 - 2012-12 | 103 | 140 | 1991 | Estate |
| KIA PRO CEE'D (ED) Fitting Position Rear Axle | 2010-06 - 2012-09 | 66 | 90 | 1396 | Hatchback |
| KIA PRO CEE'D (ED) Fitting Position Rear Axle | 2008-02 - 2012-09 | 77 | 105 | 1396 | Hatchback |
| KIA PRO CEE'D (ED) Fitting Position Rear Axle | 2008-02 - 2012-09 | 80 | 109 | 1396 | Hatchback |
| KIA PRO CEE'D (ED) Fitting Position Rear Axle | 2008-02 - 2012-09 | 85 | 116 | 1591 | Hatchback |
| KIA PRO CEE'D (ED) Fitting Position Rear Axle | 2008-02 - 2012-09 | 90 | 122 | 1591 | Hatchback |
| KIA PRO CEE'D (ED) Fitting Position Rear Axle | 2010-10 - 2013-02 | 92 | 125 | 1591 | Hatchback |
| KIA PRO CEE'D (ED) Fitting Position Rear Axle | 2008-02 - 2012-09 | 93 | 126 | 1591 | Hatchback |
| KIA PRO CEE'D (ED) Fitting Position Rear Axle | 2008-02 - 2012-09 | 105 | 143 | 1975 | Hatchback |
| KIA PRO CEE'D (ED) Fitting Position Rear Axle | 2009-01 - 2009-12 | 105 | 143 | 1975 | Hatchback |
| KIA PRO CEE'D (ED) Fitting Position Rear Axle | 2008-02 - 2012-09 | 66 | 90 | 1582 | Hatchback |
| KIA PRO CEE'D (ED) Fitting Position Rear Axle | 2008-02 - 2012-09 | 85 | 115 | 1582 | Hatchback |
| KIA PRO CEE'D (ED) Fitting Position Rear Axle | 2010-10 - 2012-09 | 94 | 128 | 1582 | Hatchback |
| KIA PRO CEE'D (ED) Fitting Position Rear Axle | 2008-02 - 2012-09 | 103 | 140 | 1991 | Hatchback |
| KIA SPORTAGE III (SL) Fitting Position Rear Axle | 2010-06 - 2015-12 | 99 | 135 | 1591 | SUV |
| KIA SPORTAGE III (SL) Fitting Position Rear Axle | 2014-01 - 2015-12 | 99 | 135 | 1591 | SUV |
| KIA SPORTAGE III (SL) Fitting Position Rear Axle | 2014-11 - 2015-12 | 113 | 154 | 1999 | SUV |
| KIA SPORTAGE III (SL) Fitting Position Rear Axle | 2010-07 - 2015-12 | 120 | 163 | 1998 | SUV |
| KIA SPORTAGE III (SL) Fitting Position Rear Axle | 2014-02 - 2015-12 | 122 | 166 | 1998 | SUV |
| KIA SPORTAGE III (SL) Fitting Position Rear Axle | 2010-07 - 2015-12 | 122 | 166 | 1998 | SUV |
| KIA SPORTAGE III (SL) Fitting Position Rear Axle | 2010-12 - 2015-12 | 85 | 116 | 1685 | SUV |
| KIA SPORTAGE III (SL) Fitting Position Rear Axle | 2010-07 - 2015-12 | 100 | 136 | 1995 | SUV |
| KIA SPORTAGE III (SL) Fitting Position Rear Axle | 2010-08 - 2015-12 | 135 | 184 | 1995 | SUV |
24.0110-0332.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Hyundai
Kia - Handelsnummer
- 410332
- Land van Herkomst
- QU
- Hoogte
- 61,1
- Buitendiameter [mm]
- 262,0
- Remschijfdikte [mm]
- 10,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 76,0
- Binnendiameter [mm]
- 168,0
- Bordiameter [mm]
- 12,5
- Minimale dikte [mm]
- 8,0
Specifieke referenties
- ean13
- 4006633315265
- MPN
- 2401100332102
ATE 24.0110-0332.1
(240110-03321)
- Buitendiameter [mm]: 262,0
- Binnendiameter [mm]: 168,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410332
