ATE Originele 2-delige remschijf (24011003341) voor Kia
€ 105,27
(incl. btw)
€ 87,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0334.1
(240110-03341)
- Buitendiameter [mm]: 258,0
- Binnendiameter [mm]: 154,0
- Remschijfdikte [mm]: 10,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 410334
Logistieke informatie:
- Ean Code: 4006633319478
- Gewicht: 7.66kg
Specification of ATE 24.0110-0334.1 / 240110-03341 / 24011003341:
| OE Number | Reference info |
| KIA 58411-2F100 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| KIA CERATO I Hatchback (LD) Fitting Position Rear Axle | 2004-07 - 2007-01 | 77 | 105 | 1599 | Hatchback |
| KIA CERATO I Hatchback (LD) Fitting Position Rear Axle | 2004-03 - 2007-05 | 105 | 143 | 1975 | Hatchback |
| KIA CERATO I Hatchback (LD) Fitting Position Rear Axle | 2005-07 - 2006-08 | 54 | 73 | 1493 | Hatchback |
| KIA CERATO I Hatchback (LD) Fitting Position Rear Axle | 2005-07 - 2006-08 | 66 | 90 | 1493 | Hatchback |
| KIA CERATO I Hatchback (LD) Fitting Position Rear Axle | 2005-07 - 2006-08 | 75 | 102 | 1493 | Hatchback |
| KIA CERATO I Hatchback (LD) Fitting Position Rear Axle | 2005-06 - 2008-06 | 85 | 115 | 1582 | Hatchback |
| KIA CERATO I Hatchback (LD) Fitting Position Rear Axle | 2004-04 - 2006-05 | 83 | 112 | 1991 | Hatchback |
| KIA CERATO I Saloon (LD) Construction Year to 200906 Fitting Position Rear Axle | 2006-05 - 2009-12 | 90 | 122 | 1591 | Saloon |
| KIA CERATO I Saloon (LD) Construction Year to 200906 Fitting Position Rear Axle | 2004-04 - 2009-12 | 77 | 105 | 1599 | Saloon |
| KIA CERATO I Saloon (LD) Fitting Position Rear Axle | 2004-04 - 2007-01 | 105 | 143 | 1975 | Saloon |
| KIA CERATO I Saloon (LD) Fitting Position Rear Axle | 2005-07 - 2006-08 | 54 | 73 | 1493 | Saloon |
| KIA CERATO I Saloon (LD) Construction Year to 200608 Fitting Position Rear Axle | 2005-07 - 2009-12 | 66 | 90 | 1493 | Saloon |
| KIA CERATO I Saloon (LD) Fitting Position Rear Axle | 2005-07 - 2006-08 | 75 | 102 | 1493 | Saloon |
| KIA CERATO I Saloon (LD) Construction Year to 200906 Fitting Position Rear Axle | 2005-06 - 2009-12 | 85 | 115 | 1582 | Saloon |
| KIA CERATO I Saloon (LD) Fitting Position Rear Axle | 2004-04 - 2006-05 | 83 | 112 | 1991 | Saloon |

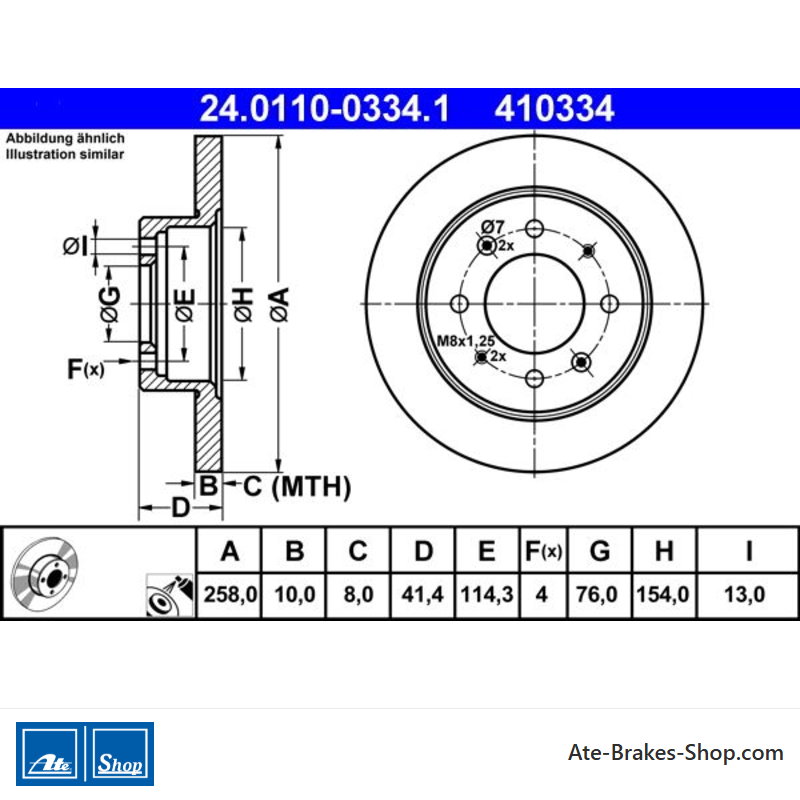

24.0110-0334.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Kia
- Handelsnummer
- 410334
- Land van Herkomst
- China
- Hoogte
- 41,4
- Buitendiameter [mm]
- 258,0
- Remschijfdikte [mm]
- 10,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 76,0
- Binnendiameter [mm]
- 154,0
- Bordiameter [mm]
- 13,0
- Minimale dikte [mm]
- 8,0
Specifieke referenties
- ean13
- 4006633319478
- MPN
- 2401100334102
ATE 24.0110-0334.1
(240110-03341)
- Buitendiameter [mm]: 258,0
- Binnendiameter [mm]: 154,0
- Remschijfdikte [mm]: 10,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 410334
