ATE Originele 2-delige remschijf (24011003361) voor Hyundai, Kia
€ 90,75
(incl. btw)
€ 75,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0336.1
(240110-03361)
- Buitendiameter [mm]: 284,0
- Binnendiameter [mm]: 190,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410336
Logistieke informatie:
- Ean Code: 4006633328210
- Gewicht: 9.08kg
Specification of ATE 24.0110-0336.1 / 240110-03361 / 24011003361:
| OE Number | Reference info |
| HYUNDAI 58411-3L000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HYUNDAI 58411-3L010 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 58411-3L000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 58411-3L010 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI GRANDEUR (TG) Fitting Position Rear Axle | 2006-09 - 2008-12 | 121 | 164 | 2359 | Saloon |
| HYUNDAI GRANDEUR (TG) Construction Year to 200705 Fitting Position Rear Axle | 2005-04 - 2010-12 | 173 | 235 | 3342 | Saloon |
| HYUNDAI GRANDEUR (TG) Construction Year from 200706 Fitting Position Rear Axle | 2005-04 - 2010-12 | 173 | 235 | 3342 | Saloon |
| HYUNDAI GRANDEUR (TG) Construction Year to 201012 Fitting Position Rear Axle | 2010-11 - 2011-12 | 191 | 260 | 3342 | Saloon |
| HYUNDAI GRANDEUR (TG) Construction Year to 200705 Fitting Position Rear Axle | 2006-06 - 2011-12 | 110 | 150 | 2188 | Saloon |
| HYUNDAI GRANDEUR (TG) Construction Year from 200706 Construction Year to 201006 Fitting Position Rear Axle | 2006-06 - 2011-12 | 110 | 150 | 2188 | Saloon |
| HYUNDAI GRANDEUR (TG) Construction Year to 200705 Fitting Position Rear Axle | 2006-06 - 2010-10 | 114 | 155 | 2188 | Saloon |
| HYUNDAI GRANDEUR (TG) Construction Year from 200706 Fitting Position Rear Axle | 2006-06 - 2010-10 | 114 | 155 | 2188 | Saloon |
| KIA OPIRUS (GH) Construction Year to 200708 Fitting Position Rear Axle | 2006-10 - 2012-10 | 196 | 267 | 3778 | Saloon |
| KIA OPIRUS (GH) Construction Year from 200709 Construction Year to 201005 Fitting Position Rear Axle | 2006-10 - 2012-10 | 196 | 267 | 3778 | Saloon |
24.0110-0336.1

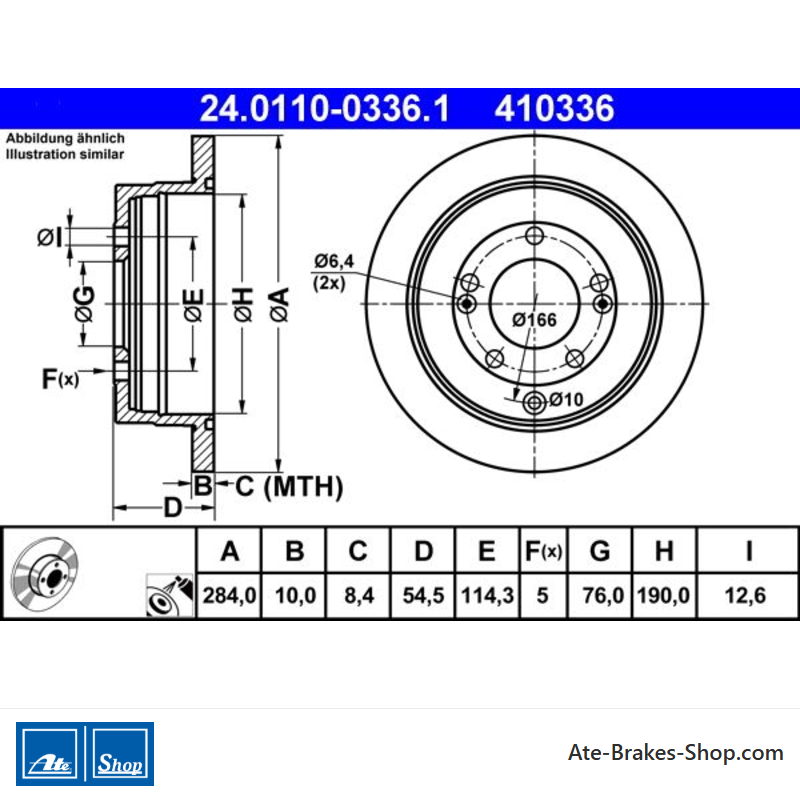

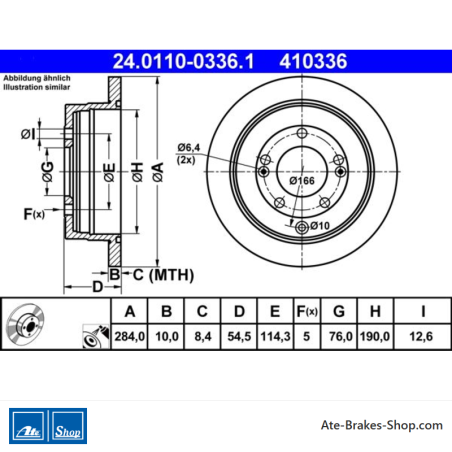

Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Hyundai
Kia - Handelsnummer
- 410336
- Land van Herkomst
- China
- Hoogte
- 54,5
- Buitendiameter [mm]
- 284,0
- Remschijfdikte [mm]
- 10,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 76,0
- Binnendiameter [mm]
- 190,0
- Bordiameter [mm]
- 12,6
- Minimale dikte [mm]
- 8,4
Specifieke referenties
- ean13
- 4006633328210
- MPN
- 2401100336102
ATE 24.0110-0336.1
(240110-03361)
- Buitendiameter [mm]: 284,0
- Binnendiameter [mm]: 190,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410336
