ATE Originele 2-delige remschijf (24011003381) voor Hyundai
€ 83,49
(incl. btw)
€ 69,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0338.1
(240110-03381)
- Buitendiameter [mm]: 262,0
- Binnendiameter [mm]: 168,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410338
Logistieke informatie:
- Ean Code: 4006633341592
- Gewicht: 8.71kg

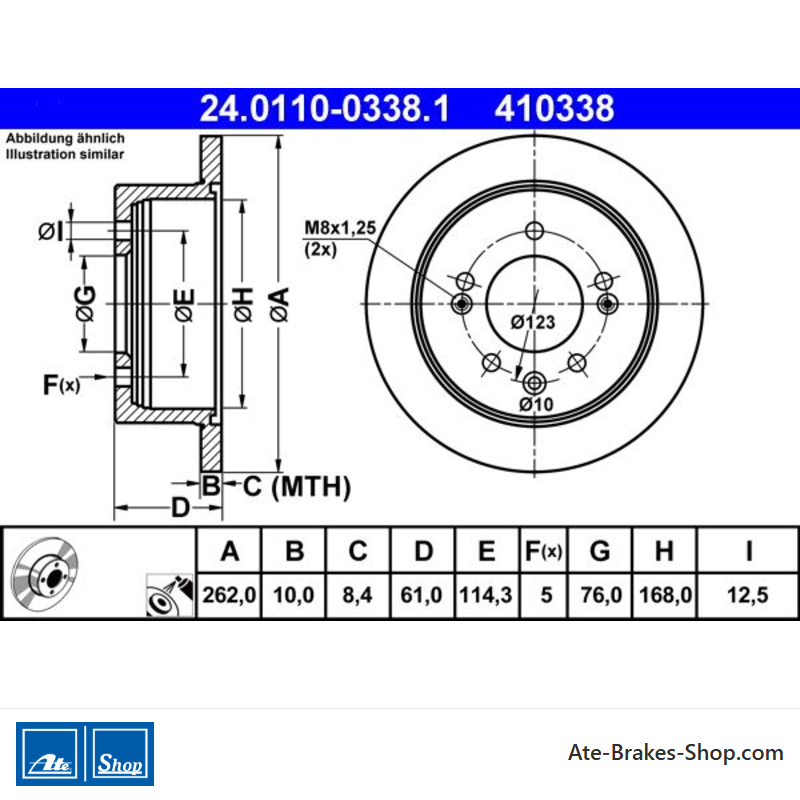

Specification of ATE 24.0110-0338.1 / 240110-03381 / 24011003381:
| OE Number | Reference info |
| HYUNDAI 58411-2H300 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI ELANTRA IV Saloon (HD) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2005-11 - 2011-12 | 85 | 116 | 1582 | Saloon |
| HYUNDAI ELANTRA IV Saloon (HD) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2006-06 - 2011-06 | 90 | 122 | 1591 | Saloon |
| HYUNDAI ELANTRA IV Saloon (HD) Braking/Driving Dynamics for vehicles with ABS Fitting Position Rear Axle | 2006-06 - 2010-05 | 103 | 140 | 1975 | Saloon |
| HYUNDAI ELANTRA IV Saloon (HD) Fitting Position Rear Axle | 2006-06 - 2011-06 | 105 | 143 | 1975 | Saloon |
24.0110-0338.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Hyundai
- Handelsnummer
- 410338
- Land van Herkomst
- Italië
- Hoogte
- 61,0
- Buitendiameter [mm]
- 262,0
- Remschijfdikte [mm]
- 10,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 76,0
- Binnendiameter [mm]
- 168,0
- Bordiameter [mm]
- 12,5
- Minimale dikte [mm]
- 8,4
Specifieke referenties
- ean13
- 4006633341592
- MPN
- 2401100338102
ATE 24.0110-0338.1
(240110-03381)
- Buitendiameter [mm]: 262,0
- Binnendiameter [mm]: 168,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410338
