ATE Originele 2-delige remschijf (24011003411) voor Kia
€ 105,27
(incl. btw)
€ 87,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0341.1
(240110-03411)
- Buitendiameter [mm]: 275,0
- Binnendiameter [mm]: 168,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410341
Logistieke informatie:
- Ean Code: 4006633338783
- Gewicht: 9.52kg

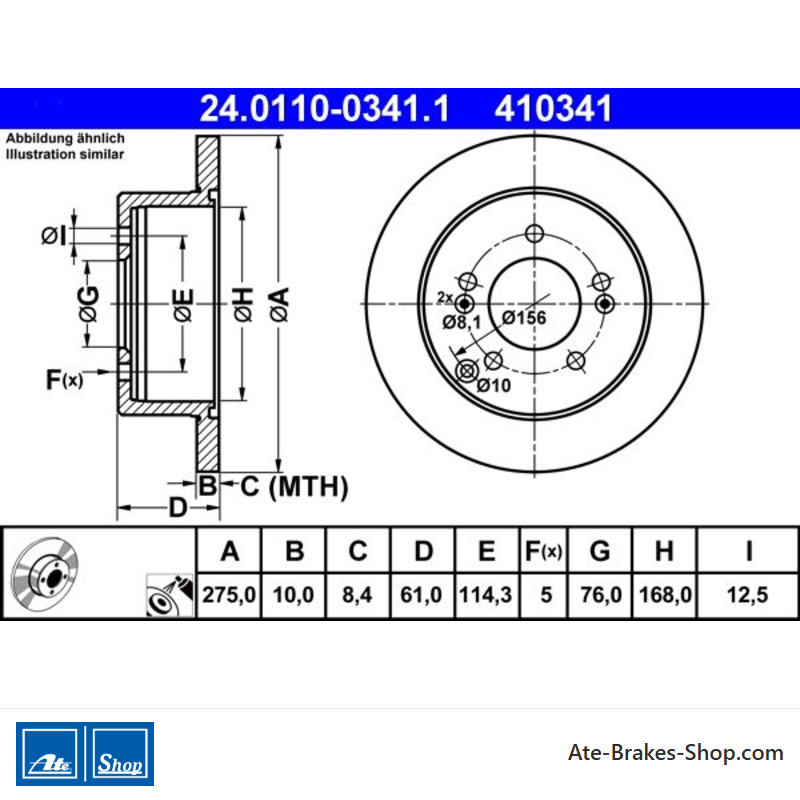

Specification of ATE 24.0110-0341.1 / 240110-03411 / 24011003411:
| OE Number | Reference info |
| KIA 58411-1D000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| KIA CARENS III MPV (UN) Construction Year to 201302 Fitting Position Rear Axle | 2009-06 - 2013-03 | 93 | 126 | 1591 | MPV |
| KIA CARENS III MPV (UN) Construction Year to 201302 Fitting Position Rear Axle | 2009-08 - 2013-03 | 97 | 132 | 1591 | MPV |
| KIA CARENS III MPV (UN) Construction Year to 201302 Fitting Position Rear Axle | 2006-09 - 2013-06 | 106 | 144 | 1998 | MPV |
| KIA CARENS III MPV (UN) Construction Year to 201302 Fitting Position Rear Axle | 2010-10 - 2013-03 | 85 | 116 | 1582 | MPV |
| KIA CARENS III MPV (UN) Construction Year to 201302 Fitting Position Rear Axle | 2010-10 - 2013-03 | 94 | 128 | 1582 | MPV |
| KIA CARENS III MPV (UN) Construction Year to 201302 Fitting Position Rear Axle | 2007-05 - 2013-03 | 85 | 115 | 1991 | MPV |
| KIA CARENS III MPV (UN) Construction Year to 201302 Fitting Position Rear Axle | 2009-08 - 2013-03 | 100 | 136 | 1991 | MPV |
| KIA CARENS III MPV (UN) Construction Year to 201302 Fitting Position Rear Axle | 2006-09 - 2013-03 | 103 | 140 | 1991 | MPV |
24.0110-0341.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Kia
- Handelsnummer
- 410341
- Land van Herkomst
- China
- Hoogte
- 61,0
- Buitendiameter [mm]
- 275,0
- Remschijfdikte [mm]
- 10,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 76,0
- Binnendiameter [mm]
- 168,0
- Bordiameter [mm]
- 12,5
- Minimale dikte [mm]
- 8,4
Specifieke referenties
- ean13
- 4006633338783
- MPN
- 2401100341102
ATE 24.0110-0341.1
(240110-03411)
- Buitendiameter [mm]: 275,0
- Binnendiameter [mm]: 168,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410341
