ATE Originele 2-delige remschijf (24011003571) voor Hyundai, Kia
€ 72,60
(incl. btw)
€ 60,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0357.1
(240110-03571)
- Buitendiameter [mm]: 258,0
- Binnendiameter [mm]: 154,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410357
Logistieke informatie:
- Ean Code: 4006633372411
- Gewicht: 7.32kg
Specification of ATE 24.0110-0357.1 / 240110-03571 / 24011003571:
| OE Number | Reference info |
| HYUNDAI 58411-1P300 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 58411-1P300 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI ix20 (JC) Fitting Position Rear Axle | 2010-11 - 2019-07 | 66 | 90 | 1396 | Hatchback |
| HYUNDAI ix20 (JC) Fitting Position Rear Axle | 2010-11 - 2019-07 | 92 | 125 | 1591 | Hatchback |
| HYUNDAI ix20 (JC) Fitting Position Rear Axle | 2011-06 - 2019-07 | 57 | 78 | 1396 | Hatchback |
| HYUNDAI ix20 (JC) Fitting Position Rear Axle | 2010-11 - 2019-07 | 66 | 90 | 1396 | Hatchback |
| HYUNDAI ix20 (JC) Fitting Position Rear Axle | 2011-06 - 2019-07 | 85 | 116 | 1582 | Hatchback |
| HYUNDAI ix20 (JC) Fitting Position Rear Axle | 2011-06 - 2019-07 | 94 | 128 | 1582 | Hatchback |
| HYUNDAI ix20 (JC) Fitting Position Rear Axle | 2010-11 - 2019-07 | 66 | 90 | 1396 | Hatchback |
| HYUNDAI ix20 (JC) Fitting Position Rear Axle | 2010-11 - 2019-07 | 92 | 125 | 1591 | Hatchback |
| KIA VENGA (YN) Fitting Position Rear Axle | 2010-02 - 2019-03 | 66 | 90 | 1396 | Hatchback |
| KIA VENGA (YN) Fitting Position Rear Axle | 2010-02 - 2019-03 | 66 | 90 | 1396 | Hatchback |
| KIA VENGA (YN) Fitting Position Rear Axle | 2010-02 - 2019-03 | 57 | 78 | 1396 | Hatchback |
| KIA VENGA (YN) Fitting Position Rear Axle | 2010-02 - 2019-03 | 92 | 125 | 1591 | Hatchback |
| KIA VENGA (YN) Fitting Position Rear Axle | 2010-02 - 2019-03 | 55 | 75 | 1396 | Hatchback |
| KIA VENGA (YN) Fitting Position Rear Axle | 2010-02 - 2019-03 | 66 | 90 | 1396 | Hatchback |
| KIA VENGA (YN) Fitting Position Rear Axle | 2010-02 - 2019-03 | 85 | 116 | 1582 | Hatchback |
| KIA VENGA (YN) Fitting Position Rear Axle | 2010-02 - 2019-03 | 94 | 128 | 1582 | Hatchback |
| KIA VENGA Hatchback Van (YN) Fitting Position Rear Axle | 2015-04 - | 66 | 90 | 1396 | Hatchback Van |
| KIA VENGA Hatchback Van (YN) Fitting Position Rear Axle | 2015-02 - | 92 | 125 | 1591 | Hatchback Van |

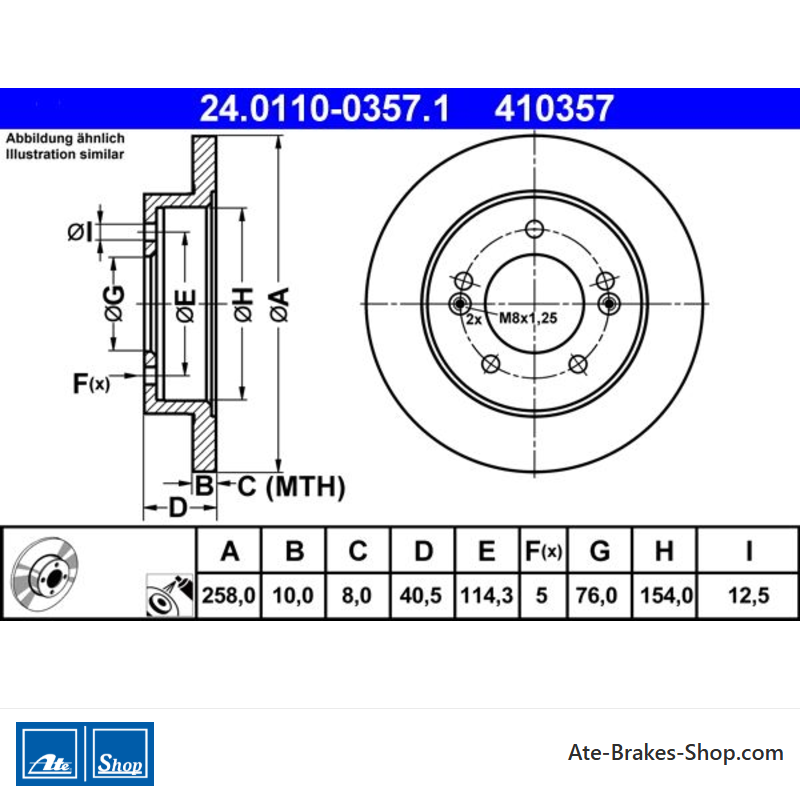

24.0110-0357.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Hyundai
Kia - Handelsnummer
- 410357
- Land van Herkomst
- Tsjechië
- Hoogte
- 40,5
- Buitendiameter [mm]
- 258,0
- Remschijfdikte [mm]
- 10,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 76,0
- Binnendiameter [mm]
- 154,0
- Bordiameter [mm]
- 12,5
- Minimale dikte [mm]
- 8,0
Specifieke referenties
- ean13
- 4006633372411
- MPN
- 2401100357102
ATE 24.0110-0357.1
(240110-03571)
- Buitendiameter [mm]: 258,0
- Binnendiameter [mm]: 154,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410357
