ATE Originele 2-delige remschijf (24011003671) voor Hyundai, Kia
€ 101,64
(incl. btw)
€ 84,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0367.1
(240110-03671)
- Buitendiameter [mm]: 284,0
- Binnendiameter [mm]: 168,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410367
Logistieke informatie:
- Ean Code: 4006633384322
- Gewicht: 9.19kg
Specification of ATE 24.0110-0367.1 / 240110-03671 / 24011003671:
| OE Number | Reference info |
| HYUNDAI 58411-3K100 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HYUNDAI 58411-3K110 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 58411-3K100 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| KIA 58411-3K110 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI GRANDEUR (TG) Construction Year from 201007 Construction Year to 201012 Fitting Position Rear Axle | 2006-06 - 2011-12 | 110 | 150 | 2188 | Saloon |
| HYUNDAI SONATA V (NF) Construction Year from 200602 Fitting Position Rear Axle | 2005-05 - 2010-12 | 106 | 144 | 1998 | Saloon |
| HYUNDAI SONATA V (NF) Fitting Position Rear Axle | 2008-07 - 2010-12 | 119 | 162 | 1998 | Saloon |
| HYUNDAI SONATA V (NF) Fitting Position Rear Axle | 2008-01 - 2010-12 | 121 | 165 | 1998 | Saloon |
| HYUNDAI SONATA V (NF) Construction Year from 200602 Construction Year to 200705 Fitting Position Rear Axle | 2005-01 - 2010-12 | 119 | 162 | 2359 | Saloon |
| HYUNDAI SONATA V (NF) Fitting Position Rear Axle | 2008-06 - 2010-12 | 128 | 174 | 2359 | Saloon |
| HYUNDAI SONATA V (NF) Construction Year from 200602 Construction Year to 200705 Fitting Position Rear Axle | 2005-01 - 2010-12 | 171 | 233 | 3342 | Saloon |
| HYUNDAI SONATA V (NF) Construction Year from 200602 Construction Year to 200705 Fitting Position Rear Axle | 2005-06 - 2010-12 | 173 | 235 | 3342 | Saloon |
| HYUNDAI SONATA V (NF) Fitting Position Rear Axle | 2008-01 - 2010-12 | 184 | 250 | 3342 | Saloon |
| HYUNDAI SONATA V (NF) Fitting Position Rear Axle | 2006-02 - 2010-12 | 100 | 136 | 1991 | Saloon |
| HYUNDAI SONATA V (NF) Fitting Position Rear Axle | 2006-02 - 2010-12 | 103 | 140 | 1991 | Saloon |
| HYUNDAI SONATA V (NF) Fitting Position Rear Axle | 2009-03 - 2010-12 | 110 | 150 | 1991 | Saloon |
| KIA CADENZA II (YG) Fitting Position Rear Axle Brake Size 16" | 2016-01 - | 199 | 271 | 3342 | Saloon |
| KIA CADENZA II (YG) Fitting Position Rear Axle Brake Size 16" | 2016-01 - | 209 | 284 | 3342 | Saloon |

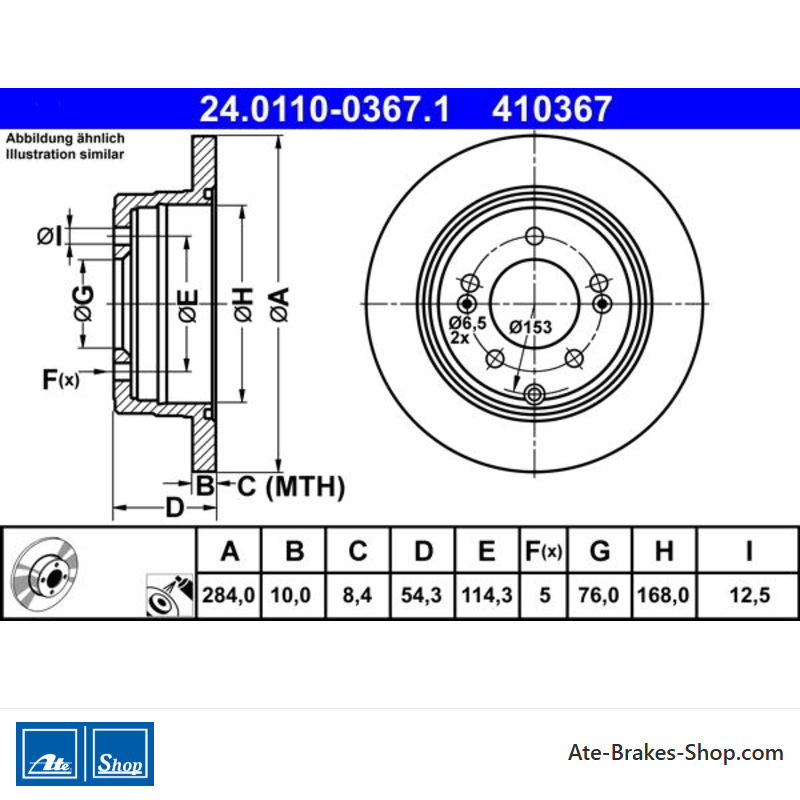

24.0110-0367.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Hyundai
Kia - Handelsnummer
- 410367
- Land van Herkomst
- QU
- Hoogte
- 54,3
- Buitendiameter [mm]
- 284,0
- Remschijfdikte [mm]
- 10,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 76,0
- Binnendiameter [mm]
- 168,0
- Bordiameter [mm]
- 12,5
- Minimale dikte [mm]
- 8,4
Specifieke referenties
- ean13
- 4006633384322
- MPN
- 2401100367102
ATE 24.0110-0367.1
(240110-03671)
- Buitendiameter [mm]: 284,0
- Binnendiameter [mm]: 168,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410367
