ATE Originele 2-delige remschijf (24011003941) voor Hyundai
€ 101,64
(incl. btw)
€ 84,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0394.1
(240110-03941)
- Buitendiameter [mm]: 234,0
- Binnendiameter [mm]: 142,0
- Remschijfdikte [mm]: 10,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 410394
Logistieke informatie:
- Ean Code: 4006633415644
- Gewicht: 6.28kg
Specification of ATE 24.0110-0394.1 / 240110-03941 / 24011003941:
| OE Number | Reference info |
| HYUNDAI 58411-B4300 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| HYUNDAI 58411-B9000 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| HYUNDAI i10 II Saloon Fitting Position Rear Axle | 2015-08 - | 64 | 87 | 1248 | Saloon |
| HYUNDAI i10 II (BA, IA) Fitting Position Rear Axle | 2013-08 - 2019-12 | 49 | 67 | 998 | Hatchback |
| HYUNDAI i10 II (BA, IA) Fitting Position Rear Axle | 2014-02 - 2019-12 | 49 | 67 | 998 | Hatchback |
| HYUNDAI i10 II (BA, IA) Fitting Position Rear Axle | 2014-07 - 2016-08 | 51 | 69 | 998 | Hatchback |
| HYUNDAI i10 II (BA, IA) Fitting Position Rear Axle | 2013-12 - 2019-12 | 64 | 87 | 1248 | Hatchback |
| HYUNDAI i10 III (AC3, AI3) Fitting Position Rear Axle | 2024-03 - | 46 | 63 | 998 | Hatchback |
| HYUNDAI i10 III (AC3, AI3) Fitting Position Rear Axle | 2019-09 - | 49 | 67 | 998 | Hatchback |
| HYUNDAI i10 III (AC3, AI3) Fitting Position Rear Axle | 2024-03 - | 66 | 90 | 998 | Hatchback |
| HYUNDAI i10 III (AC3, AI3) Fitting Position Rear Axle | 2020-02 - | 74 | 100 | 998 | Hatchback |
| HYUNDAI i10 III (AC3, AI3) Fitting Position Rear Axle | 2024-03 - | 58 | 79 | 1197 | Hatchback |
| HYUNDAI i10 III (AC3, AI3) Fitting Position Rear Axle | 2019-09 - | 62 | 84 | 1197 | Hatchback |

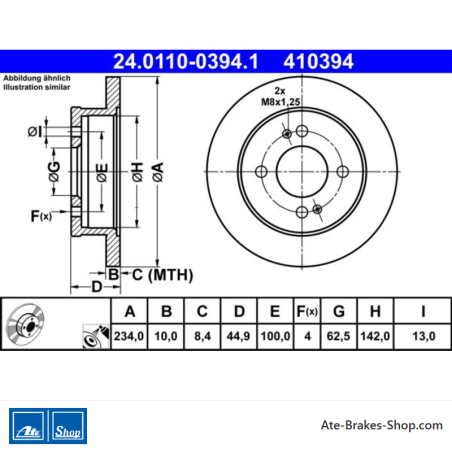

24.0110-0394.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Hyundai
- Handelsnummer
- 410394
- Land van Herkomst
- Tsjechië
- Hoogte
- 44,9
- Buitendiameter [mm]
- 234,0
- Remschijfdikte [mm]
- 10,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 62,5
- Binnendiameter [mm]
- 142,0
- Bordiameter [mm]
- 13,0
- Minimale dikte [mm]
- 8,4
Specifieke referenties
- ean13
- 4006633415644
- MPN
- 2401100394102
ATE 24.0110-0394.1
(240110-03941)
- Buitendiameter [mm]: 234,0
- Binnendiameter [mm]: 142,0
- Remschijfdikte [mm]: 10,0
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 410394
