ATE Originele 2-delige remschijf (24011004251) voor Suzuki, Toyota
€ 87,12
(incl. btw)
€ 72,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0425.1
(240110-04251)
- Buitendiameter [mm]: 274,0
- Binnendiameter [mm]: 159,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410425
Logistieke informatie:
- Ean Code: 4006633469968
- Gewicht: 8.25kg

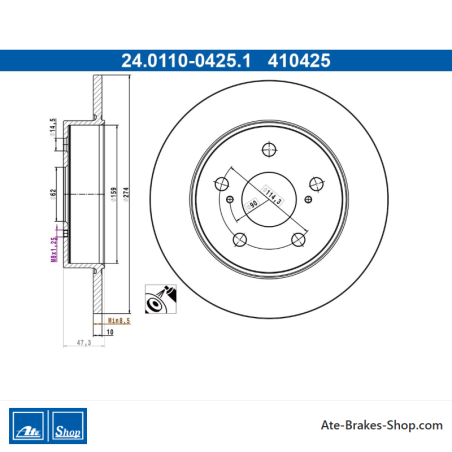

Specification of ATE 24.0110-0425.1 / 240110-04251 / 24011004251:
| OE Number | Reference info |
| SUZUKI T4243-10232 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 42431-02320 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SUZUKI SWACE (AMZ_) Fitting Position Rear Axle | 2020-10 - | 90 | 122 | 1798 | Estate |
| SUZUKI SWACE (AMZ_) Fitting Position Rear Axle | 2023-03 - | 103 | 140 | 1798 | Estate |
| TOYOTA COROLLA Saloon (_E21_) Fitting Position Rear Axle Vehicle Equipment for vehicles without electric parking brake | 2019-01 - | 90 | 122 | 1598 | Saloon |
| TOYOTA COROLLA Saloon (_E21_) Fitting Position Rear Axle Vehicle Equipment for vehicles without electric parking brake | 2019-01 - | 97 | 132 | 1598 | Saloon |
| TOYOTA COROLLA Saloon (_E21_) Fitting Position Rear Axle | 2019-02 - | 90 | 122 | 1798 | Saloon |
| TOYOTA COROLLA Saloon (_E21_) Fitting Position Rear Axle | 2022-09 - | 103 | 140 | 1798 | Saloon |
| TOYOTA COROLLA Hatchback (_E21_, _EA1_, _EH1_) Fitting Position Rear Axle | 2019-01 - | 85 | 116 | 1197 | Hatchback |
| TOYOTA COROLLA Hatchback (_E21_, _EA1_, _EH1_) Fitting Position Rear Axle | 2018-10 - | 90 | 122 | 1798 | Hatchback |
| TOYOTA COROLLA Hatchback (_E21_, _EA1_, _EH1_) Fitting Position Rear Axle | 2022-09 - | 103 | 140 | 1798 | Hatchback |
| TOYOTA COROLLA Hatchback (_E21_, _EA1_, _EH1_) Fitting Position Rear Axle | 2019-02 - | 132 | 180 | 1987 | Hatchback |
| TOYOTA COROLLA Hatchback (_E21_, _EA1_, _EH1_) Fitting Position Rear Axle | 2021-05 - | 135 | 184 | 1987 | Hatchback |
| TOYOTA COROLLA Hatchback (_E21_, _EA1_, _EH1_) Fitting Position Rear Axle | 2023-01 - | 144 | 196 | 1987 | Hatchback |
| TOYOTA COROLLA Estate (_E21_) Fitting Position Rear Axle | 2019-02 - | 85 | 116 | 1197 | Estate |
| TOYOTA COROLLA Estate (_E21_) Fitting Position Rear Axle | 2019-02 - | 90 | 122 | 1798 | Estate |
| TOYOTA COROLLA Estate (_E21_) Fitting Position Rear Axle | 2022-09 - | 103 | 140 | 1798 | Estate |
| TOYOTA COROLLA Estate (_E21_) Fitting Position Rear Axle | 2019-02 - | 132 | 180 | 1987 | Estate |
| TOYOTA COROLLA Estate (_E21_) Fitting Position Rear Axle | 2021-05 - | 135 | 184 | 1987 | Estate |
| TOYOTA COROLLA Estate (_E21_) Fitting Position Rear Axle | 2023-01 - | 144 | 196 | 1987 | Estate |
24.0110-0425.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Suzuki
Toyota - Handelsnummer
- 410425
- Land van Herkomst
- Tsjechië
- Hoogte
- 47,3
- Buitendiameter [mm]
- 274,0
- Remschijfdikte [mm]
- 10,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 62,0
- Binnendiameter [mm]
- 159,0
- Bordiameter [mm]
- 14,5
- Minimale dikte [mm]
- 8,5
Specifieke referenties
- ean13
- 4006633469968
- MPN
- 2401100425102
ATE 24.0110-0425.1
(240110-04251)
- Buitendiameter [mm]: 274,0
- Binnendiameter [mm]: 159,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410425
