ATE Originele 2-delige remschijf (24011004311) voor Jaguar
€ 123,42
(incl. btw)
€ 102,00 belastingexcl.
Onderdeelnummer:
ATE 24.0110-0431.1
(240110-04311)
- Buitendiameter [mm]: 300,0
- Binnendiameter [mm]: 146,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410431
Logistieke informatie:
- Ean Code: 4006633507233
- Gewicht: 10.79kg
Specification of ATE 24.0110-0431.1 / 240110-04311 / 24011004311:
| OE Number | Reference info |
| JAGUAR T4N 1742 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| JAGUAR T4N1742 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| JAGUAR XE (X760) Fitting Position Rear Axle Brake Size 16" | 2015-03 - | 147 | 200 | 1999 | Saloon |
| JAGUAR XE (X760) Fitting Position Rear Axle Brake Size 16" | 2017-02 - | 147 | 200 | 1997 | Saloon |
| JAGUAR XE (X760) Fitting Position Rear Axle Brake Size 16" | 2017-02 - | 184 | 250 | 1997 | Saloon |
| JAGUAR XE (X760) Fitting Position Rear Axle Brake Size 16" | 2017-02 - | 184 | 250 | 1997 | Saloon |
| JAGUAR XE (X760) Fitting Position Rear Axle Brake Size 16" | 2015-03 - | 177 | 241 | 1999 | Saloon |
| JAGUAR XE (X760) Fitting Position Rear Axle Brake Size 16" | 2015-03 - | 120 | 163 | 1999 | Saloon |
| JAGUAR XE (X760) Fitting Position Rear Axle Brake Size 16" | 2015-03 - | 132 | 180 | 1999 | Saloon |
| JAGUAR XE (X760) Fitting Position Rear Axle Brake Size 16" | 2015-10 - | 132 | 180 | 1999 | Saloon |
| JAGUAR XE (X760) Fitting Position Rear Axle Brake Size 16" | 2017-02 - | 177 | 241 | 1999 | Saloon |
| JAGUAR XF II (X260) Fitting Position Rear Axle Brake Size 16" | 2015-05 - | 120 | 163 | 1999 | Saloon |
| JAGUAR XF SPORTBRAKE (X260) Fitting Position Rear Axle Brake Size 16" | 2017-07 - | 120 | 163 | 1999 | Estate |

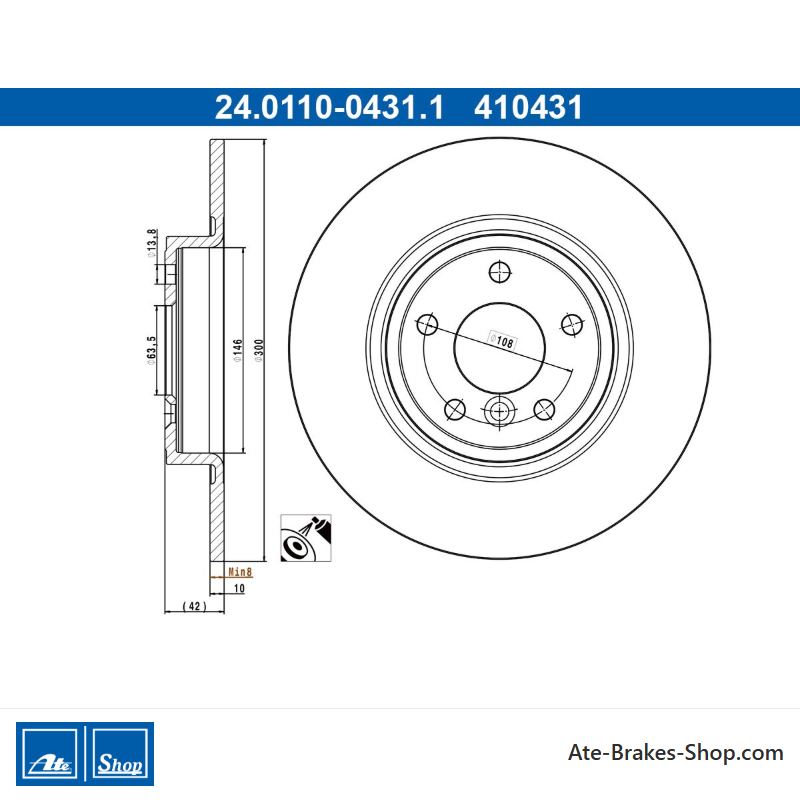

24.0110-0431.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Jaguar
- Handelsnummer
- 410431
- Land van Herkomst
- China
- Hoogte
- 42,0
- Buitendiameter [mm]
- 300,0
- Remschijfdikte [mm]
- 10,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 108,0
- Centreringsdiameter [mm]
- 63,5
- Binnendiameter [mm]
- 146,0
- Bordiameter [mm]
- 13,8
- Minimale dikte [mm]
- 8,0
Specifieke referenties
- ean13
- 4006633507233
- MPN
- 2401100431102
ATE 24.0110-0431.1
(240110-04311)
- Buitendiameter [mm]: 300,0
- Binnendiameter [mm]: 146,0
- Remschijfdikte [mm]: 10,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 410431
