ATE Originele remschijf (24011101012) voor Renault
€ 206,91
(incl. btw)
€ 171,00 belastingexcl.
Onderdeelnummer:
ATE 24.0111-0101.2
(240111-01012)
- Buitendiameter [mm]: 274,0
- Binnendiameter [mm]: 52,3
- Remschijfdikte [mm]: 10,9
- Aantal bolt holes: 5
- Handelsnummer: 411101
Logistieke informatie:
- Ean Code: 4006633311335
- Gewicht: 7.78kg
Specification of ATE 24.0111-0101.2 / 240111-01012 / 24011101012:
| OE Number | Reference info |
| RENAULT 77 01 472 838 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 7701472838 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 77 01 713 008 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 7701713008 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 82 00 367 094 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8200367094 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 82 00 655 249 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8200655249 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 82 00 209 774 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8200209774 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 86 71 018 108 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8671018108 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 86 60 001 813 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| RENAULT 8660001813 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| RENAULT GRAND SCÉNIC II (JM0/1_) Fitting Position Rear Axle Stub Axle Diameter [mm] 30 mm | 2005-09 - 2008-11 | 110 | 150 | 1995 | MPV |
| RENAULT LAGUNA II (BG0/1_) Fitting Position Rear Axle | 2001-03 - 2005-05 | 76 | 103 | 1598 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Fitting Position Rear Axle | 2001-03 - 2005-05 | 79 | 107 | 1598 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Fitting Position Rear Axle | 2001-03 - 2005-05 | 79 | 107 | 1598 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2005-02 - 2007-08 | 82 | 112 | 1598 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2001-03 - 2007-12 | 85 | 116 | 1783 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Fitting Position Rear Axle | 2001-03 - 2005-05 | 86 | 117 | 1783 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2001-03 - 2007-09 | 88 | 120 | 1783 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Fitting Position Rear Axle | 2001-03 - 2005-05 | 89 | 121 | 1783 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Fitting Position Rear Axle | 2002-08 - 2006-12 | 98 | 133 | 1998 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2002-08 - 2007-12 | 99 | 135 | 1998 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2001-04 - 2007-09 | 103 | 140 | 1998 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Fitting Position Rear Axle | 2003-01 - 2005-03 | 120 | 163 | 1998 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2005-01 - 2007-09 | 125 | 170 | 1998 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2005-01 - 2007-09 | 150 | 204 | 1998 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2001-03 - 2007-08 | 152 | 207 | 2946 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Fitting Position Rear Axle | 2001-03 - 2007-08 | 155 | 211 | 2946 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Fitting Position Rear Axle | 2004-03 - 2005-05 | 68 | 92 | 1870 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Fitting Position Rear Axle | 2001-10 - 2005-05 | 74 | 100 | 1870 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Fitting Position Rear Axle | 2001-06 - 2005-05 | 77 | 105 | 1870 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2001-03 - 2007-09 | 79 | 107 | 1870 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2005-01 - 2007-08 | 81 | 110 | 1870 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2005-09 - 2007-12 | 85 | 116 | 1870 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2001-03 - 2007-09 | 88 | 120 | 1870 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2005-09 - 2007-12 | 92 | 125 | 1870 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2005-05 - 2007-08 | 96 | 130 | 1870 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Fitting Position Rear Axle | 2005-08 - 2006-08 | 110 | 150 | 1995 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2006-01 - 2007-08 | 127 | 173 | 1995 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Fitting Position Rear Axle | 2004-04 - 2005-10 | 85 | 116 | 2188 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2005-05 - 2007-08 | 102 | 140 | 2188 | Hatchback |
| RENAULT LAGUNA II (BG0/1_) Fitting Position Rear Axle | 2001-10 - 2006-08 | 110 | 150 | 2188 | Hatchback |
| RENAULT LAGUNA II Grandtour (KG0/1_) Fitting Position Rear Axle | 2001-03 - 2005-10 | 76 | 103 | 1598 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2001-03 - 2007-12 | 79 | 107 | 1598 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2005-06 - 2007-12 | 79 | 107 | 1598 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2005-02 - 2007-08 | 82 | 112 | 1598 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Fitting Position Rear Axle | 2001-03 - 2005-05 | 85 | 116 | 1783 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Fitting Position Rear Axle | 2001-03 - 2005-05 | 86 | 117 | 1783 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Fitting Position Rear Axle | 2001-03 - 2005-05 | 88 | 120 | 1783 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Fitting Position Rear Axle | 2001-03 - 2005-05 | 89 | 121 | 1783 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2004-10 - 2007-09 | 98 | 133 | 1998 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2002-08 - 2007-12 | 99 | 135 | 1998 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2001-04 - 2007-09 | 103 | 140 | 1998 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Fitting Position Rear Axle | 2003-01 - 2005-08 | 120 | 163 | 1998 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2005-01 - 2007-09 | 125 | 170 | 1998 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2005-01 - 2007-09 | 150 | 204 | 1998 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Fitting Position Rear Axle | 2003-10 - 2007-12 | 155 | 211 | 2946 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Fitting Position Rear Axle | 2001-03 - 2007-12 | 152 | 207 | 2946 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year from 200403 Construction Year to 200706 Fitting Position Rear Axle | 2003-08 - 2007-09 | 66 | 90 | 1870 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Fitting Position Rear Axle | 2004-03 - 2005-05 | 68 | 92 | 1870 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Fitting Position Rear Axle | 2001-10 - 2005-05 | 74 | 100 | 1870 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Fitting Position Rear Axle | 2001-06 - 2005-05 | 77 | 105 | 1870 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2001-03 - 2007-12 | 79 | 107 | 1870 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2005-01 - 2007-12 | 81 | 110 | 1870 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2005-08 - 2007-09 | 85 | 116 | 1870 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2001-03 - 2007-09 | 88 | 120 | 1870 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2005-09 - 2007-12 | 92 | 125 | 1870 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2005-05 - 2007-12 | 96 | 130 | 1870 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Fitting Position Rear Axle | 2005-08 - 2006-08 | 110 | 150 | 1995 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2006-01 - 2007-12 | 127 | 173 | 1995 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Fitting Position Rear Axle | 2004-04 - 2005-10 | 85 | 116 | 2188 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Construction Year to 200706 Fitting Position Rear Axle | 2005-05 - 2007-12 | 102 | 140 | 2188 | Estate |
| RENAULT LAGUNA II Grandtour (KG0/1_) Fitting Position Rear Axle | 2001-10 - 2006-08 | 110 | 150 | 2188 | Estate |

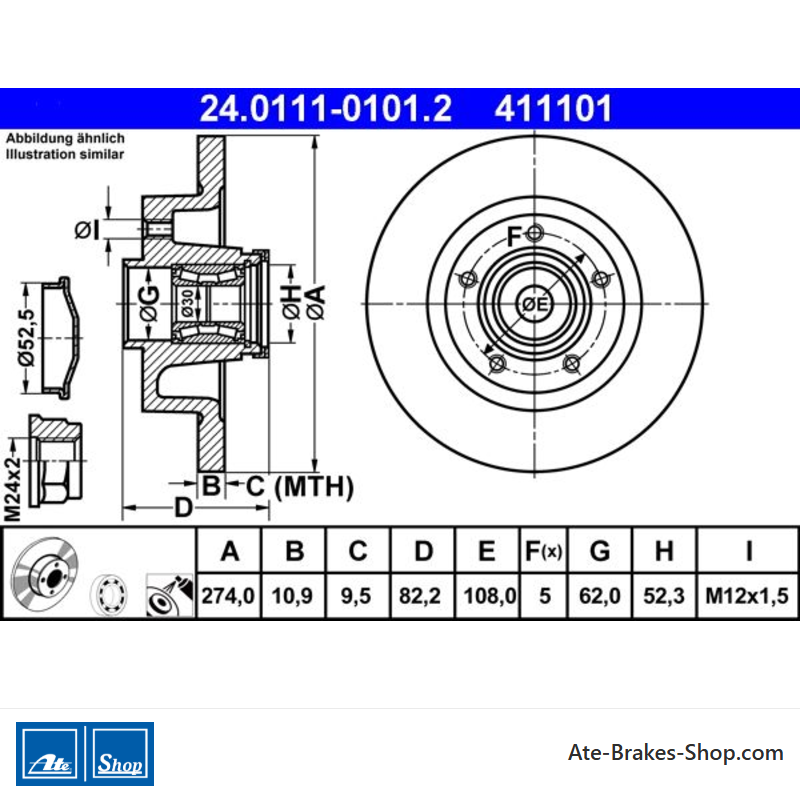

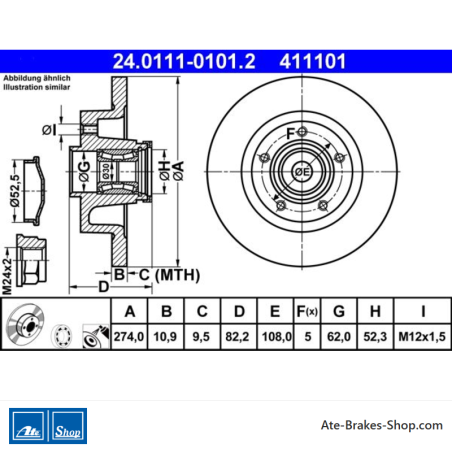

24.0111-0101.2
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Renault
- Handelsnummer
- 411101
- Land van Herkomst
- QU
- Aanvullende informatie
- met ABS-sensorring
met wiellager - Hoogte
- 82,2
- Buitendiameter [mm]
- 274,0
- Remschijfdikte [mm]
- 10,9
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 108,0
- Diameter van de ondersteuningsplaat [mm]
- 30
- Centreringsdiameter [mm]
- 62,0
- Binnendiameter [mm]
- 52,3
- Draadmaat
- M12x1,5
- Minimale dikte [mm]
- 9,5
Specifieke referenties
- ean13
- 4006633311335
- MPN
- 2401110101202
ATE 24.0111-0101.2
(240111-01012)
- Buitendiameter [mm]: 274,0
- Binnendiameter [mm]: 52,3
- Remschijfdikte [mm]: 10,9
- Aantal bolt holes: 5
- Handelsnummer: 411101
