ATE Originele 2-Stuks remschijf (24011101641) voor Mazda
€ 72,60
(incl. btw)
€ 60,00 belastingexcl.
Onderdeelnummer:
ATE 24.0111-0164.1
(240111-01641)
- Buitendiameter [mm]: 265,0
- Binnendiameter [mm]: 152,0
- Remschijfdikte [mm]: 11,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 411164
Logistieke informatie:
- Ean Code: 4006633221412
- Gewicht: 8.32kg
Specification of ATE 24.0111-0164.1 / 240111-01641 / 24011101641:
| OE Number | Reference info |
| MAZDA BP4Y-26-251B | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA BP4Y-26-251C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA C24Y-26-251C | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA C24Y-26-251C-9A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| MAZDA BP4Y-26-251A | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| MAZDA 3 Saloon (BK) Construction Year to 200905 Fitting Position Rear Axle | 2004-02 - 2009-06 | 77 | 105 | 1598 | Saloon |
| MAZDA 3 Saloon (BK) Construction Year to 200905 Fitting Position Rear Axle | 2004-06 - 2009-06 | 80 | 109 | 1560 | Saloon |
| MAZDA 3 (BK) Construction Year to 200603 Fitting Position Rear Axle | 2003-10 - 2009-06 | 62 | 84 | 1349 | Hatchback |
| MAZDA 3 (BK) Construction Year to 200905 Fitting Position Rear Axle | 2003-10 - 2009-06 | 77 | 105 | 1598 | Hatchback |
| MAZDA 3 (BK) Construction Year to 200905 Fitting Position Rear Axle | 2006-06 - 2009-12 | 66 | 90 | 1560 | Hatchback |
| MAZDA 3 (BK) Construction Year to 200905 Fitting Position Rear Axle | 2004-06 - 2009-06 | 80 | 109 | 1560 | Hatchback |
| MAZDA 3 Saloon (BL) Construction Year from 200906 Construction Year to 201311 Fitting Position Rear Axle | 2008-12 - 2014-09 | 77 | 105 | 1598 | Saloon |
| MAZDA 3 Saloon (BL) Construction Year from 200906 Construction Year to 201311 Fitting Position Rear Axle | 2009-03 - 2014-09 | 110 | 150 | 1999 | Saloon |
| MAZDA 3 Saloon (BL) Construction Year from 200906 Fitting Position Rear Axle | 2008-12 - 2013-05 | 80 | 109 | 1560 | Saloon |
| MAZDA 3 Saloon (BL) Construction Year from 201011 Fitting Position Rear Axle | 2010-09 - 2013-05 | 85 | 116 | 1560 | Saloon |
| MAZDA 3 (BL) Construction Year from 200906 Construction Year to 201311 Fitting Position Rear Axle | 2008-12 - 2014-09 | 77 | 105 | 1598 | Hatchback |
| MAZDA 3 (BL) Construction Year from 200906 Fitting Position Rear Axle | 2008-12 - 2013-05 | 80 | 109 | 1560 | Hatchback |
| MAZDA 3 (BL) Construction Year from 201011 Fitting Position Rear Axle | 2010-09 - 2013-05 | 85 | 116 | 1560 | Hatchback |

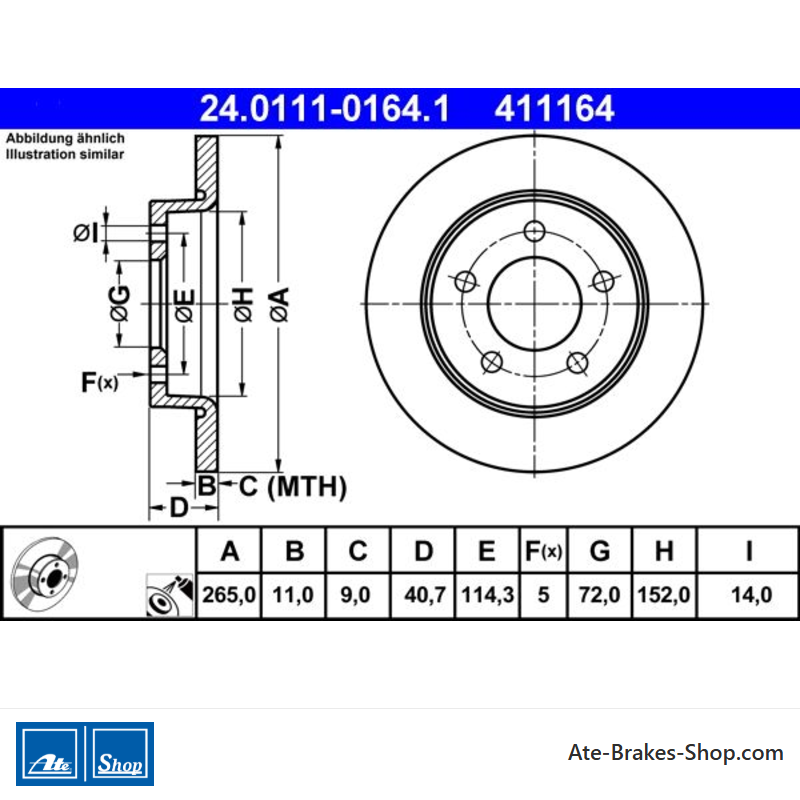

24.0111-0164.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Mazda
- Handelsnummer
- 411164
- Land van Herkomst
- Italië
- Hoogte
- 40,7
- Buitendiameter [mm]
- 265,0
- Remschijfdikte [mm]
- 11,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 72,0
- Binnendiameter [mm]
- 152,0
- Bordiameter [mm]
- 14,0
- Minimale dikte [mm]
- 9,0
Specifieke referenties
- ean13
- 4006633221412
- MPN
- 2401110164102
ATE 24.0111-0164.1
(240111-01641)
- Buitendiameter [mm]: 265,0
- Binnendiameter [mm]: 152,0
- Remschijfdikte [mm]: 11,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 411164
