ATE Originele 2-delige remschijf (24011201931) voor Jeep
€ 123,42
(incl. btw)
€ 102,00 belastingexcl.
Onderdeelnummer:
ATE 24.0112-0193.1
(240112-01931)
- Buitendiameter [mm]: 316,0
- Binnendiameter [mm]: 206,0
- Remschijfdikte [mm]: 12,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 412193
Logistieke informatie:
- Ean Code: 4006633378659
- Gewicht: 14.81kg

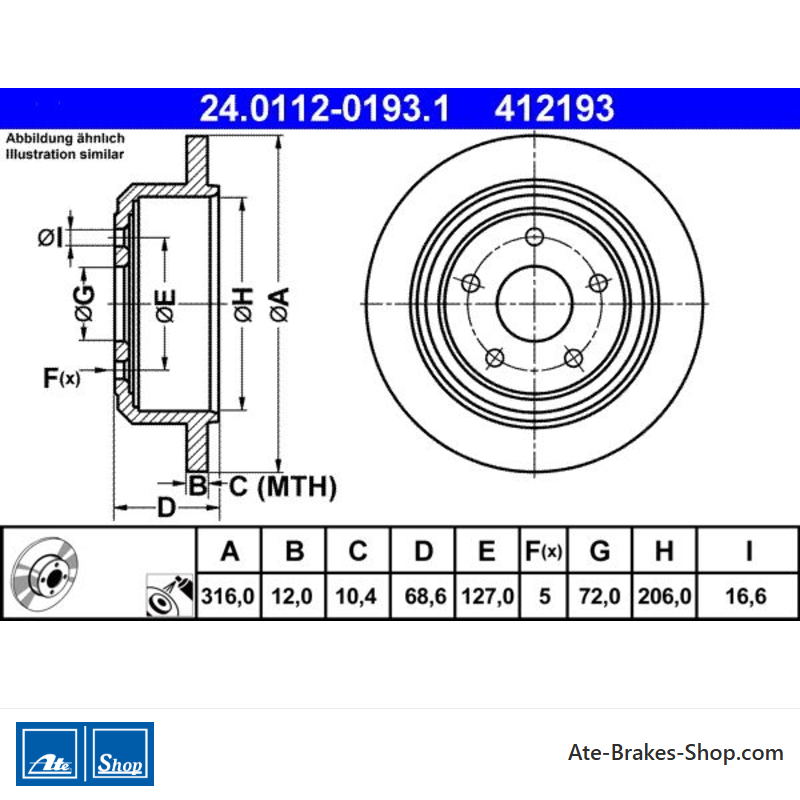

Specification of ATE 24.0112-0193.1 / 240112-01931 / 24011201931:
| OE Number | Reference info |
| JEEP 5206 0147AA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| JEEP 52060147AA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| JEEP 0 5206 0147AA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| JEEP 052060147AA | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| JEEP WRANGLER III (JK) Fitting Position Rear Axle | 2011-10 - | 209 | 284 | 3604 | Open Off-Road Vehicle |
| JEEP WRANGLER III (JK) Fitting Position Rear Axle | 2007-10 - 2010-09 | 146 | 199 | 3778 | Open Off-Road Vehicle |
| JEEP WRANGLER III (JK) Fitting Position Rear Axle | 2007-04 - | 146 | 199 | 3778 | Open Off-Road Vehicle |
| JEEP WRANGLER III (JK) Fitting Position Rear Axle | 2007-04 - 2010-12 | 153 | 208 | 3778 | Open Off-Road Vehicle |
| JEEP WRANGLER III (JK) Fitting Position Rear Axle | 2007-04 - 2011-12 | 153 | 208 | 3778 | Open Off-Road Vehicle |
| JEEP WRANGLER III (JK) Fitting Position Rear Axle | 2007-04 - | 130 | 177 | 2777 | Open Off-Road Vehicle |
| JEEP WRANGLER III (JK) Fitting Position Rear Axle | 2010-11 - | 147 | 200 | 2776 | Open Off-Road Vehicle |
24.0112-0193.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Jeep
- Handelsnummer
- 412193
- Land van Herkomst
- Italië
- Hoogte
- 68,6
- Buitendiameter [mm]
- 316,0
- Remschijfdikte [mm]
- 12,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 127,0
- Centreringsdiameter [mm]
- 72,0
- Binnendiameter [mm]
- 206,0
- Bordiameter [mm]
- 16,6
- Minimale dikte [mm]
- 10,4
Specifieke referenties
- ean13
- 4006633378659
- MPN
- 2401120193102
ATE 24.0112-0193.1
(240112-01931)
- Buitendiameter [mm]: 316,0
- Binnendiameter [mm]: 206,0
- Remschijfdikte [mm]: 12,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 412193
