ATE Originele 2-delige remschijf (24011207031) voor Lexus
€ 112,53
(incl. btw)
€ 93,00 belastingexcl.
Onderdeelnummer:
ATE 24.0112-0703.1
(240112-07031)
- Buitendiameter [mm]: 306,6
- Binnendiameter [mm]: 190,0
- Remschijfdikte [mm]: 12,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 412703
Logistieke informatie:
- Ean Code: 4006633293105
- Gewicht: 12.22kg
Specification of ATE 24.0112-0703.1 / 240112-07031 / 24011207031:
| OE Number | Reference info |
| TOYOTA 42431-30260 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 42431-53010 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| TOYOTA 42431-53011 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| LEXUS 42431-30260 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| LEXUS 42431-53010 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| LEXUS 42431-53011 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| LEXUS GS (_S16_) Fitting Position Rear Axle | 2000-10 - 2004-12 | 161 | 219 | 2997 | Saloon |
| LEXUS GS (_S16_) Fitting Position Rear Axle | 1997-08 - 2000-10 | 163 | 222 | 2997 | Saloon |
| LEXUS GS (_S16_) Fitting Position Rear Axle | 1997-12 - 2000-11 | 216 | 294 | 3969 | Saloon |
| LEXUS GS (_S16_) Fitting Position Rear Axle | 2000-11 - 2004-12 | 208 | 283 | 4293 | Saloon |
| LEXUS IS I (_E1_) Fitting Position Rear Axle | 1999-04 - 2005-07 | 114 | 155 | 1988 | Saloon |
| LEXUS IS I (_E1_) Fitting Position Rear Axle | 2001-09 - 2005-07 | 157 | 213 | 2997 | Saloon |
| LEXUS IS SportCross (_E1_) Construction Year to 200509 Fitting Position Rear Axle | 2002-10 - 2005-10 | 114 | 155 | 1988 | Estate |
| LEXUS IS SportCross (_E1_) Construction Year to 200509 Fitting Position Rear Axle | 2001-10 - 2005-10 | 157 | 213 | 2997 | Estate |
| LEXUS SC Convertible (UZZ40_) Fitting Position Rear Axle | 2001-05 - 2010-07 | 210 | 286 | 4293 | Convertible |
24.0112-0703.1

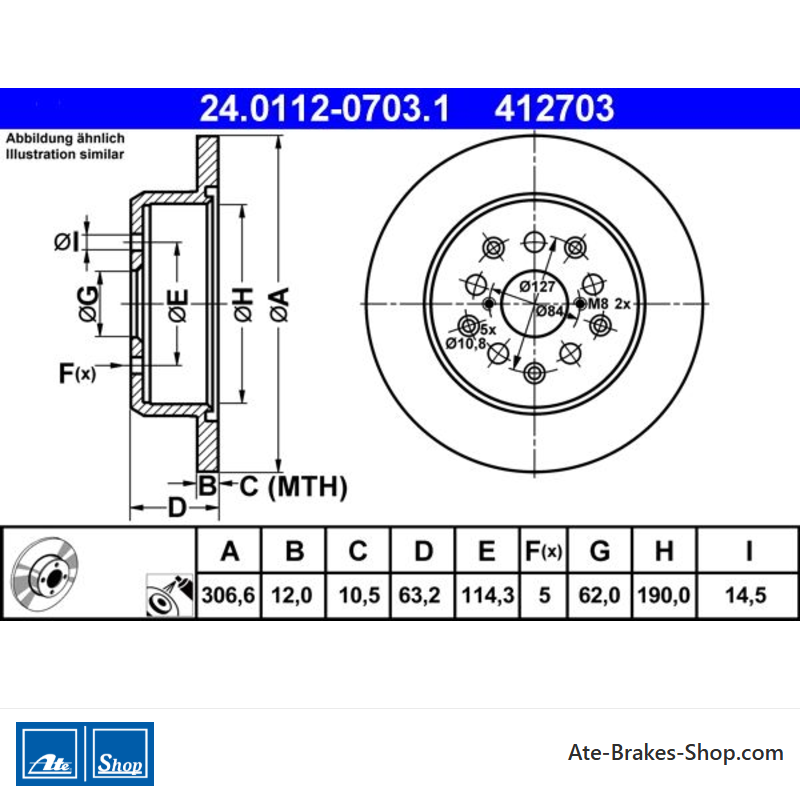

Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Lexus
- Handelsnummer
- 412703
- Land van Herkomst
- China
- Hoogte
- 63,2
- Buitendiameter [mm]
- 306,6
- Remschijfdikte [mm]
- 12,0
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 114,3
- Centreringsdiameter [mm]
- 62,0
- Binnendiameter [mm]
- 190,0
- Bordiameter [mm]
- 14,5
- Minimale dikte [mm]
- 10,5
Specifieke referenties
- ean13
- 4006633293105
- MPN
- 2401120703102
ATE 24.0112-0703.1
(240112-07031)
- Buitendiameter [mm]: 306,6
- Binnendiameter [mm]: 190,0
- Remschijfdikte [mm]: 12,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 412703
