ATE Originele 2-delige remschijf (24011301781) voor Seat, Volkswagen (VW)
€ 68,97
(incl. btw)
€ 57,00 belastingexcl.
Onderdeelnummer:
ATE 24.0113-0178.1
(240113-01781)
- Buitendiameter [mm]: 255,6
- Binnendiameter [mm]: 135,5
- Remschijfdikte [mm]: 12,9
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 413178
Logistieke informatie:
- Ean Code: 4006633106030
- Gewicht: 8.79kg
Specification of ATE 24.0113-0178.1 / 240113-01781 / 24011301781:
| OE Number | Reference info |
| SEAT 357 615 301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| SEAT 357615301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 357 615 301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| VAG 357615301 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| SEAT TOLEDO I (1L2) Vehicle Identification Number (VIN) to 1L-TR016999 Fitting Position Front Axle | 1995-08 - 1999-03 | 66 | 90 | 1896 | Hatchback |
| SEAT TOLEDO I (1L2) Vehicle Identification Number (VIN) to 1L-TR016999 Fitting Position Front Axle | 1996-11 - 1999-03 | 81 | 110 | 1896 | Hatchback |
| SEAT INCA (6K9) Vehicle Identification Number (VIN) to 9K-T-011100 Fitting Position Front Axle | 1995-11 - 2003-06 | 44 | 60 | 1389 | Estate Van |
| SEAT INCA (6K9) Fitting Position Front Axle | 2000-04 - 2003-06 | 55 | 75 | 1390 | Estate Van |
| SEAT INCA (6K9) Vehicle Identification Number (VIN) to 9K-T-011100 Fitting Position Front Axle | 1995-11 - 1998-05 | 55 | 75 | 1595 | Estate Van |
| SEAT INCA (6K9) Vehicle Identification Number (VIN) to 9K-T-011100 Fitting Position Front Axle | 1997-06 - 2000-09 | 55 | 75 | 1598 | Estate Van |
| SEAT INCA (6K9) Vehicle Identification Number (VIN) to 9K-T-011100 Fitting Position Front Axle | 1995-11 - 2003-06 | 47 | 64 | 1896 | Estate Van |
| SEAT INCA (6K9) Vehicle Identification Number (VIN) to 9K-T-011100 Fitting Position Front Axle | 1995-11 - 2003-06 | 47 | 64 | 1896 | Estate Van |
| SEAT INCA (6K9) Vehicle Identification Number (VIN) to 9K-T-011100 Fitting Position Front Axle | 1996-09 - 2003-06 | 66 | 90 | 1896 | Estate Van |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-T-514500 Fitting Position Front Axle | 1995-11 - 2003-06 | 44 | 60 | 1390 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-T-514500 Fitting Position Front Axle | 2000-08 - 2004-01 | 55 | 75 | 1390 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-T-514500 Fitting Position Front Axle | 1995-11 - 1997-05 | 55 | 75 | 1595 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-T-514500 Fitting Position Front Axle | 1997-06 - 2000-09 | 55 | 75 | 1598 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-T-514500 Fitting Position Front Axle | 1995-11 - 2004-01 | 47 | 64 | 1896 | MPV |
| VW CADDY II MPV (9K9B) Vehicle Identification Number (VIN) to 9K-T-514500 Fitting Position Front Axle | 1995-11 - 2004-01 | 47 | 64 | 1896 | MPV |
| VW GOLF III (1H1) Braking/Driving Dynamics for vehicles without ABS Braking/Driving Dynamics for vehicles without ESP Fitting Position Front Axle | 1995-07 - 1997-08 | 74 | 101 | 1595 | Hatchback |
| VW GOLF III (1H1) Vehicle Identification Number (VIN) from 1H-S-246941 Transmission Type Automatic Transmission Braking/Driving Dynamics for vehicles without ABS Braking/Driving Dynamics for vehicles without ESP Fitting Position Front Axle | 1991-11 - 1997-08 | 55 | 75 | 1781 | Hatchback |
| VW GOLF III (1H1) Vehicle Identification Number (VIN) from 1H-S-246941 Transmission Type Automatic Transmission Braking/Driving Dynamics for vehicles without ABS Braking/Driving Dynamics for vehicles without ESP Fitting Position Front Axle | 1991-11 - 1997-08 | 66 | 90 | 1781 | Hatchback |
| VW GOLF III (1H1) Vehicle Identification Number (VIN) from 1H-S-089451 Braking/Driving Dynamics for vehicles without ESP Fitting Position Front Axle | 1993-01 - 1997-08 | 66 | 90 | 1781 | Hatchback |
| VW GOLF III (1H1) Construction Year from 199310 Construction Year to 199604 Braking/Driving Dynamics for vehicles without ESP Fitting Position Front Axle | 1993-08 - 1997-12 | 66 | 90 | 1896 | Hatchback |
| VW GOLF III (1H1) Construction Year to 199604 Braking/Driving Dynamics for vehicles without ESP Fitting Position Front Axle | 1995-08 - 1997-12 | 66 | 90 | 1896 | Hatchback |
| VW GOLF III Cabriolet (1E7) Vehicle Identification Number (VIN) to 1E-T-030000 Fitting Position Front Axle | 1994-10 - 1998-02 | 74 | 101 | 1595 | Convertible |
| VW GOLF III Cabriolet (1E7) Construction Year from 199309 Vehicle Identification Number (VIN) to 1E-T-030000 Fitting Position Front Axle | 1993-07 - 1998-05 | 55 | 75 | 1781 | Convertible |
| VW GOLF III Cabriolet (1E7) Construction Year from 199309 Vehicle Identification Number (VIN) to 1E-T-030000 Fitting Position Front Axle | 1993-07 - 1998-05 | 66 | 90 | 1781 | Convertible |
| VW GOLF III Cabriolet (1E7) Construction Year from 199309 Vehicle Identification Number (VIN) to 1E-T-030000 Fitting Position Front Axle | 1993-07 - 1998-05 | 85 | 115 | 1984 | Convertible |
| VW GOLF III Cabriolet (1E7) Vehicle Identification Number (VIN) to 1E-T-030000 Fitting Position Front Axle | 1995-08 - 1998-05 | 66 | 90 | 1896 | Convertible |
| VW GOLF III Variant (1H5) Construction Year to 199604 Fitting Position Front Axle | 1994-07 - 1999-04 | 74 | 101 | 1595 | Estate |
| VW GOLF III Variant (1H5) Construction Year to 199604 Fitting Position Front Axle | 1993-07 - 1999-04 | 55 | 75 | 1781 | Estate |
| VW GOLF III Variant (1H5) Construction Year from 199605 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1993-07 - 1999-04 | 55 | 75 | 1781 | Estate |
| VW GOLF III Variant (1H5) Construction Year to 199604 Fitting Position Front Axle | 1993-07 - 1999-04 | 66 | 90 | 1781 | Estate |
| VW GOLF III Variant (1H5) Construction Year from 199605 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1993-07 - 1999-04 | 66 | 90 | 1781 | Estate |
| VW GOLF III Variant (1H5) Vehicle Identification Number (VIN) from 1H-SW369001 Vehicle Identification Number (VIN) to 1H-TD365209 Fitting Position Front Axle | 1994-10 - 1999-04 | 66 | 90 | 1781 | Estate |
| VW GOLF III Variant (1H5) Construction Year to 199604 Fitting Position Front Axle | 1995-07 - 1999-04 | 47 | 64 | 1896 | Estate |
| VW GOLF III Variant (1H5) Construction Year from 199605 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1995-07 - 1999-04 | 47 | 64 | 1896 | Estate |
| VW GOLF III Variant (1H5) Construction Year from 199605 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1993-07 - 1999-04 | 47 | 64 | 1896 | Estate |
| VW GOLF III Variant (1H5) Construction Year to 199604 Fitting Position Front Axle | 1993-07 - 1999-04 | 47 | 64 | 1896 | Estate |
| VW GOLF III Variant (1H5) Construction Year from 199605 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1993-07 - 1999-04 | 55 | 75 | 1896 | Estate |
| VW GOLF III Variant (1H5) Construction Year to 199604 Fitting Position Front Axle | 1993-07 - 1999-04 | 55 | 75 | 1896 | Estate |
| VW GOLF III Variant (1H5) Construction Year to 199604 Fitting Position Front Axle | 1994-03 - 1999-04 | 66 | 90 | 1896 | Estate |
| VW GOLF III Variant (1H5) Construction Year from 199605 Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1994-03 - 1999-04 | 66 | 90 | 1896 | Estate |
| VW GOLF IV Cabriolet (1E7) Vehicle Identification Number (VIN) to 1E-T-030000 Fitting Position Front Axle | 1998-06 - 2002-06 | 74 | 100 | 1595 | Convertible |
| VW GOLF IV Cabriolet (1E7) Vehicle Identification Number (VIN) to 1E-T-030000 Fitting Position Front Axle | 1998-06 - 2002-06 | 55 | 75 | 1781 | Convertible |
| VW GOLF IV Cabriolet (1E7) Vehicle Identification Number (VIN) to 1E-T-030000 Fitting Position Front Axle | 1998-06 - 2002-06 | 66 | 90 | 1781 | Convertible |
| VW GOLF IV Cabriolet (1E7) Vehicle Identification Number (VIN) to 1E-T-030000 Fitting Position Front Axle | 1998-06 - 2002-06 | 85 | 115 | 1984 | Convertible |
| VW GOLF IV Cabriolet (1E7) Vehicle Identification Number (VIN) to 1E-T-030000 Fitting Position Front Axle | 1998-06 - 2002-06 | 66 | 90 | 1896 | Convertible |
| VW PASSAT B3/B4 (3A2, 35I) Fitting Position Front Axle | 1988-04 - 1989-07 | 53 | 72 | 1595 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Fitting Position Front Axle | 1988-04 - 1992-07 | 55 | 75 | 1595 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Vehicle Identification Number (VIN) to 3A-T-130756 Fitting Position Front Axle | 1994-10 - 1996-08 | 74 | 101 | 1595 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year to 199310 Fitting Position Front Axle | 1990-08 - 1996-08 | 55 | 75 | 1781 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year from 199310 Fitting Position Front Axle | 1990-08 - 1996-08 | 55 | 75 | 1781 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year from 198804 Construction Year to 199310 Fitting Position Front Axle | 1988-02 - 1996-08 | 66 | 90 | 1781 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year from 199310 Fitting Position Front Axle | 1988-02 - 1996-08 | 66 | 90 | 1781 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Fitting Position Front Axle | 1988-08 - 1993-09 | 59 | 80 | 1588 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Fitting Position Front Axle | 1989-05 - 1993-10 | 50 | 68 | 1896 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year from 199310 Fitting Position Front Axle | 1991-03 - 1996-08 | 55 | 75 | 1896 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Construction Year to 199310 Fitting Position Front Axle | 1991-03 - 1996-08 | 55 | 75 | 1896 | Saloon |
| VW PASSAT B3/B4 (3A2, 35I) Vehicle Identification Number (VIN) to 3A-S-300000 Fitting Position Front Axle | 1993-10 - 1996-08 | 66 | 90 | 1896 | Saloon |
| VW PASSAT B3/B4 Variant (3A5, 35I) Fitting Position Front Axle | 1988-04 - 1989-07 | 53 | 72 | 1595 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Fitting Position Front Axle | 1988-04 - 1991-07 | 55 | 75 | 1595 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year from 199410 Vehicle Identification Number (VIN) to 3A-T-130756 Fitting Position Front Axle | 1994-07 - 1995-12 | 74 | 101 | 1595 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year to 199310 Fitting Position Front Axle | 1990-08 - 1997-05 | 55 | 75 | 1781 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year from 199310 Construction Year to 199612 Fitting Position Front Axle | 1990-08 - 1997-05 | 55 | 75 | 1781 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year from 198804 Construction Year to 199310 Fitting Position Front Axle | 1988-02 - 1997-05 | 66 | 90 | 1781 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year from 199310 Construction Year to 199612 Fitting Position Front Axle | 1988-02 - 1997-05 | 66 | 90 | 1781 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Fitting Position Front Axle | 1988-08 - 1993-10 | 59 | 80 | 1588 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Fitting Position Front Axle | 1989-05 - 1993-10 | 50 | 68 | 1896 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year from 199310 Construction Year to 199612 Fitting Position Front Axle | 1991-03 - 1997-05 | 55 | 75 | 1896 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Construction Year to 199310 Fitting Position Front Axle | 1991-03 - 1997-05 | 55 | 75 | 1896 | Estate |
| VW PASSAT B3/B4 Variant (3A5, 35I) Vehicle Identification Number (VIN) to 3A-S-300000 Fitting Position Front Axle | 1993-10 - 1997-05 | 66 | 90 | 1896 | Estate |
| VW VENTO (1H2) Vehicle Identification Number (VIN) from 1H-S-430001 Transmission Type Automatic Transmission Fitting Position Front Axle | 1992-09 - 1998-09 | 55 | 75 | 1598 | Saloon |
| VW VENTO (1H2) Fitting Position Front Axle | 1994-10 - 1998-09 | 74 | 101 | 1595 | Saloon |
| VW VENTO (1H2) Construction Year from 199201 Transmission Type Automatic Transmission Fitting Position Front Axle | 1991-11 - 1998-09 | 55 | 75 | 1781 | Saloon |
| VW VENTO (1H2) Vehicle Identification Number (VIN) from 1H-S-430001 Fitting Position Front Axle | 1991-11 - 1998-09 | 66 | 90 | 1781 | Saloon |
| VW VENTO (1H2) Vehicle Identification Number (VIN) from 1H-S-430001 Fitting Position Front Axle | 1991-11 - 1998-09 | 55 | 75 | 1896 | Saloon |
| VW VENTO (1H2) Braking/Driving Dynamics for vehicles without ABS Fitting Position Front Axle | 1993-09 - 1998-09 | 66 | 90 | 1896 | Saloon |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-T-514500 Fitting Position Front Axle | 1995-11 - 2004-01 | 44 | 60 | 1390 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-T-514500 Fitting Position Front Axle | 2000-08 - 2004-01 | 55 | 75 | 1390 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-T-514500 Fitting Position Front Axle | 1995-11 - 1997-05 | 55 | 75 | 1595 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-T-514500 Fitting Position Front Axle | 1995-11 - 2000-09 | 55 | 75 | 1598 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-T-514500 Fitting Position Front Axle | 1995-11 - 2004-01 | 47 | 64 | 1896 | Box Body/MPV |
| VW CADDY II Box Body/MPV (9K9A) Vehicle Identification Number (VIN) to 9K-T-514500 Fitting Position Front Axle | 1995-11 - 2004-01 | 47 | 64 | 1896 | Box Body/MPV |

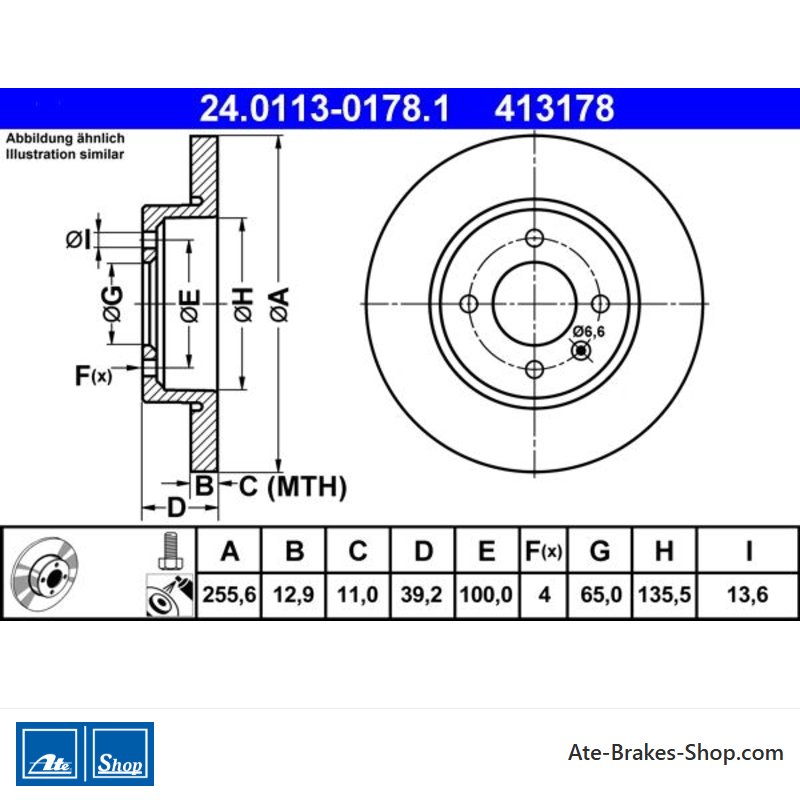

24.0113-0178.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- Volkswagen (VW)
Zetel - Handelsnummer
- 413178
- Land van Herkomst
- Italië
- Aanvullende informatie
- met bouten/schroeven
- Hoogte
- 39,2
- Buitendiameter [mm]
- 255,6
- Remschijfdikte [mm]
- 12,9
- Type remschijf
- Solide
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 4
- Diameter van het schroefgat [mm]
- 100,0
- Centreringsdiameter [mm]
- 65,0
- Binnendiameter [mm]
- 135,5
- Bordiameter [mm]
- 13,6
- Minimale dikte [mm]
- 11,0
Specifieke referenties
- ean13
- 4006633106030
- MPN
- 2401130178101
ATE 24.0113-0178.1
(240113-01781)
- Buitendiameter [mm]: 255,6
- Binnendiameter [mm]: 135,5
- Remschijfdikte [mm]: 12,9
- Aantal boutgaten: 4
- 2 stukken remschijf
- Handelsnummer: 413178
