ATE Originele 2-delige remschijf (24011301941) voor Ford, Seat, Volkswagen (VW)
search
  • ATE Originele 2-delige remschijf (24011301941) voor Ford, Seat, Volkswagen (VW)
  • ATE Originele 2-delige remschijf (24011301941) voor Ford, Seat, Volkswagen (VW)
  • ATE Originele 2-delige remschijf (24011301941) voor Ford, Seat, Volkswagen (VW)

ATE Originele 2-delige remschijf (24011301941) voor Ford, Seat, Volkswagen (VW)

€ 98,01 (incl. btw)

€ 81,00 belastingexcl.

Onderdeelnummer:

ATE 24.0113-0194.1
(240113-01941)

  • Buitendiameter [mm]: 294,0
  • Binnendiameter [mm]: 165,0
  • Remschijfdikte [mm]: 13,5
  • Aantal bolt holes: 5
  • 2 stukken remschijf
  • Handelsnummer: 413194
Logistieke informatie:
68,2Klik hier voor gedetailleerde informatie.
  • Ean Code: 4006633071970
  • Gewicht: 11.53kg
Aantal

Specification of ATE 24.0113-0194.1 / 240113-01941 / 24011301941:

OE NumberReference info
FORD 1140278Please observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
SEAT 7D0 615 601 CPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
SEAT 7D0615601CPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAG 7D0 615 601 APlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAG 7D0615601APlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAG 7D0 615 601 CPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)
VAG 7D0615601CPlease observe the vehicle manufacturer's specifications.
Always compare the old and new part (especially the OE number)

ModelModel YearkWHPCCType
FORD GALAXY I (WGR)

Construction Year to 200604

Fitting Position Rear Axle		2000-04 - 2006-051502042792MPV
SEAT ALHAMBRA (7V8, 7V9)

Vehicle Identification Number (VIN) from 7M-2-500001

Fitting Position Rear Axle		1997-10 - 2010-031101501781MPV
SEAT ALHAMBRA (7V8, 7V9)

Fitting Position Rear Axle		2000-06 - 2010-031502042792MPV
SEAT ALHAMBRA (7V8, 7V9)

Construction Year from 200102

Fitting Position Rear Axle		2000-06 - 2010-031502042792MPV
SEAT ALHAMBRA (7V8, 7V9)

Vehicle Identification Number (VIN) from 7M-2-500001

Fitting Position Rear Axle		2000-06 - 2010-03851151896MPV
SEAT ALHAMBRA (7V8, 7V9)

Construction Year from 200102

Fitting Position Rear Axle		2000-06 - 2010-03851151896MPV
SEAT ALHAMBRA (7V8, 7V9)

Fitting Position Rear Axle		2005-05 - 2007-051101501896MPV
SEAT ALHAMBRA VAN (7V8, 7V9)

Fitting Position Rear Axle		2002-06 - 2008-05851161896Box Body/MPV
VW SHARAN (7M8, 7M9, 7M6)

Vehicle Identification Number (VIN) from 7M-2-000001

Fitting Position Rear Axle		1997-09 - 2010-031101501781MPV
VW SHARAN (7M8, 7M9, 7M6)

Fitting Position Rear Axle		2000-04 - 2010-031502042792MPV
VW SHARAN (7M8, 7M9, 7M6)

Fitting Position Rear Axle		2000-04 - 2010-031502042792MPV
VW SHARAN (7M8, 7M9, 7M6)

Construction Year from 200005

Fitting Position Rear Axle		2000-03 - 2010-03851151896MPV
VW SHARAN (7M8, 7M9, 7M6)

Fitting Position Rear Axle		2005-06 - 2010-031101501896MPV
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1990-07 - 2003-0462841968Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1990-11 - 2003-04811102461Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1992-11 - 2001-11811102461Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1996-08 - 2003-04851152461Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1996-08 - 2003-04851152461Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1996-05 - 2000-051031402792Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

for PR number 2E3

Fitting Position Rear Axle		2000-06 - 2003-041502042792Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1992-10 - 2003-0450681896Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

for PR number 2E3

Fitting Position Rear Axle		1997-08 - 2003-0455752370Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1990-07 - 1998-0457782370Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1992-10 - 1998-0957782370Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

for PR number 2E3

Fitting Position Rear Axle		1998-12 - 2003-0465882461Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1995-09 - 2003-04751022461Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1995-09 - 2003-04751022461Van
VW TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH, 70J)

for PR number 2E3

Fitting Position Rear Axle		2000-09 - 2003-041111512461Van
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1990-09 - 2003-0462841968Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1990-09 - 2003-06811102461Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1992-08 - 2003-04811102461Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1996-08 - 2003-04851152461Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1996-07 - 2003-04851152461Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1995-11 - 2000-041031402792Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

for PR number 2E3

Fitting Position Rear Axle		2000-04 - 2003-041502042792Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1992-10 - 2003-0450681896Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

for PR number 2E3

Fitting Position Rear Axle		1997-08 - 2003-0455752370Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1990-09 - 1998-0457782370Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1992-10 - 1998-0957782370Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

for PR number 2E3

Fitting Position Rear Axle		1998-05 - 2003-0465882461Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1995-09 - 2003-04751022461Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1996-01 - 2003-04751022461Bus
VW TRANSPORTER / MULTIVAN T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K,

for PR number 2E3

Fitting Position Rear Axle		1998-05 - 2003-041111512461Bus
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1990-07 - 2003-0462841968Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1990-11 - 2003-04811102461Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1992-11 - 2001-11811102461Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1996-08 - 2003-04851152461Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1996-08 - 2003-04851152461Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1992-10 - 2003-0450681896Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

for PR number 2E3

Fitting Position Rear Axle		1997-08 - 2003-0455752370Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1990-09 - 1998-0457782370Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1992-10 - 1998-0957782370Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

for PR number 2E3

Fitting Position Rear Axle		1998-05 - 2003-0465882461Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

Construction Year from 199705

for PR number 2E3

Fitting Position Rear Axle		1995-09 - 2003-04751022461Platform/Chassis
VW TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D

for PR number 2E3

Fitting Position Rear Axle		1998-05 - 2003-04751022461Platform/Chassis

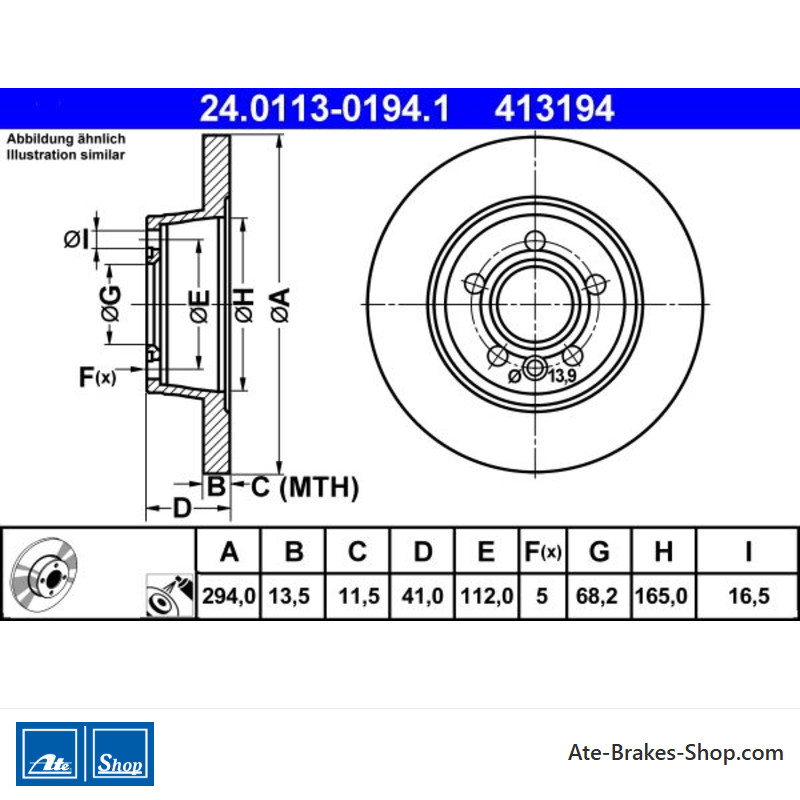

24.0113-0194.1

Datasheet

Artikelstatus
Bestelbaar
Automerk
Ford
Volkswagen (VW)
Zetel
Handelsnummer
413194
Land van Herkomst
Tsjechië
Hoogte
41,0
Buitendiameter [mm]
294,0
Remschijfdikte [mm]
13,5
Type remschijf
Solide
Oppervlakte
Gecoate
Aantal boltgaten
5
Diameter van het schroefgat [mm]
112,0
Centreringsdiameter [mm]
68,2
Binnendiameter [mm]
165,0
Bordiameter [mm]
16,5
Minimale dikte [mm]
11,5

Specifieke referenties

ean13
4006633071970
MPN
2401130194102
