ATE Originele 2-delige remschijf (24011901121) voor BMW
€ 123,42
(incl. btw)
€ 102,00 belastingexcl.
Onderdeelnummer:
ATE 24.0119-0112.1
(240119-01121)
- Buitendiameter [mm]: 294,0
- Binnendiameter [mm]: 160,8
- Remschijfdikte [mm]: 19,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 419112
Logistieke informatie:
- Ean Code: 4006633225113
- Gewicht: 13.27kg

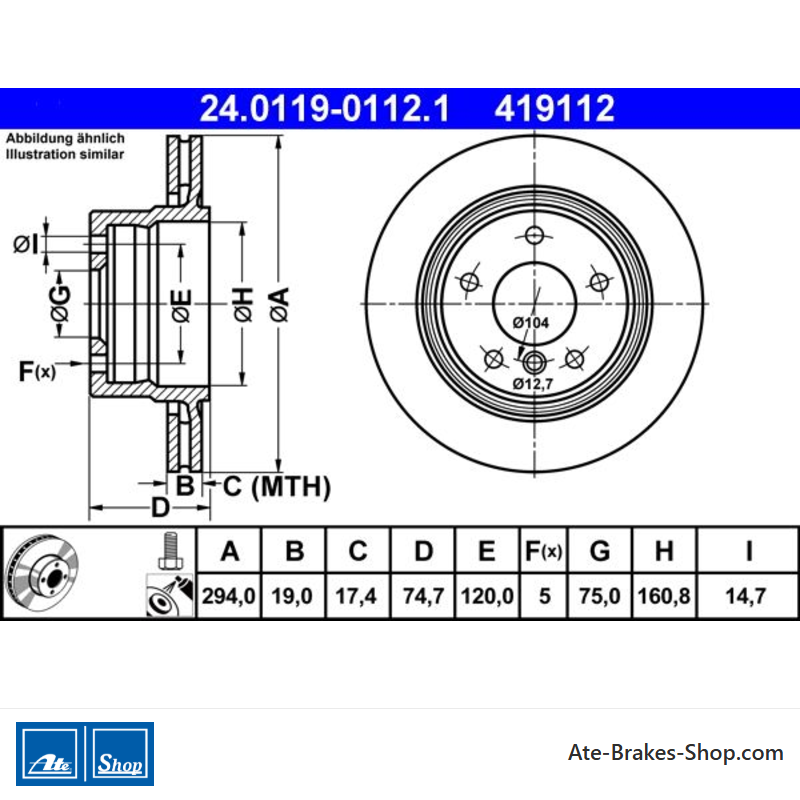

Specification of ATE 24.0119-0112.1 / 240119-01121 / 24011901121:
| OE Number | Reference info |
| BMW 34 21 6 754 137 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34216754137 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34 21 6 766 219 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34216766219 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34 21 6 794 303 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| BMW 34216794303 | Please observe the vehicle manufacturer's specifications. Always compare the old and new part (especially the OE number) |
| Model | Model Year | kW | HP | CC | Type |
| BMW Z4 Roadster (E85) Construction Year from 200601 Construction Year to 200812 Fitting Position Rear Axle | 2005-09 - 2009-02 | 155 | 211 | 2497 | Convertible |
| BMW Z4 Roadster (E85) Fitting Position Rear Axle | 2006-01 - 2008-08 | 160 | 218 | 2497 | Convertible |
| BMW Z4 Roadster (E85) Fitting Position Rear Axle | 2002-12 - 2005-12 | 170 | 231 | 2979 | Convertible |
| BMW Z4 Roadster (E85) Fitting Position Rear Axle | 2006-01 - 2008-08 | 195 | 265 | 2996 | Convertible |
| BMW Z4 Coupe (E86) Fitting Position Rear Axle | 2006-04 - 2008-08 | 195 | 265 | 2996 | Coupe |
24.0119-0112.1
Datasheet
- Artikelstatus
- Bestelbaar
- Automerk
- BMW
- Handelsnummer
- 419112
- Land van Herkomst
- Duitsland
- Aanvullende informatie
- met bouten/schroeven
- Hoogte
- 74,7
- Buitendiameter [mm]
- 294,0
- Remschijfdikte [mm]
- 19,0
- Type remschijf
- Geventileerd
- Verwerking
- Hoogkoolstof
- Oppervlakte
- Gecoate
- Aantal boltgaten
- 5
- Diameter van het schroefgat [mm]
- 120,0
- Centreringsdiameter [mm]
- 75,0
- Binnendiameter [mm]
- 160,8
- Bordiameter [mm]
- 14,7
- Minimale dikte [mm]
- 17,4
Specifieke referenties
- ean13
- 4006633225113
- MPN
- 2401190112102
ATE 24.0119-0112.1
(240119-01121)
- Buitendiameter [mm]: 294,0
- Binnendiameter [mm]: 160,8
- Remschijfdikte [mm]: 19,0
- Aantal bolt holes: 5
- 2 stukken remschijf
- Handelsnummer: 419112
